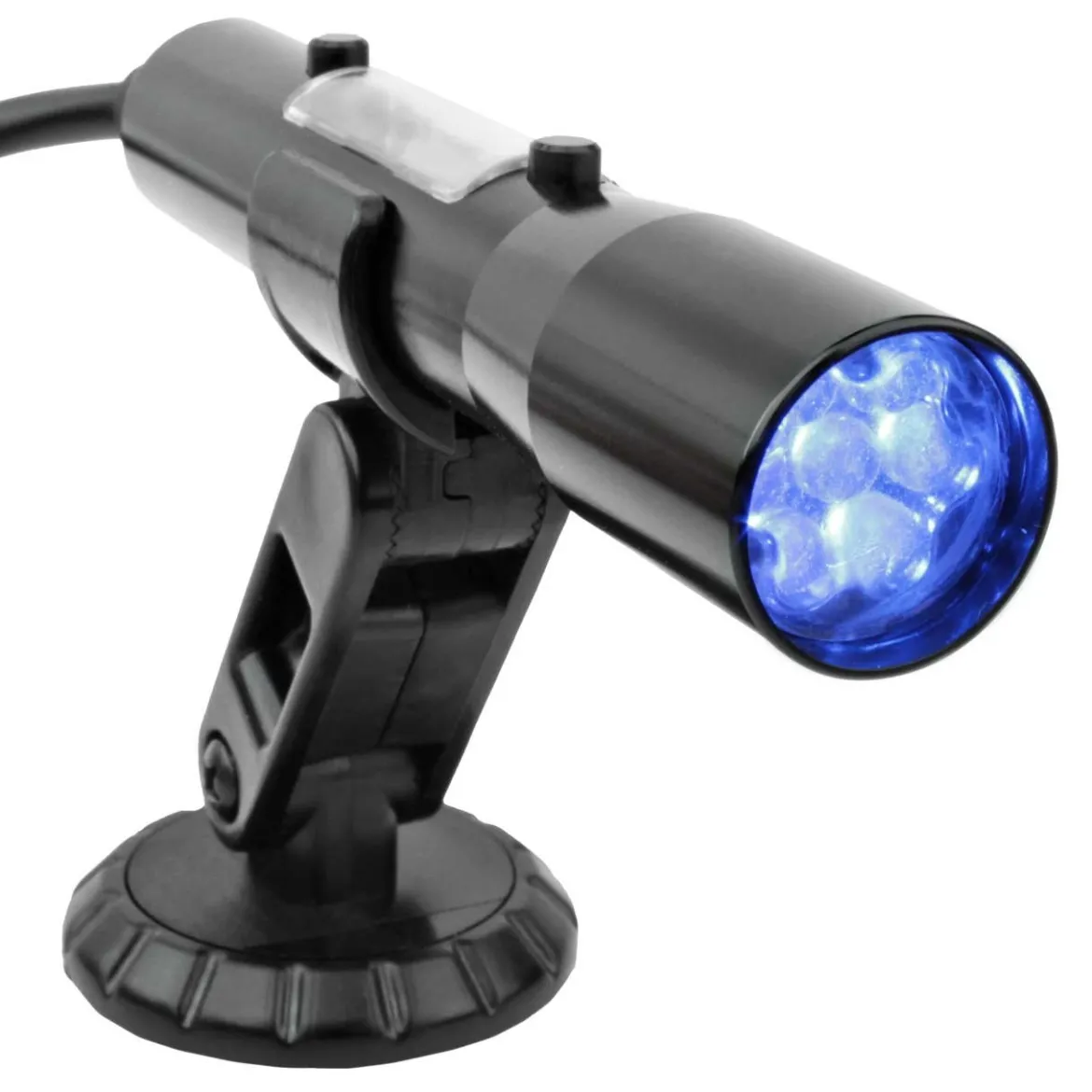

Speedhut Blue LEDs Black Tube SST-MAX OBDII Shift Light (A-264)

The Speedhut Blue LEDs Black Tube SST-MAX OBDII Shift Light (A-264) is an advanced tool engineered for drivers of 2008 and newer vehicles utilizing the CAN (J1979) OBDII protocol within the USA, Canada, and the UK. This device employs intelligent Smart-Shift Technology™ to directly communicate with your vehicle’s Engine Control Unit (ECU), providing real-time monitoring of both your current gear position and engine speed (RPM). By precisely tracking these parameters, the SST-MAX shift light illuminates at the optimal moment for gear changes, helping you maximize your vehicle’s performance in various driving situations. Installation is remarkably simple, thanks to its direct plug-and-play design that connects seamlessly to your vehicle’s 16-pin OBDII Data Link Connector, eliminating the complexities of traditional wiring. Please note that the SST-MAX is designed to function as a standalone OBDII device and may not operate correctly if other OBDII devices are connected simultaneously.

KEY FEATURES AND BENEFITS:

• Smart-Shift Technology™: Provides precise shift indications by monitoring both gear position and RPM in real-time through direct ECU communication.
• Customizable Shift Points: Allows programming of up to 10 distinct RPM shift points, tailored to each specific gear.
• Broad RPM Compatibility: Functions effectively across a wide engine speed range of 0 to 10,000 RPM.
• Effortless OBDII Installation: Features a direct plug-and-play connection to the vehicle’s OBDII port, ensuring a quick and easy setup without additional wiring.
• High-Visibility LED Alerts: Equipped with 7 super bright blue LEDs that effectively capture your attention when a shift is needed.
• Adjustable Brightness: Offers 5 selectable LED brightness levels, including an option to turn the LEDs off when not required.
• User-Friendly Menu: Incorporates a 3-segment LED display to facilitate straightforward setup and programming of the shift light’s various functions.
• Gear-Specific Peak Recall: Retains and can display the highest RPM achieved for each individual gear.
• Robust and Adjustable Design: Features a durable billet aluminum housing coupled with an adjustable mounting bracket for versatile placement within your vehicle.
• Extended Reach: Includes an 8-foot cable with the integrated OBDII connector, providing flexibility in mounting location.
• Lasting Assurance: Backed by a lifetime warranty, reflecting the product’s quality and reliability.

SPECIFICATIONS:

• Compatibility: 2008 and newer vehicles utilizing the CAN (J1979) OBDII protocol (USA, Canada, UK).
• RPM Range: 0 – 10,000 RPM
• LED Color: Blue
• Number of LEDs: 7
• Brightness Levels: 5 (including OFF)
• Cable Length: 8 feet
• Connector Type: OBDII (16-pin)
• Housing Material: Billet Aluminum
• Mounting: Adjustable Bracket
• Included in Purchase: SST-MAX Shift Light unit with integrated OBDII connector and cable, Adjustable Mounting Bracket.

HOW TO USE:

1. Connect: Plug the OBDII connector of the SST-MAX shift light directly into your vehicle’s 16-pin OBDII Data Link Connector. This port is typically located under the dashboard on the driver’s side.
2. Mount: Choose a visible location within your vehicle to mount the shift light using the provided adjustable bracket. Ensure the LEDs are easily within your line of sight while driving.
3. Power On: Once connected, the shift light will power on when you start your vehicle.
4. Enter Setup Mode: Refer to the product manual for the specific button sequence to enter the setup menu. This usually involves pressing and holding one or more of the buttons on the device. The 3-segment LED display will guide you through the menu options.
5. Set Number of Gears: Navigate the menu to set the number of gears your vehicle has.
6. Program Shift Points: For each gear, you will be prompted to set the desired RPM at which the shift light should activate. This is typically done by accelerating to the desired RPM in each gear and pressing a button to save that point.
7. Adjust Brightness (Optional): You can adjust the brightness of the LEDs to your preference within the setup menu.
8. Enable Peak Recall (Optional): You may have the option to enable the peak RPM recall feature for each gear.
9. Exit Setup Mode: Follow the instructions in the manual to exit the setup menu. Your settings will be saved.
10. Operation: During driving, the bright blue LEDs will illuminate when your engine RPM reaches the programmed shift point for the current gear, indicating the optimal time to shift.

BENEFITS OF USING THE SPEEDHUT BLUE LEDS BLACK TUBE SST-MAX OBDII SHIFT LIGHT (A-264):

• Improved Shifting Accuracy: By providing a clear visual cue at the precise moment to shift, the device helps you avoid premature or delayed gear changes, leading to more efficient power delivery.
• Enhanced Performance: Optimal shifting translates to better acceleration and overall vehicle performance.
• Protection Against Over-Revving: The shift light helps prevent exceeding your engine’s safe RPM limits, potentially prolonging engine life.
• Simplified Installation: The direct OBDII plug-and-play design eliminates the need for complex wiring, making installation quick and easy for most users.
• Customizable to Your Vehicle: The ability to set individual shift points for each gear allows you to tailor the shift light’s behavior to your specific vehicle and driving style.
• Easy Setup and Monitoring: The 3-segment LED display makes programming straightforward, and the bright LEDs ensure the shift cues are easily noticed while driving.
• Durable and Reliable: The billet aluminum housing provides a robust build, and the lifetime warranty offers peace of mind regarding the product’s longevity.

FEATURES:

• Utilizes direct communication: with the vehicle’s ECU via the OBDII port for real-time data.
• Programmable shift points: Allows for the programming of up to ten distinct shift points based on the current gear engaged.
• Broad RPM range: Operates effectively across a broad range of engine speeds, from idle up to 10,000 RPM.
• LED brightness settings: Offers five different levels of illumination for the blue LED indicators, including a completely off setting.
• Peak recall mode: Features a dedicated mode to recall the highest RPM achieved in each individual gear.
• Durable construction: Constructed with a robust billet aluminum casing for enhanced durability and a premium appearance.
• Adjustable mounting: Includes an adjustable mounting solution, providing flexibility in positioning the device within the cabin.
