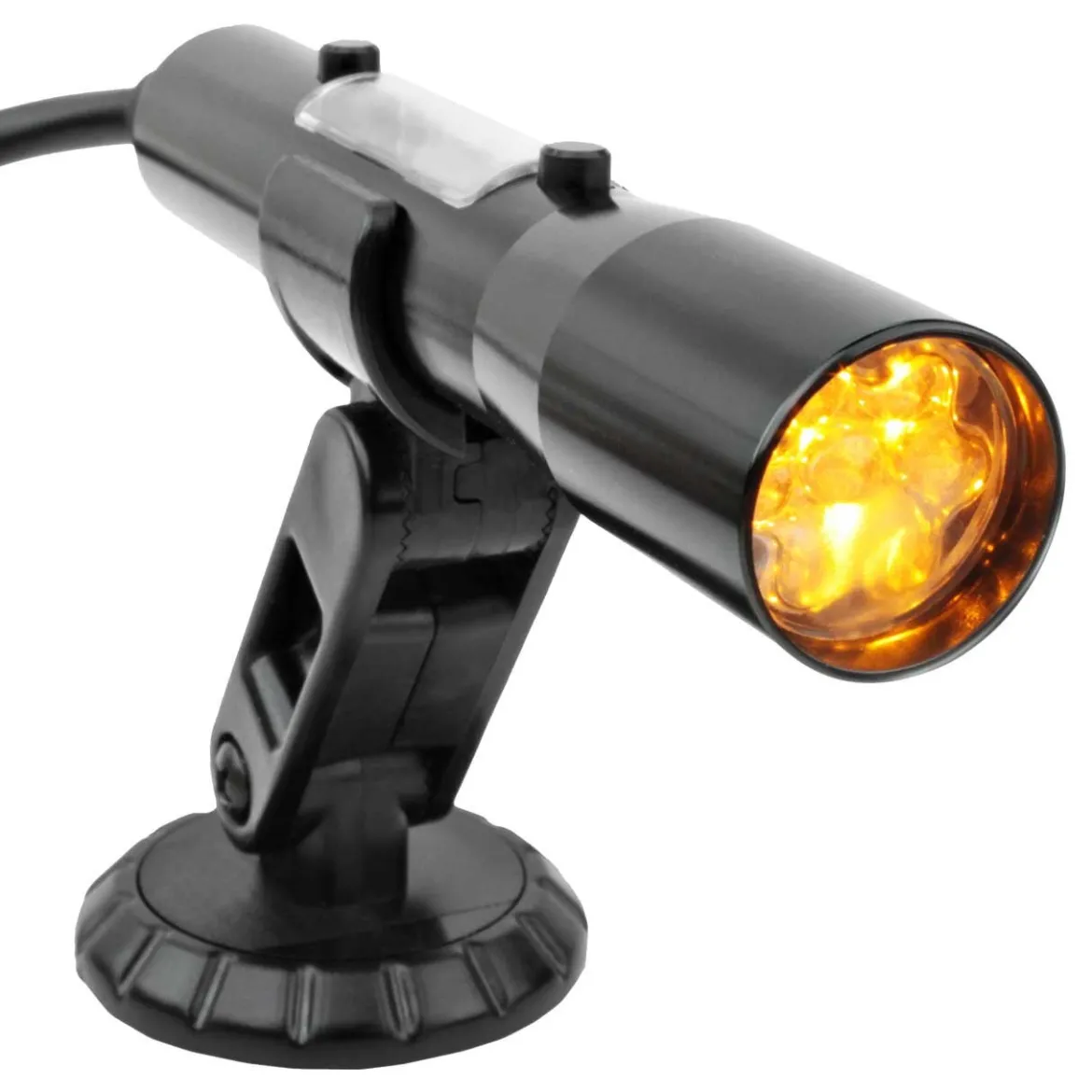

Speedhut Yellow LEDs SST Shift Light w/Black Aluminum Tube (A-156)

The Speedhut Yellow LEDs SST Shift Light w/Black Aluminum Tube (A-156) is engineered to provide drivers with highly accurate and instantaneous feedback for optimal gear changes. Utilizing the innovative, patent-pending Smart-Shift Technology™, this advanced shift light meticulously analyzes up to 100 samples of each spark pulse. This real-time monitoring of your engine’s performance ensures that you can execute the perfect shift in every gear, maximizing your vehicle’s potential and driving efficiency. Designed for broad compatibility and ease of use, the SST Shift Light is a valuable tool for anyone looking to enhance their shifting precision.

KEY FEATURES AND BENEFITS:

• Smart-Shift Technology™: Captures up to 100 samples per spark pulse for precise, real-time engine performance monitoring, leading to accurate shift points in every gear.
• Universal Ignition Compatibility: Works seamlessly with a wide array of ignition systems, including single coil, distributor, distributor-less, and coil-on-plug configurations. It is also compatible with diesel fuel injectors, eliminating the need for additional adapters.
• Adjustable Shift Point: Allows users to set their desired shift point with remarkable accuracy, adjustable in increments of just 10 RPM, providing fine-tuned control over gear changes.
• High Visibility LEDs: Features seven super bright yellow LEDs, ensuring clear and immediate visual cues for optimal shifting, even in bright conditions.
• Durable Construction: Encased in a robust billet aluminum housing with a sleek black finish, offering both durability and a stylish aesthetic.
• Peak RPM Recall: Includes a convenient peak recall function that allows you to review the maximum RPM achieved, providing valuable data on your engine’s performance.
• Customizable Brightness: Offers multiple day and night brightness settings, including an OFF option, allowing you to tailor the display to your preference and driving conditions.
• Simple Operation: Equipped with intuitive push buttons and an easy-to-read LED screen for straightforward menu navigation and setup.
• Calibration Mode: Features a programmable mode that enables users to “dial in” a known RPM for precise calibration of the unit.
• Easy Installation: Utilizes direct wire connections (4 ft. length) for a straightforward installation process.
• Flexible Mounting: Comes with an adjustable mount that can be positioned in various configurations to suit your vehicle’s interior.
• Long-Lasting Reliability: Backed by a lifetime warranty on the gauge electronics, ensuring peace of mind and long-term performance.

SPECIFICATIONS:

• LED Color: Yellow
• RPM Range: 0 – 10,000 RPM
• RPM Adjustment Increment: 10 RPM
• Housing Material: Billet Aluminum
• Housing Color: Black
• Compatibility: 0.5 – 6 Pulses per Revolution Ignition Systems, Diesel Fuel Injectors
• Mounting: Adjustable Multi-Position Mount
• Wire Length: 4 ft.
• Included in Purchase: Speedhut SST Shift Light unit, wiring harness, adjustable mount.

HOW TO USE:

1. Mount the Shift Light: Choose a suitable location within your vehicle where the LEDs are clearly visible while driving. Use the provided adjustable mount to secure the shift light.
2. Connect the Wiring: Connect the power, ground, and signal wires according to the product’s wiring diagram. Typically, the signal wire will connect to a point that provides a RPM-related pulse, such as an ignition coil or fuel injector wire.
3. Power On: Once the wiring is complete, start your vehicle. The shift light should power on.
4. Enter Setup Mode: Press and hold the designated push buttons to enter the setup menu. Refer to the product manual for the specific button combination.
5. Set the Shift Point: Navigate through the menu using the push buttons to locate the shift point setting. Adjust the desired RPM value in 10 RPM increments using the buttons.
6. Adjust Brightness (Optional): Locate the brightness setting in the menu. Adjust the day and night brightness levels to your preference.
7. Calibrate (Optional): If you know a specific engine RPM, use the programmable mode to calibrate the shift light for maximum accuracy. Follow the instructions in the product manual.
8. Set Peak Recall (Optional): Enable or disable the peak RPM recall function as desired.
9. Exit Setup Mode: Once all settings are configured, follow the instructions in the menu to exit the setup mode.
10. Test the Shift Light: While driving, as your engine RPM approaches the set shift point, the yellow LEDs will illuminate, indicating the optimal time to shift gears.

BENEFITS OF USING THE SPEEDHUT YELLOW LEDS SST SHIFT LIGHT W/BLACK ALUMINUM TUBE (A-156):

• Improved Shifting Accuracy: The advanced Smart-Shift Technology ensures precise shift points, leading to smoother and more efficient gear changes.
• Enhanced Vehicle Performance: By shifting at the optimal RPM, you can maximize your vehicle’s acceleration, power delivery, and overall performance.
• Engine Protection: Avoiding over-revving the engine by using a shift light can help prolong its lifespan and prevent potential damage.
• Universal Compatibility: The ability to work with a wide range of ignition systems, including diesel, simplifies installation and makes it suitable for various vehicles.
• Easy Setup and Customization: The user-friendly interface with push buttons and an LED screen allows for quick and easy configuration of shift points and brightness levels.
• Durable and Reliable: The robust billet aluminum housing ensures longevity, and the lifetime warranty on electronics provides added assurance.
• Clear Visual Indication: The bright yellow LEDs offer excellent visibility, ensuring you never miss a crucial shift point.

FEATURES:

• Seven intensely bright yellow light-emitting diodes for immediate shift indication.
• Compatibility across a broad spectrum of ignition types, from basic to advanced systems.
• A specialized programming mode for precise calibration against a known engine speed.
• An integrated, easily readable LED display for straightforward setup and information viewing.
• Functionality with diesel engine fuel injector signals for accurate RPM sensing.
• Highly granular shift point adjustment in precise 10 RPM steps.
• A wide operational range accommodating engines running from 0 to 10,000 revolutions per minute.
• A convenient memory feature to recall the highest engine speed reached.
• Adjustable illumination levels for both daytime and nighttime driving conditions.
• A meticulously machined housing crafted from solid billet aluminum.
• Simple and tactile push-button controls for effortless menu navigation.
• A commitment to quality backed by a lifetime guarantee on the electronic components.
• A versatile mounting solution that allows for numerous positioning options within the vehicle.
