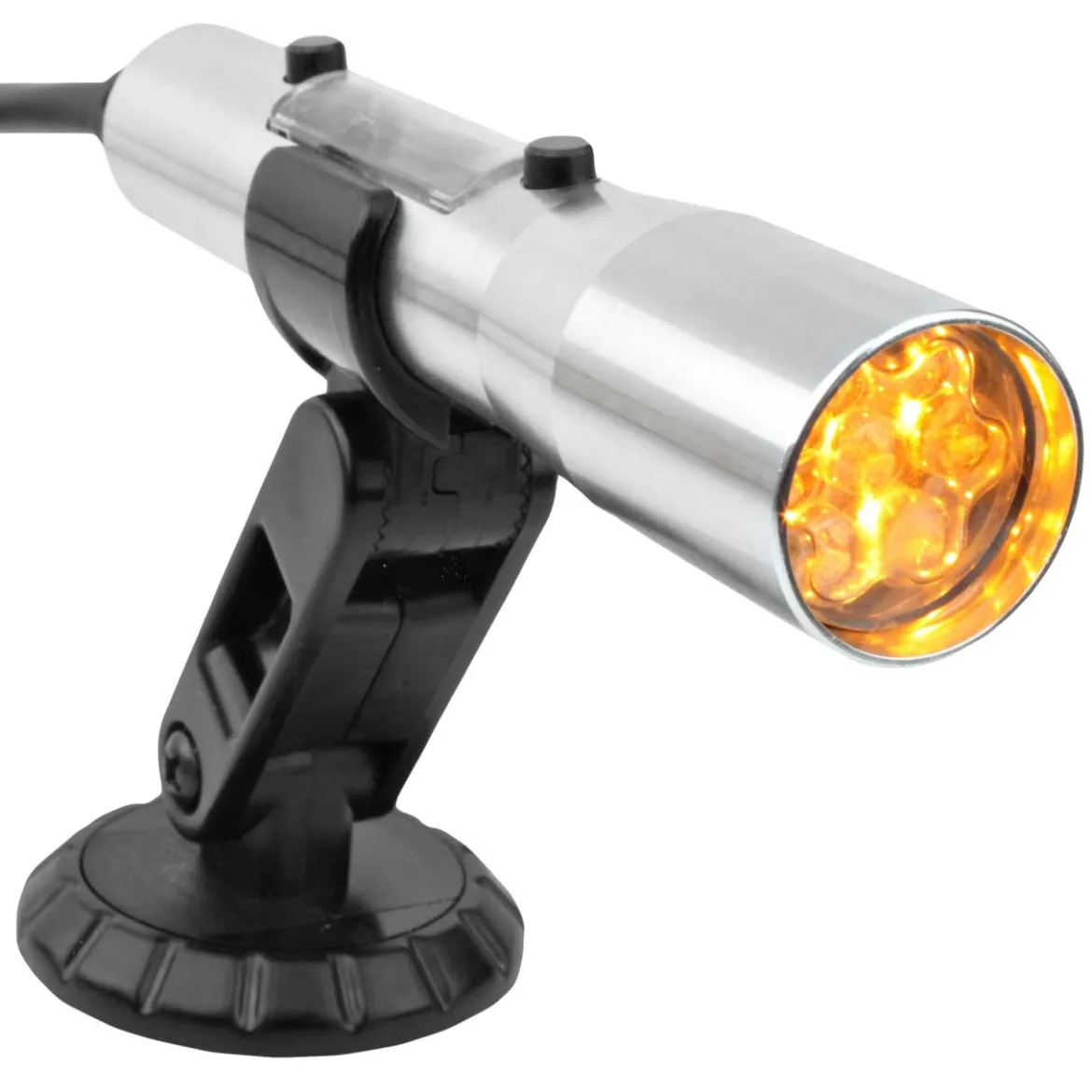

Speedhut Yellow LEDs SST Shift Light w/Silver Aluminum Tube (A-157)

The Speedhut Yellow LEDs SST Shift Light w/Silver Aluminum Tube (A-157) is engineered to provide drivers with enhanced shifting precision. Utilizing patent-pending Smart-Shift Technology™, this advanced device meticulously analyzes up to 100 samples of each spark pulse. This real-time engine performance monitoring ensures optimal gear changes in any driving scenario. Its broad compatibility spans various ignition systems, including single coil, distributor, distributor-less, and coil-on-plug setups, as well as diesel fuel injectors. The installation process is designed to be straightforward, often eliminating the need for a separate tachometer adapter, making it a valuable addition for anyone looking to improve their vehicle’s shifting experience.

KEY FEATURES AND BENEFITS:

• Features innovative Smart-Shift Technology™: For accurate engine monitoring.
• Equipped with 7 super bright yellow LEDs: For clear visibility of the shift point.
• Offers universal compatibility: Works with all ignitions ranging from 0.5 to 6 Pulses per Revolution.
• Includes a programmable mode: For precise RPM calibration.
• Provides an easy-to-read LED screen: For setup and adjustments.
• Functions effectively with diesel fuel injectors: Expands installation versatility.
• Allows for a settable shift point: Adjustable in 10 RPM increments for fine-tuned performance.
• Operates within a wide range: 0 to 10,000 RPM.
• Offers a peak recall function: Displays the maximum RPM achieved.
• Provides adjustable day and night brightness settings: Ensures optimal viewing in any light condition.
• Constructed with a robust billet aluminum housing: For lasting quality.
• Features user-friendly push buttons: For simple operation.
• Backed by a lifetime warranty: Ensures peace of mind.
• Comes with an adjustable mount: For versatile positioning options.

SPECIFICATIONS:

• LED Color: Yellow
• Housing Color: Silver
• Housing Material: Billet Aluminum
• RPM Range: 0 – 10,000 RPM
• Shift Point Setting Increment: 10 RPM
• Included: SST Shift Light unit, adjustable mount

HOW TO USE:

1. Connect the Power: Connect the power wire (typically red) to a 12V positive power source that is switched with the ignition.
2. Connect the Ground: Connect the ground wire (typically black) to a clean, reliable chassis ground.
3. Connect the Signal Wire: Connect the signal wire (refer to the product manual for the specific color) to the appropriate signal source. This could be the negative side of the coil, a tachometer output, or a fuel injector signal wire depending on your vehicle’s ignition system.
4. Mount the Shift Light: Position the shift light in a location that is easily visible while driving using the provided adjustable mount.
5. Set the Shift Point: Using the push buttons and the LED screen, navigate to the shift point setting menu. Increment or decrement the RPM value until your desired shift point is reached.
6. Adjust Brightness (Optional): If desired, use the push buttons to access the brightness settings for day and night viewing and select your preferred level.
7. Utilize Peak Recall (Optional): If you wish to see the maximum RPM reached during a run, activate the peak recall function through the menu.

BENEFITS OF USING THE SPEEDHUT YELLOW LEDS SST SHIFT LIGHT W/SILVER ALUMINUM TUBE (A-157):

• Achieves more accurate and consistent gear changes for improved performance.
• Enhances acceleration and track lap times through optimized shifting.
• Eliminates guesswork with real-time engine monitoring using Smart-Shift Technology™.
• Offers wide compatibility, simplifying installation across diverse vehicles.
• Bright yellow LEDs provide clear visual cues while allowing drivers to stay focused on the road.
• Durable construction ensures long-lasting performance in various driving conditions.
• User-friendly interface simplifies both setup and adjustments.

FEATURES:

• Employs advanced signal processing for precise RPM readings.
• Offers a broad operational range suitable for various engine types.
• Provides a clear digital display for easy configuration.
• Designed for straightforward wiring in most applications.
• Allows for customization of the shift point to match specific engine characteristics.
• Enables monitoring of the engine’s highest rotational speed achieved.
• Offers multiple illumination levels for optimal visibility at any time.
• Constructed from high-grade aluminum for a sleek and durable finish.
• Features intuitive controls for effortless adjustments.
• Backed by a comprehensive warranty, reflecting product quality.
• Includes a versatile mounting solution for flexible placement within the vehicle.
