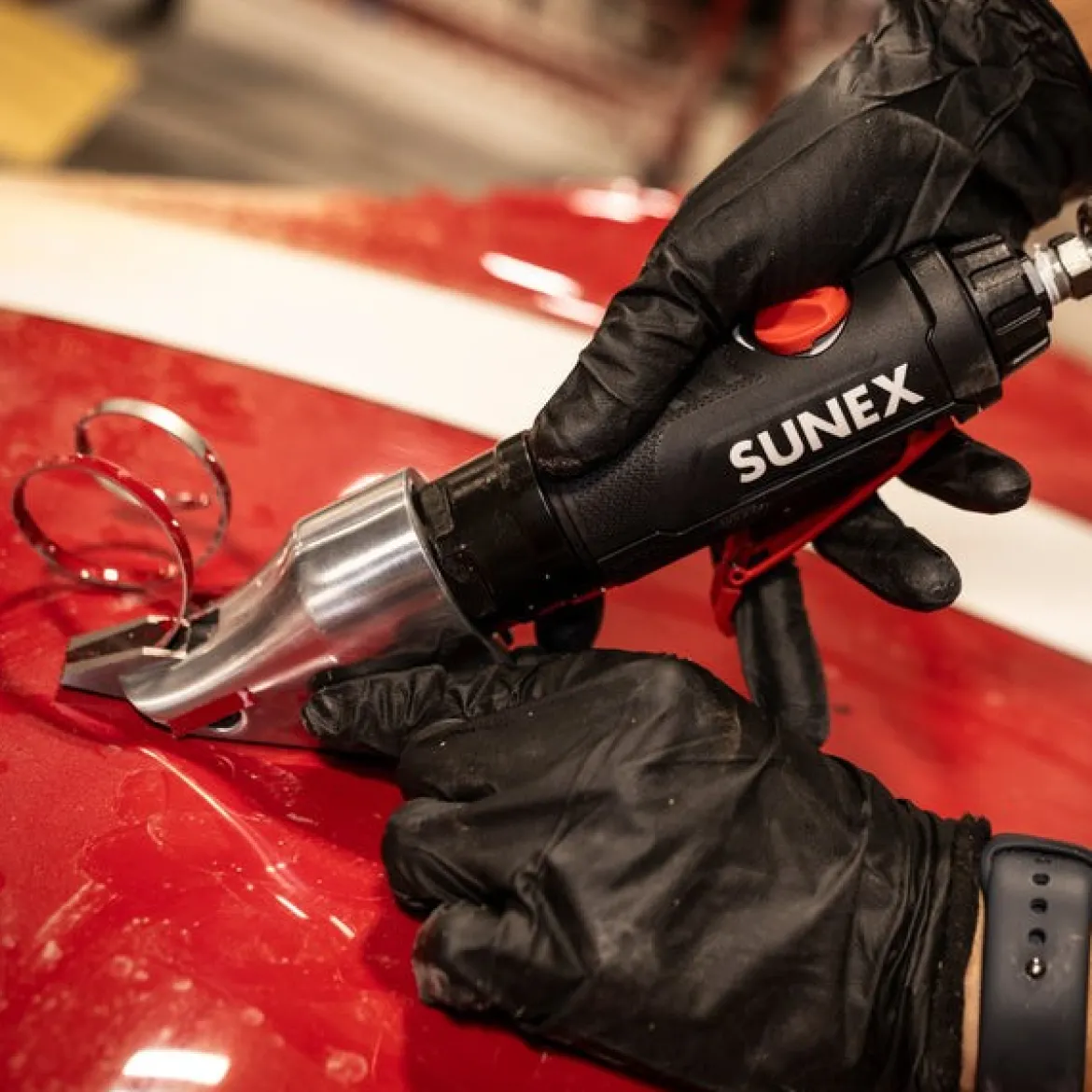

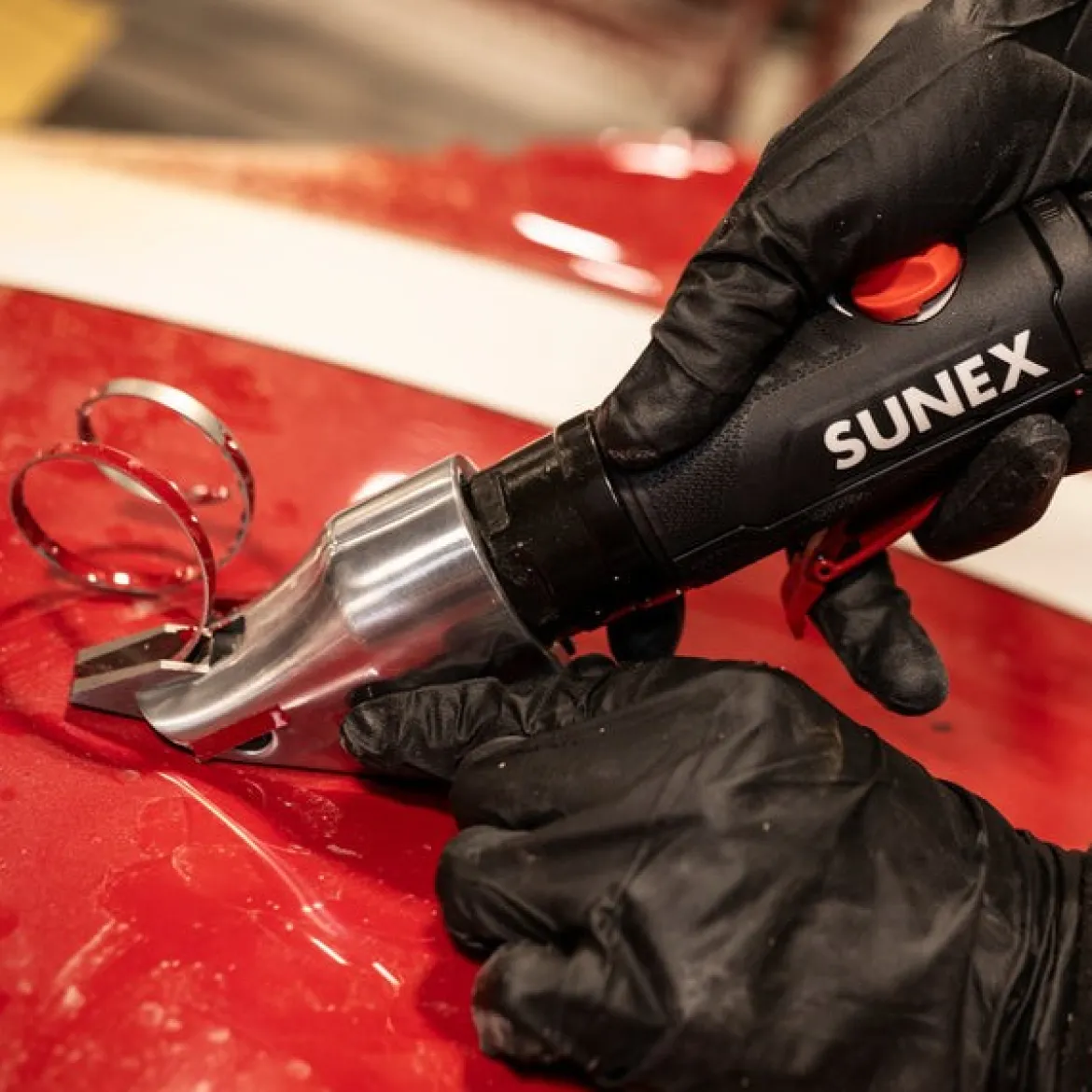

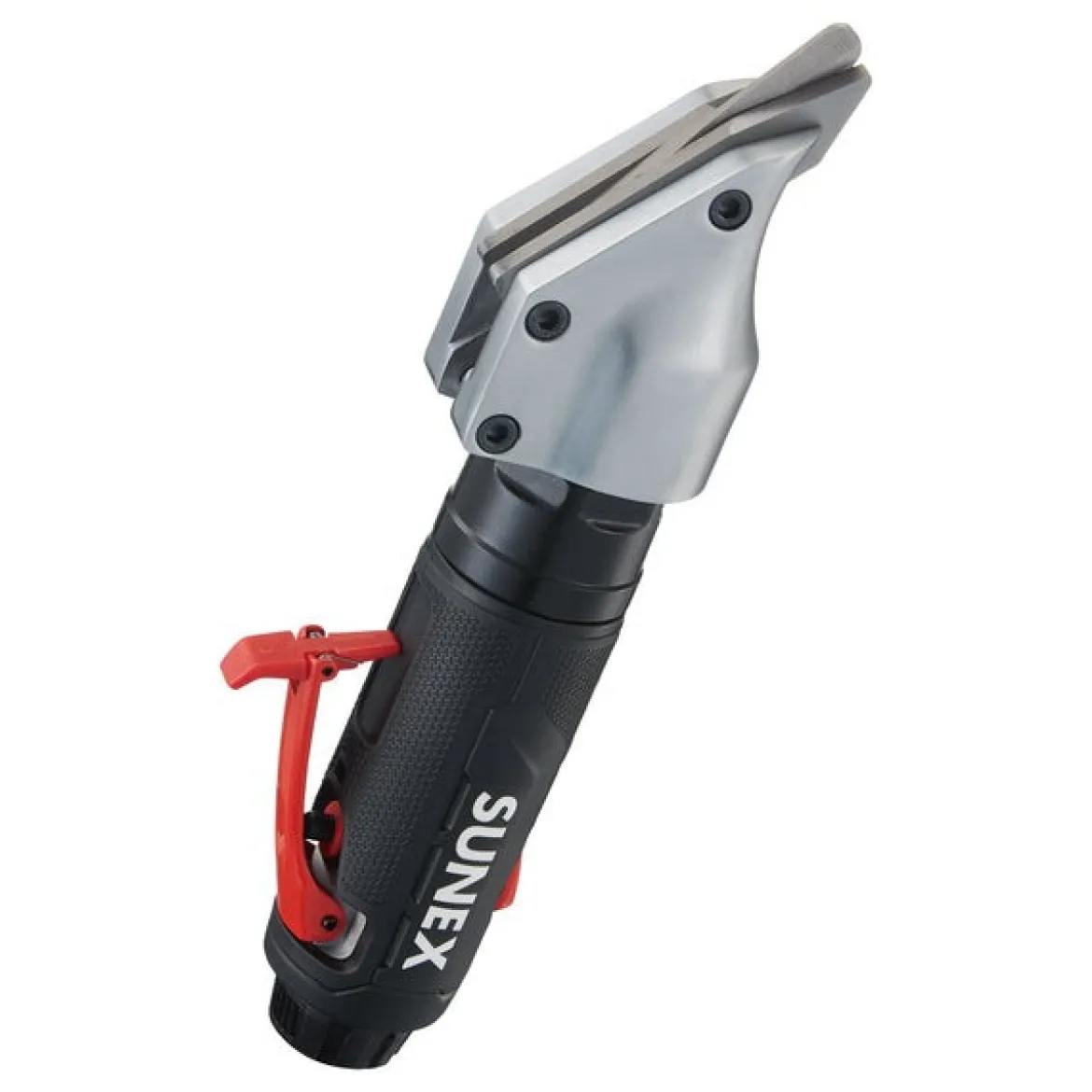

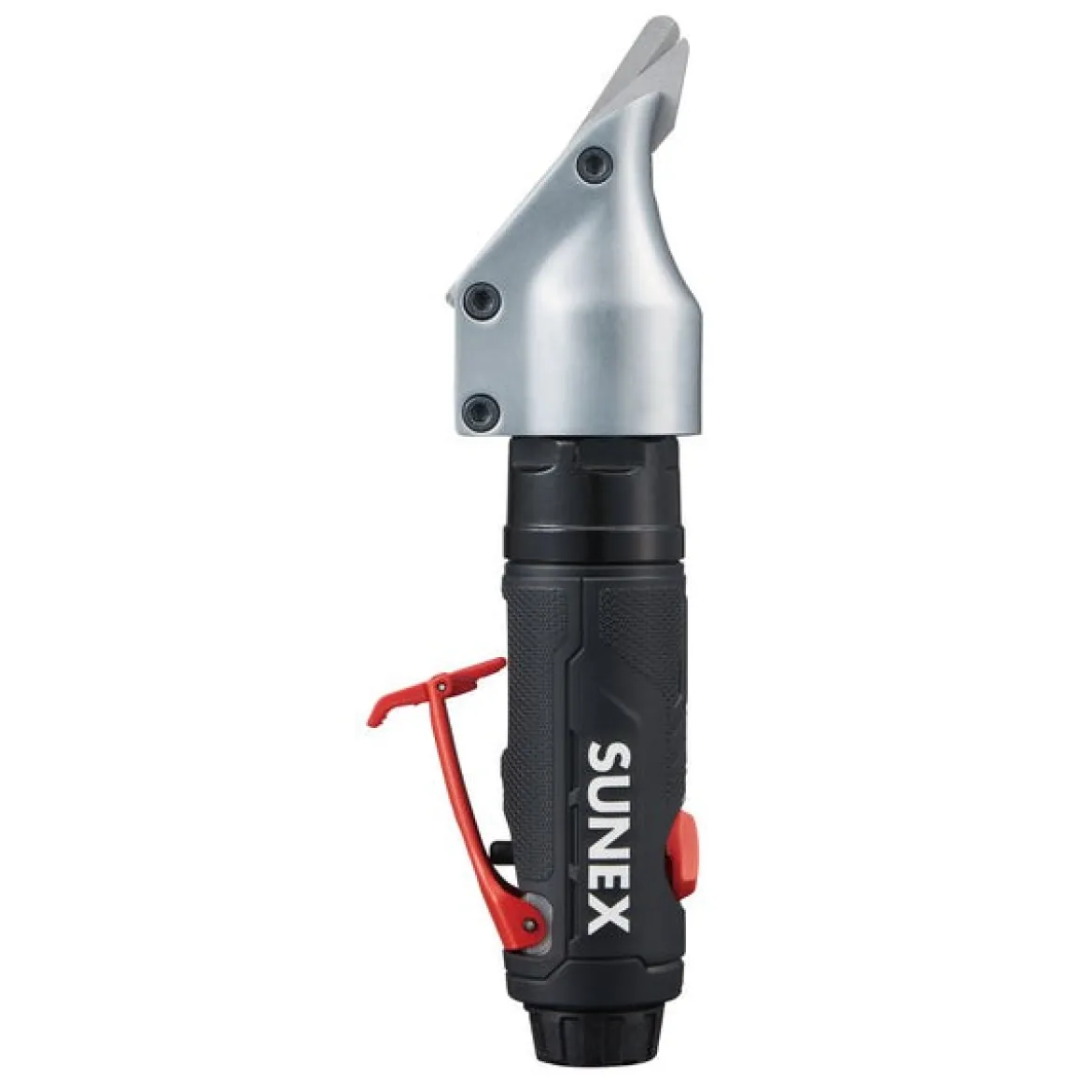

Sunex Tools 0.5HP Air Metal Shear (SX6211)

Sunex Tools 0.5HP Air Metal Shear (SX6211) is a specialized pneumatic tool engineered for high-efficiency cutting in automotive body shops, HVAC installation, and general metal fabrication. By utilizing a high-torque 0.5HP motor, this shear provides the mechanical advantage necessary to cut through 18-gauge steel and aluminum without the binding or stalling often associated with lower-powered models. The toolÕs design prioritizes both precision and user comfort, incorporating a composite housing that significantly reduces the overall weight while maintaining the structural integrity required for a shop environment.

Key Features and Benefits:

• High-Performance Cutting: The SX6211 delivers clean, distortion-free cuts essential for working with thin sheet metals where edge quality is a priority.
• 0.5HP Motor: Provides a consistent 2,600 Strokes Per Minute (SPM), allowing the blades to move quickly enough to prevent tearing of the material.
• Versatile Shear Head: Hardened aluminum design navigates straight lines, tight curves, and sharp angles effectively.
• Operator Comfort: Lightweight composite body and ergonomic overmold grip dampen vibrations, reducing physical strain during extended use.
• Integrated Power Regulator: Allows the operator to adjust speed for intricate work or long cuts in thinner materials.

Specifications:

• Motor: 0.5 HP
• Free Speed: 2,600 SPM
• Cutting Capacity (Steel/Aluminum): 18 Gauge
• Air Consumption: 3.1 CFM
• Operating Pressure: 90 PSI
• Weight: 2.2 lbs
• Air Inlet: 1/4″ NPT
• Minimum Hose Size: 3/8″ I.D.
• Housing Material: Composite
• Exhaust Location: Rear
• Included in Box: SX6211 Air Metal Shear, 1/4″ NPT Air Inlet Fitting, User Manual

How to Use:

• Preparation: Ensure your air compressor is set to 90 PSI and that your air line is equipped with a 3/8″ I.D. hose for optimal performance.
• Lubrication: Add 2Ð3 drops of air tool oil into the air inlet before connecting the tool to the air supply.
• Connection: Attach the 1/4″ NPT air fitting to the tool and connect the air hose.
• Adjustment: Use the integrated power regulator to set the desired speed based on the thickness of the material you are cutting.
• Alignment: Position the center blade of the shear head at the starting edge of your cut line.
• Operation: Disengage the safety lock-off trigger and depress the throttle. Guide the tool along your marked path, letting the motor do the work without forcing it forward.
• Completion: Release the trigger and wait for the blades to stop before lifting the tool away from the workpiece. Disconnect the air supply when the task is finished.

Benefits of Using Sunex Tools 0.5HP Air Metal Shear (SX6211):

• Professional Finish: The shear removes a small strip of material (the “curl”), resulting in smooth edges that require minimal deburring.
• Power-to-Weight Ratio: The 0.5HP motor allows cutting through thicker 18-gauge materials without excessive vibration or loss of speed.
• Improved Visibility: The rear exhaust system prevents air from blowing metal shavings toward your eyes, keeping your workspace clean.

Features:

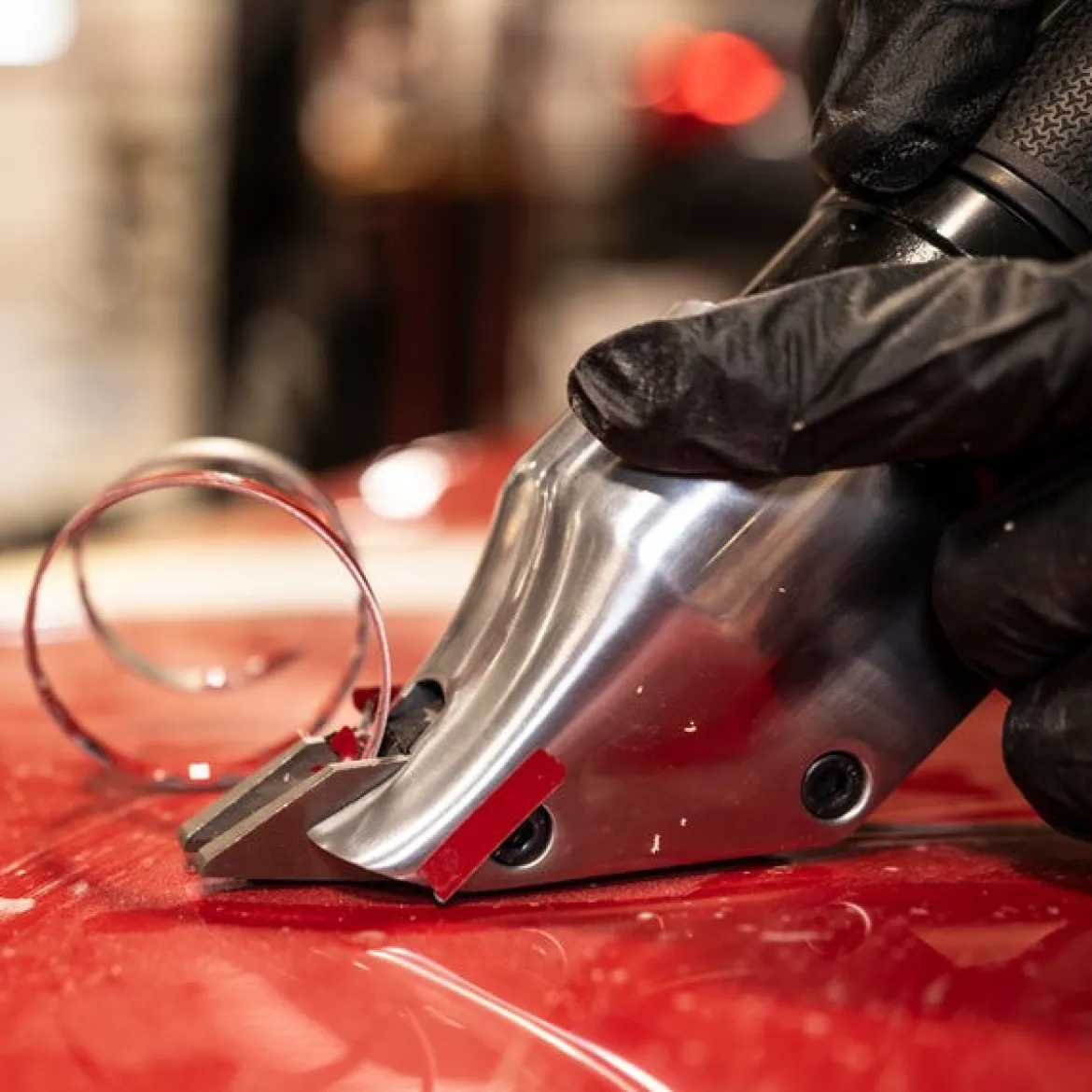

• Precision Aluminum Shear Head: Constructed from hardened aluminum for accurate straight and radius cuts.
• Variable Speed Regulator: Built-in adjustment dial provides real-time control of cutting speed to match specific material requirements.
• Vibration-Dampening Overmold: Rubberized grip surface absorbs feedback and provides a non-slip surface for improved control.
• Internal Safety Mechanism: Integrated lock-off trigger requires a secondary action to engage, preventing accidental use.
• Composite Tool Housing: High impact resistance while maintaining a weight of just 2.2 lbs.
• Directional Rear Exhaust: Moves spent air and debris away from the operator’s face and the workpiece.
• Low Air Volume Requirement: Operates efficiently at 3.1 CFM, compatible with most standard shop compressors.
