Sunex Tools 0.5HP Extended Reach Die Grinder (SX5200)

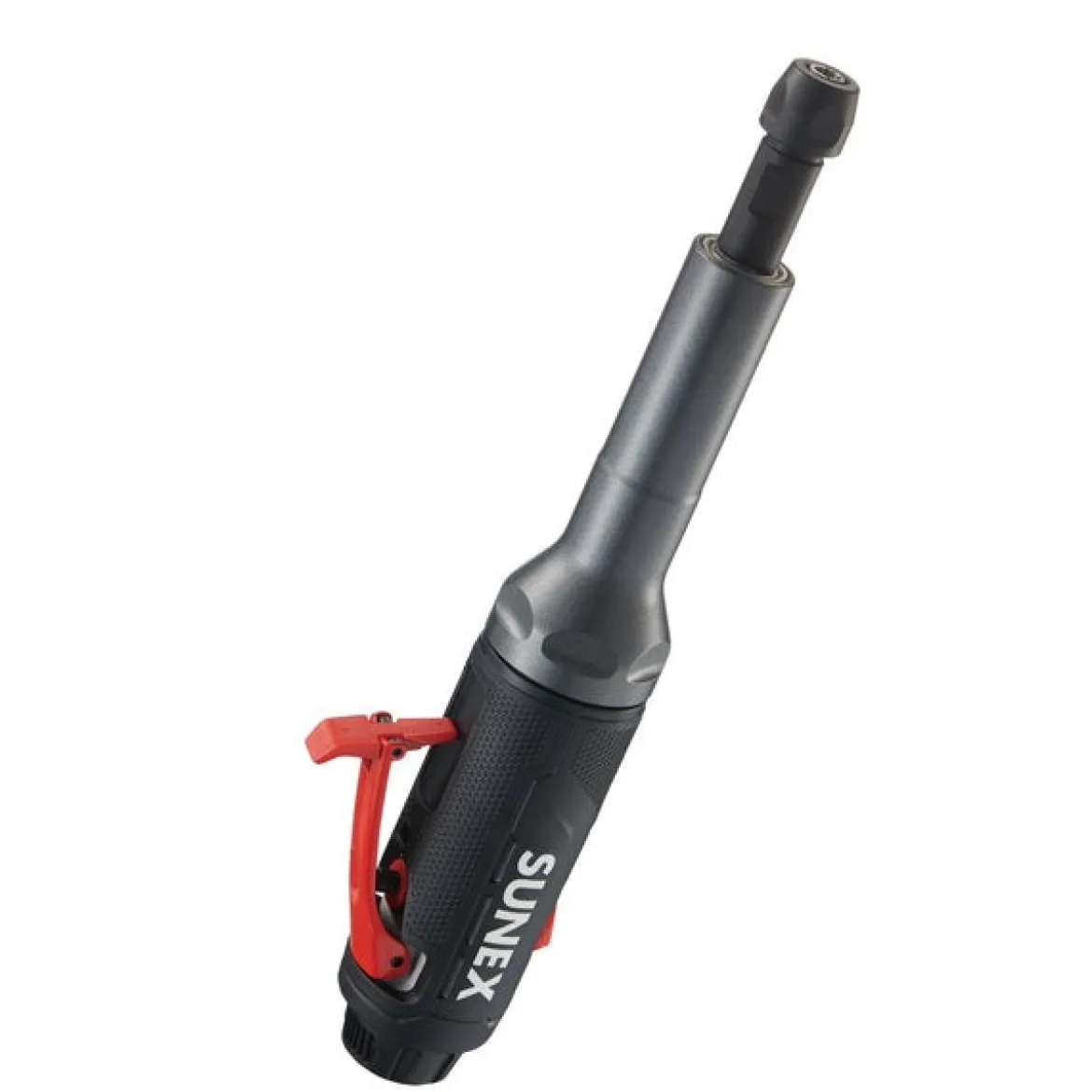

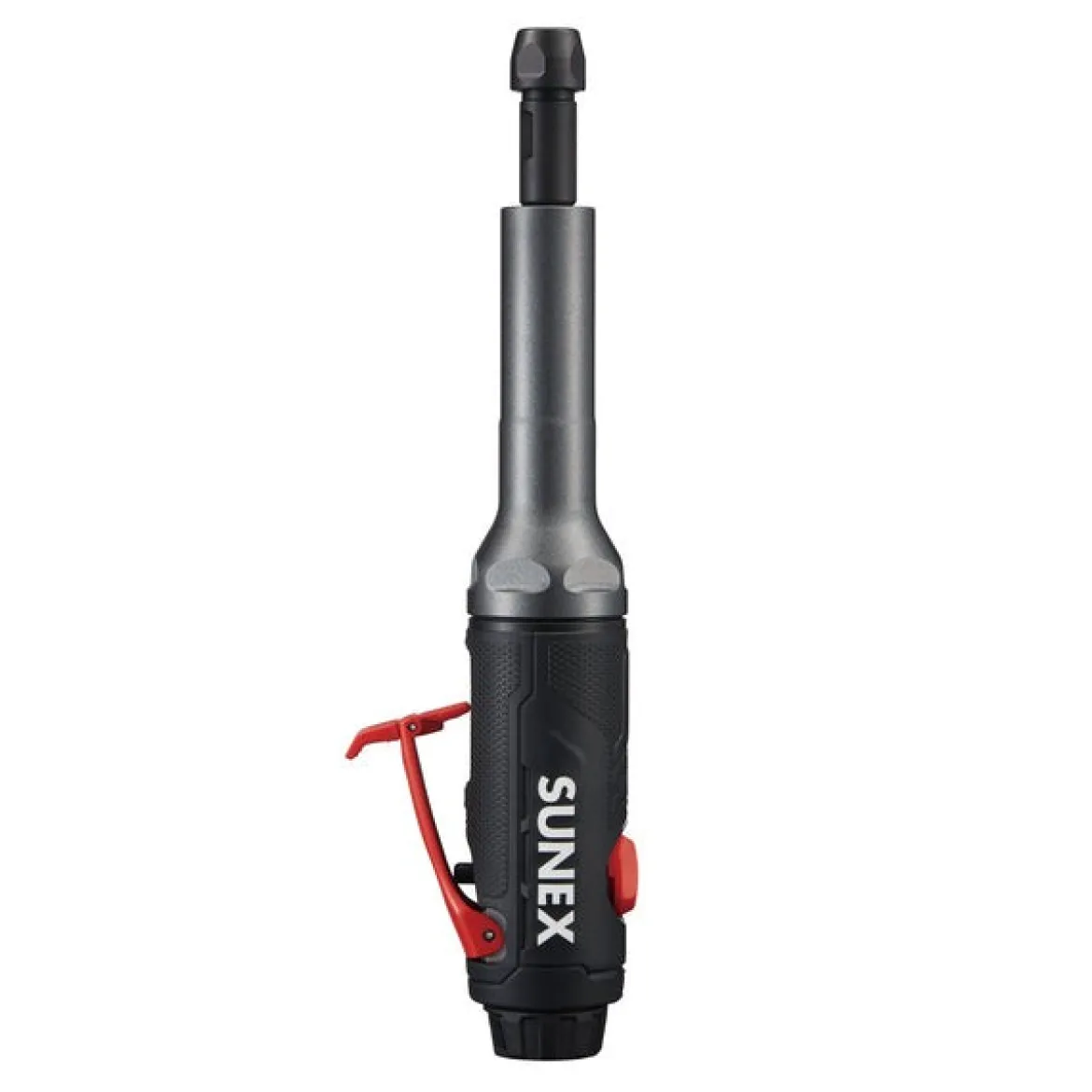

Sunex Tools 0.5HP Extended Reach Die Grinder (SX5200) is a specialized pneumatic tool engineered for technical grinding, deburring, and shaping tasks in environments where space is a primary constraint. Unlike standard die grinders limited by their short housings, the SX5200 features a 5-inch extension shaft, allowing operators to reach deep into engine compartments, frame rails, or complex weldments without interference from the tool body.

Key Features and Benefits:

• 0.5HP High-Torque Motor: Delivers the necessary power for shaping and grinding while preventing stalling during demanding applications.
• Extended Neck Design: The elongated shaft offers access to tight or recessed areas that standard-length grinders cannot reach.
• Adjustable Speed Regulator: Built-in control allows users to adjust RPM to match material sensitivity or specific task requirements.
• Lightweight Composite Housing: At only 2.5 lbs, the design minimizes physical strain and fatigue during extended use.
• Vibration-Dampening Grip: The ergonomic overmold grip isolates the user from motor vibrations for a non-slip hold.
• Safety Lock-Off Trigger: A mechanical safety lever prevents accidental tool engagement, reducing injury risk in busy shop settings.
• Rear Directional Exhaust: Directs spent air and fine debris away from the user and workpiece, maintaining a clear line of sight.

Specifications:

• Motor Power: 0.5 HP
• Free Speed: 20,000 RPM
• Air Consumption: 4.2 CFM
• Operating Pressure: 90 PSI
• Collet Size: 1/4″
• Weight: 2.5 lbs
• Air Inlet: 1/4″ NPT
• Included in Box: SX5200 Die Grinder, Collet Wrenches

How to Use:

• Preparation: Set your air compressor to 90 PSI and ensure you have an air hose delivering at least 4.2 CFM.
• Lubrication: Apply 2Ð3 drops of air tool oil into the air inlet before connecting the air line to lubricate internal components.
• Accessory Installation: Use the included wrenches to loosen the 1/4-inch collet. Insert the shank of your grinding burr or stone fully into the collet and tighten securely.
• Connecting Power: Attach the air hose to the 1/4″ NPT inlet. Ensure that the safety lock-off trigger is in the “off” position during connection.
• Speed Adjustment: Use the adjustable power regulator to set the desired speed based on the material being ground.

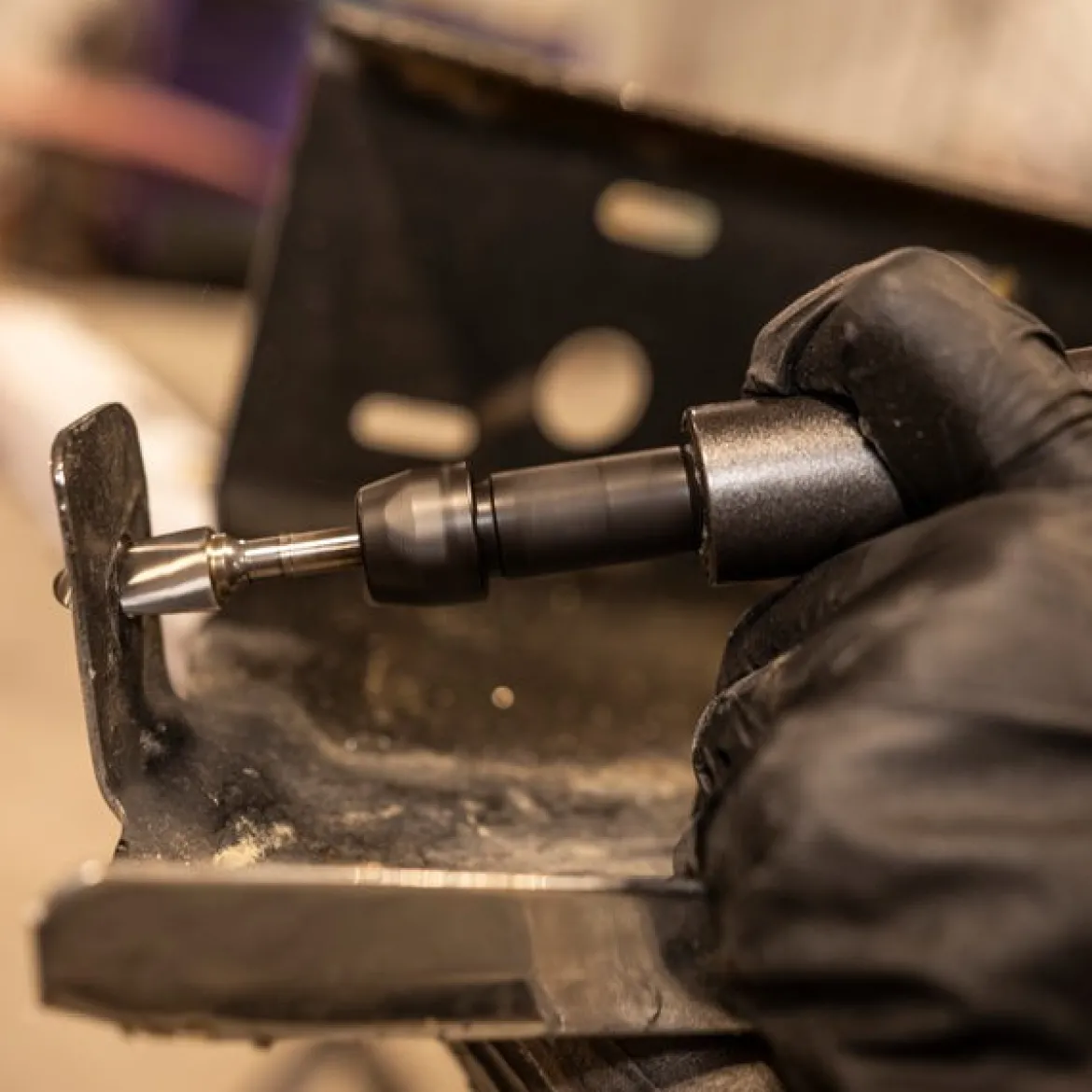

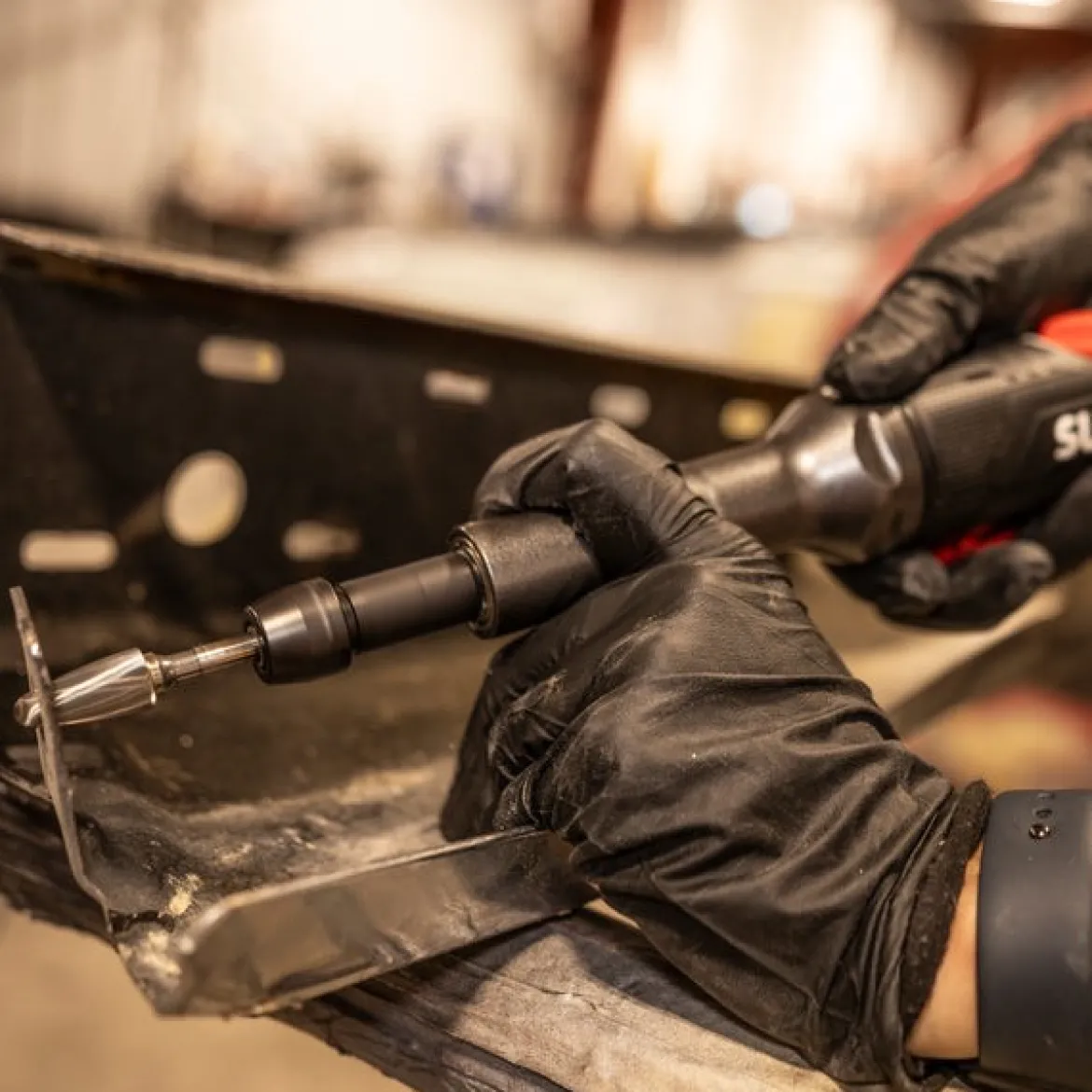

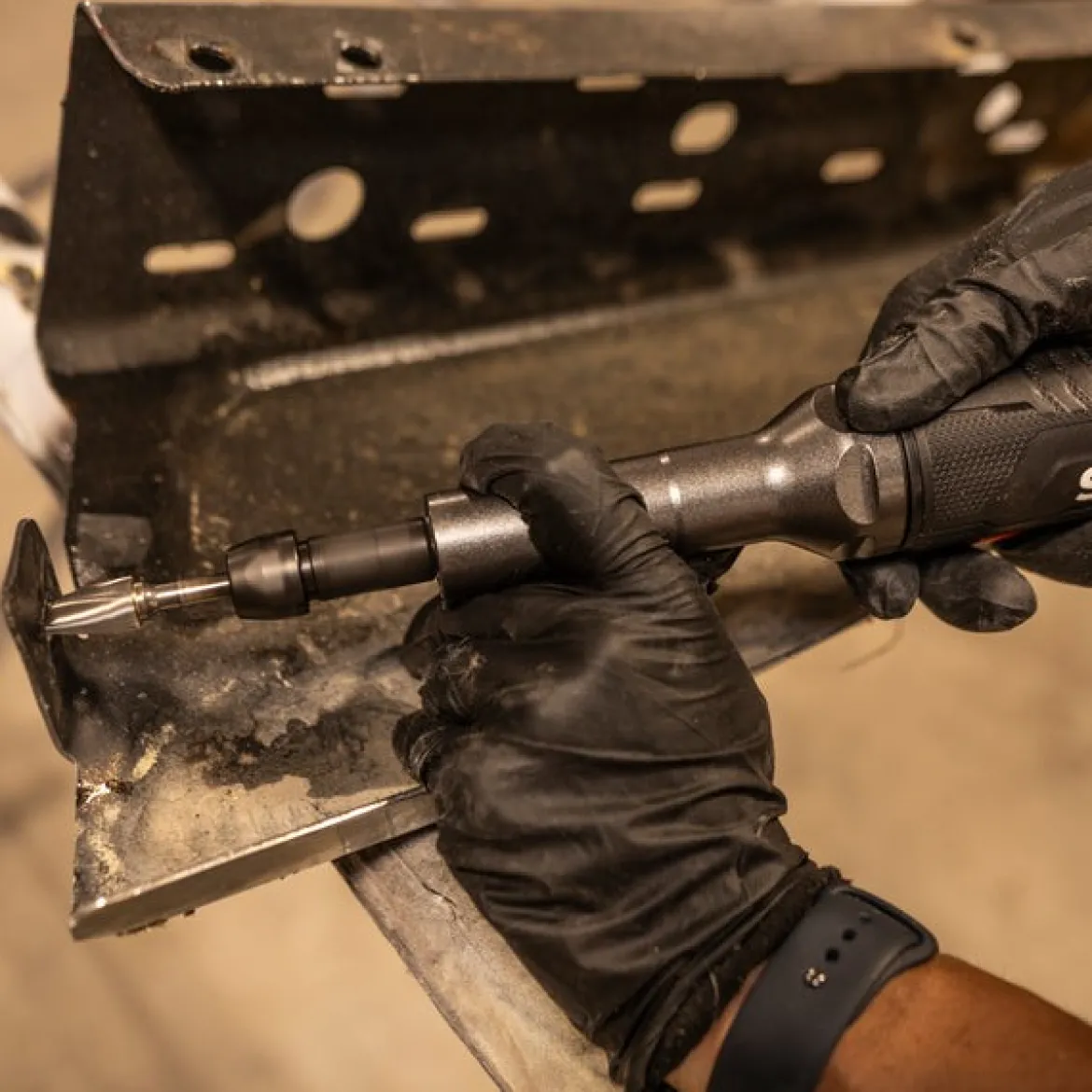

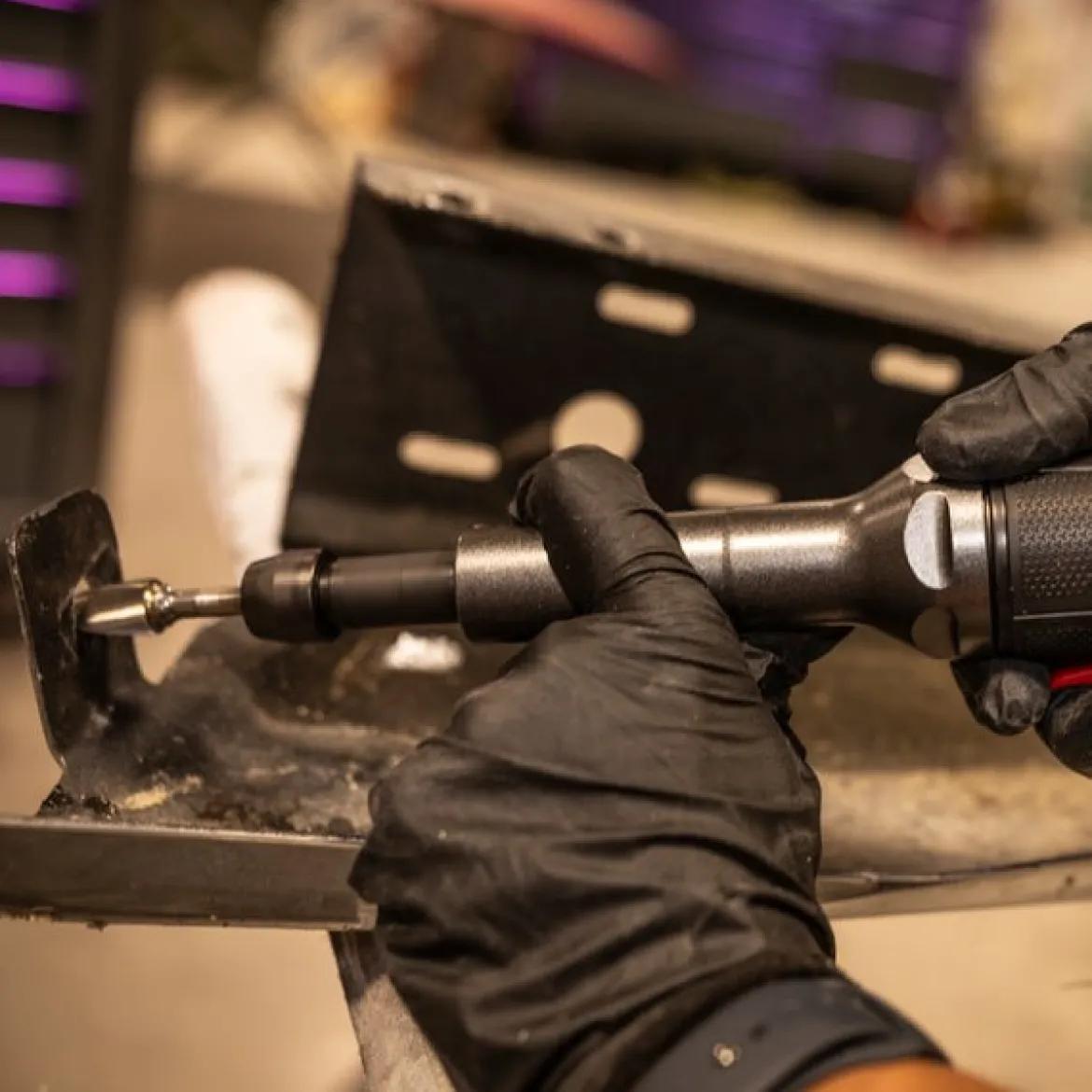

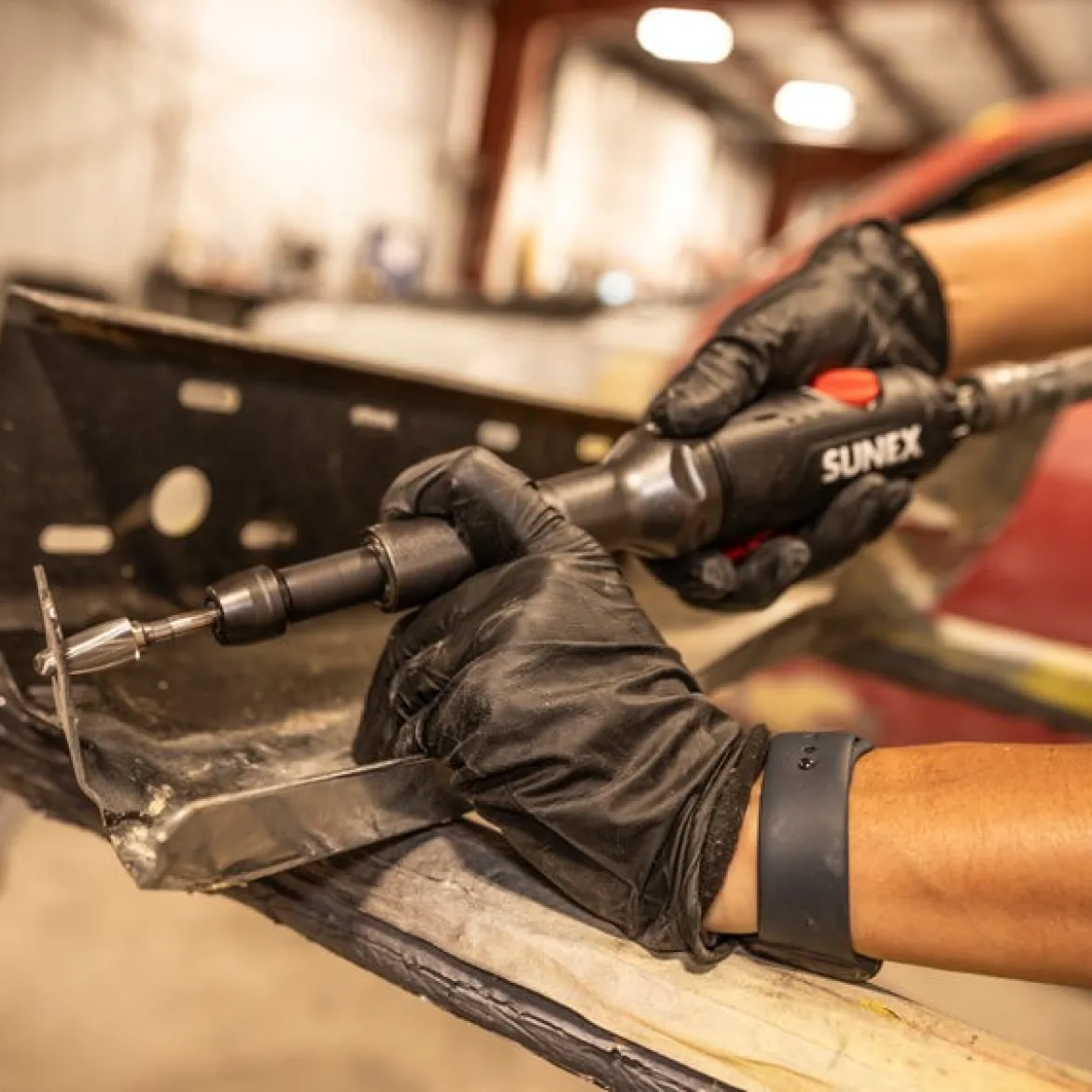

• Operation: Disengage the safety lock and depress the trigger. Apply light, consistent pressure, letting the 20,000 RPM motor do the work. Use the extended shaft to guide the bit into recessed areas.
• Shutdown: Release the trigger, wait for the bit to stop spinning completely, and disconnect the air supply before removing the accessory.

Benefits of Using Sunex Tools 0.5HP Extended Reach Die Grinder (SX5200):

• Enhanced Efficiency: Eliminates the need for makeshift extensions or manual filing in hard-to-reach areas.
• Rapid Material Removal: The combination of the 0.5HP motor and 20,000 RPM speed accelerates fabrication and repair tasks.
• Reduced Hand Fatigue: The composite body and ergonomic overmold decrease hand numbness compared to all-metal tools.
• Improved Safety: Rear exhaust and safety trigger manage debris and prevent accidental activation, contributing to a cleaner work environment.

Features:

• Extended Reach Geometry: Specifically designed with a long-neck profile for deep-access grinding tasks.
• Precision 1/4″ Collet System: Industrial-grade collet securely holds accessories to prevent run-out or wobbling at high speeds.
• Variable Speed Thumb Regulator: Allows on-the-fly airflow adjustments without needing to return to the compressor.
• Composite Thermal Protection: Housing material insulates hands from cooling effects of compressed air.
• Integrated Safety Lever: Spring-loaded lock-off mechanism must be intentionally moved to activate the tool.
• Directional Air Management: Rear exhaust port expels air towards the hose and away from the grinding surface.
• High-Speed Bearing Construction: Internals rated for 20,000 RPM ensure longevity under friction.
