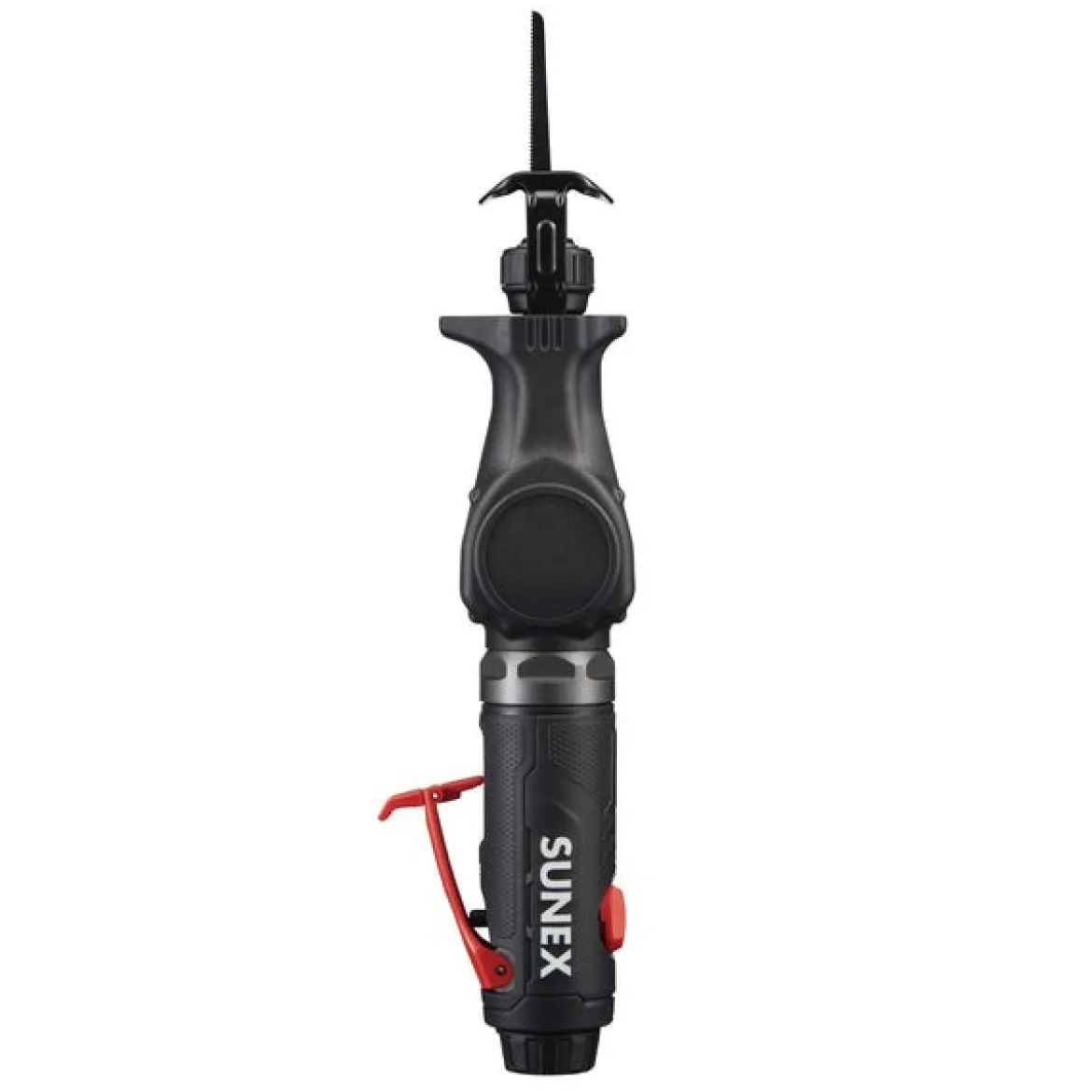

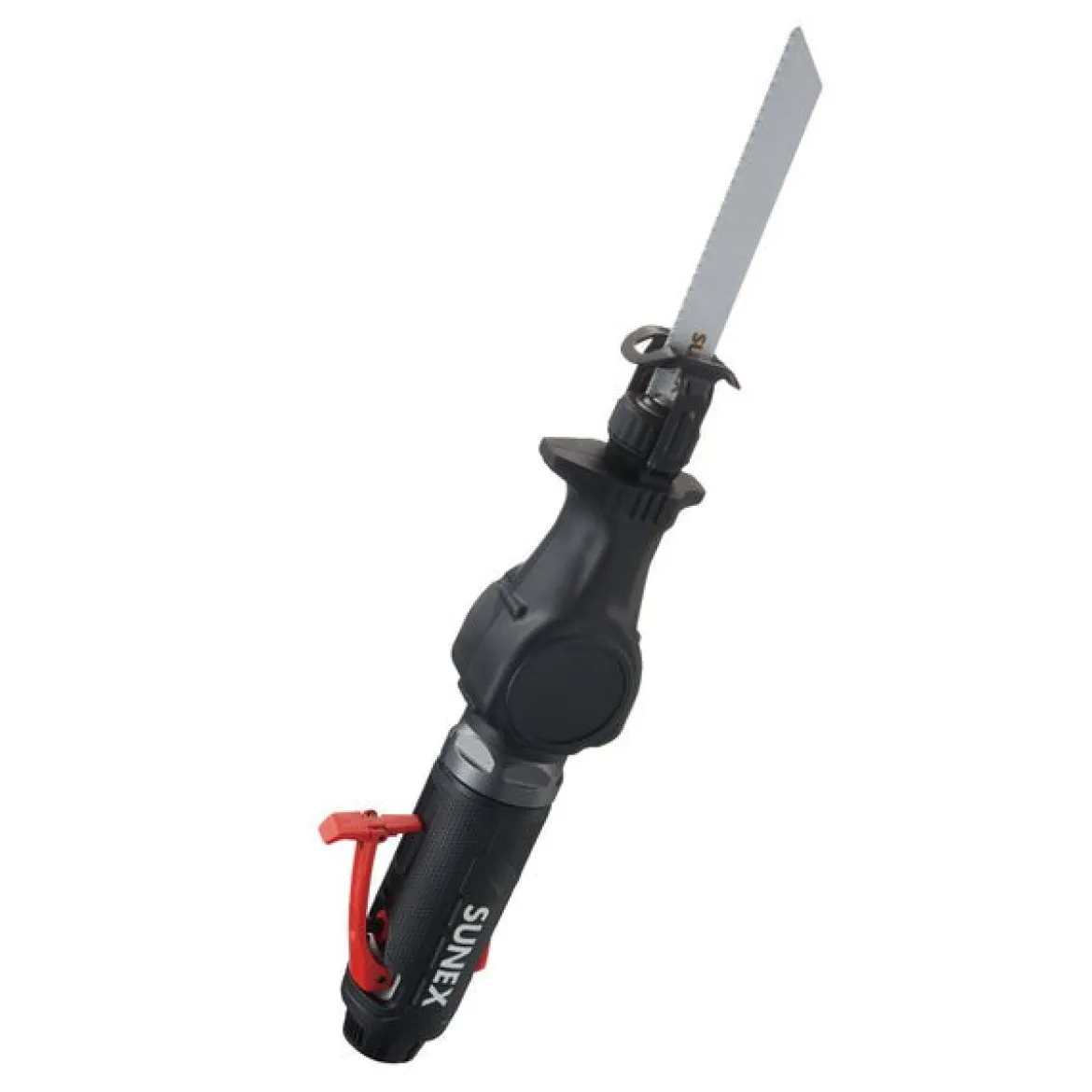

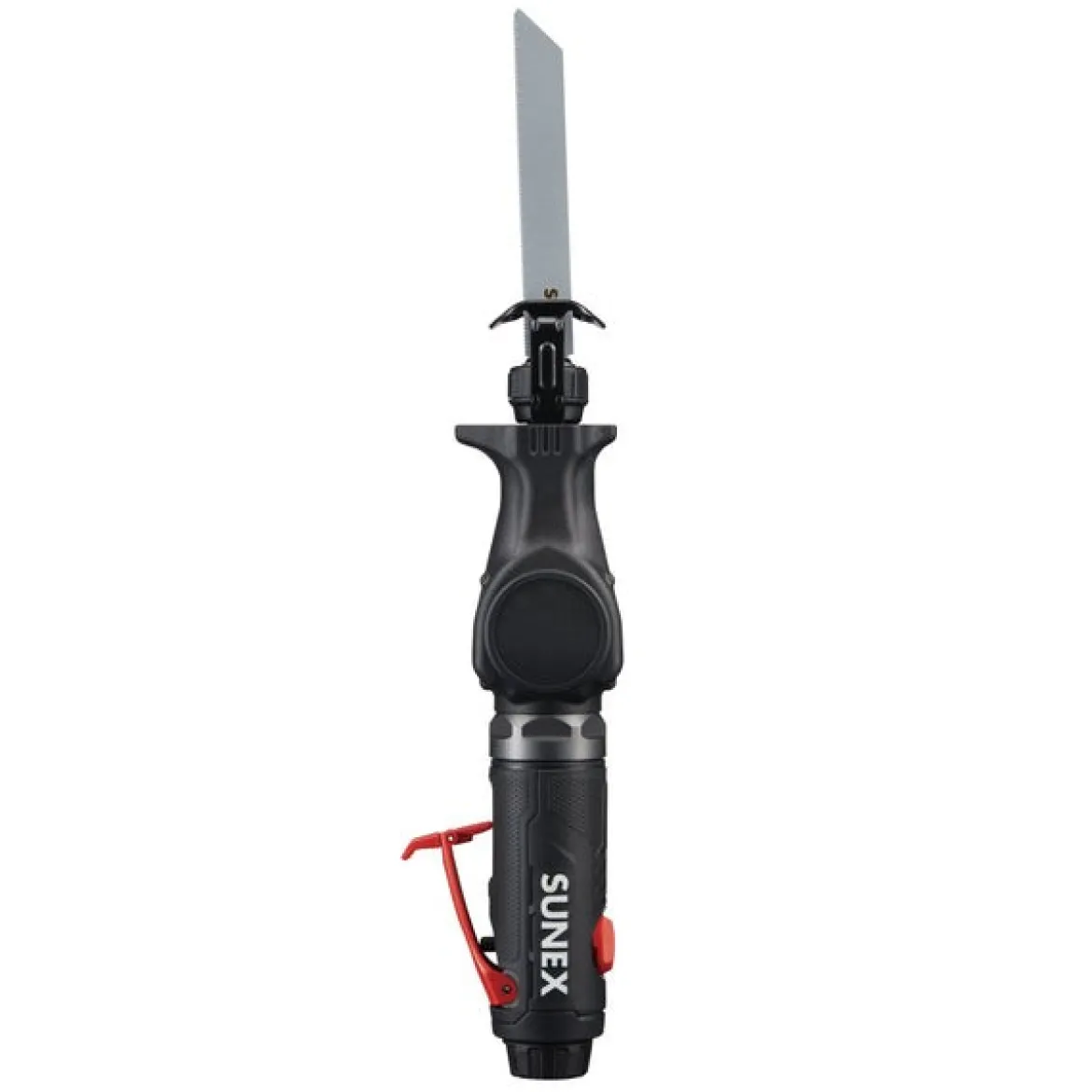

Sunex Tools 0.5HP Geared Reciprocating Saw (SX7200)

Sunex Tools 0.5HP Geared Reciprocating Saw (SX7200) is a specialized air tool engineered for high-torque cutting applications where standard air saws often stall. By utilizing a geared internal mechanism, this tool translates its 0.5HP motor output into a consistent, aggressive stroke that can handle sheet metal, thick plastics, and various types of tubing. Designed for the rigors of automotive body shops and custom fabrication environments, the SX7200 balances raw cutting power with precision controls, including an integrated power regulator that allows the operator to fine-tune the strokes per minute based on the specific resistance of the workpiece.

Key Features and Benefits:

• Geared Motor Design: Focuses on torque rather than high speed, ensuring the blade remains in motion even under heavy load.
• Tool-Free Quick-Change Connector: Allows for rapid switching between standard reciprocating blades and saber-style blades, enhancing versatility.
• Lightweight Composite Body: Reduces the physical demands on the user while dampening vibrations for improved control.
• Vertical Cutting Capacity: Capable of making intricate curves or straight, deep cuts up to 3 inches.

Specifications:

• Motor: 0.5 HP
• Free Speed: 5,000 SPM
• Air Consumption: 3.5 CFM
• Operating Pressure: 90 PSI
• Air Inlet: 1/4″ NPT
• Minimum Hose Size: 3/8″ I.D.
• Weight: 2.43 lbs
• Length: 11.5 inches
• Cutting Capacity: 3 inches

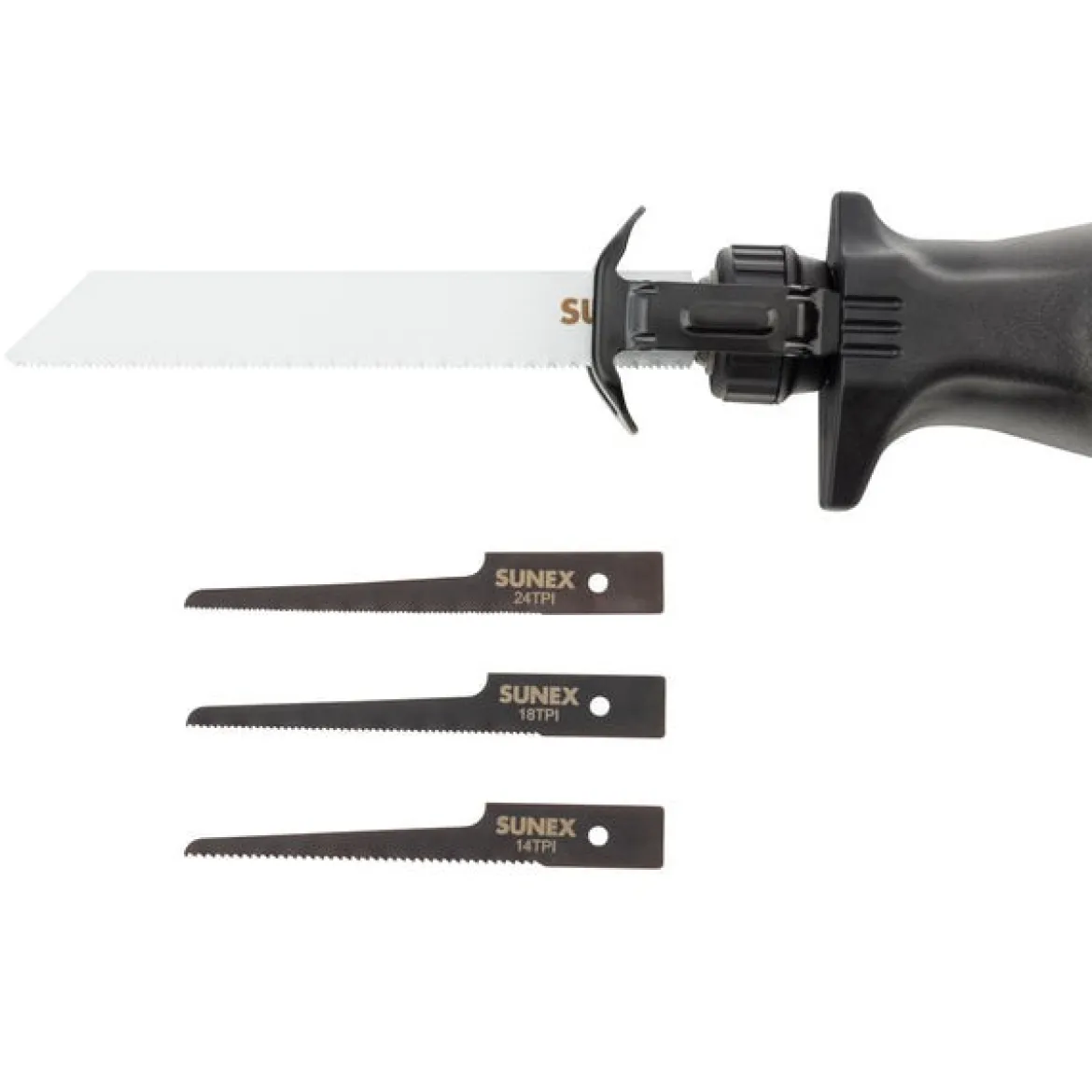

• Included in Box: (1) SX7200 Saw, (1) 6Ó 18T Reciprocating Saw Blade, (1) 3Ó 14T Saw Blade, (1) 3Ó 18T Saw Blade, (1) 3Ó 24T Saw Blade.

How to Use:

• Air Supply Connection: Attach a 1/4″ NPT air fitting to the tool’s inlet and connect it to a 3/8″ ID air hose regulated to 90 PSI.

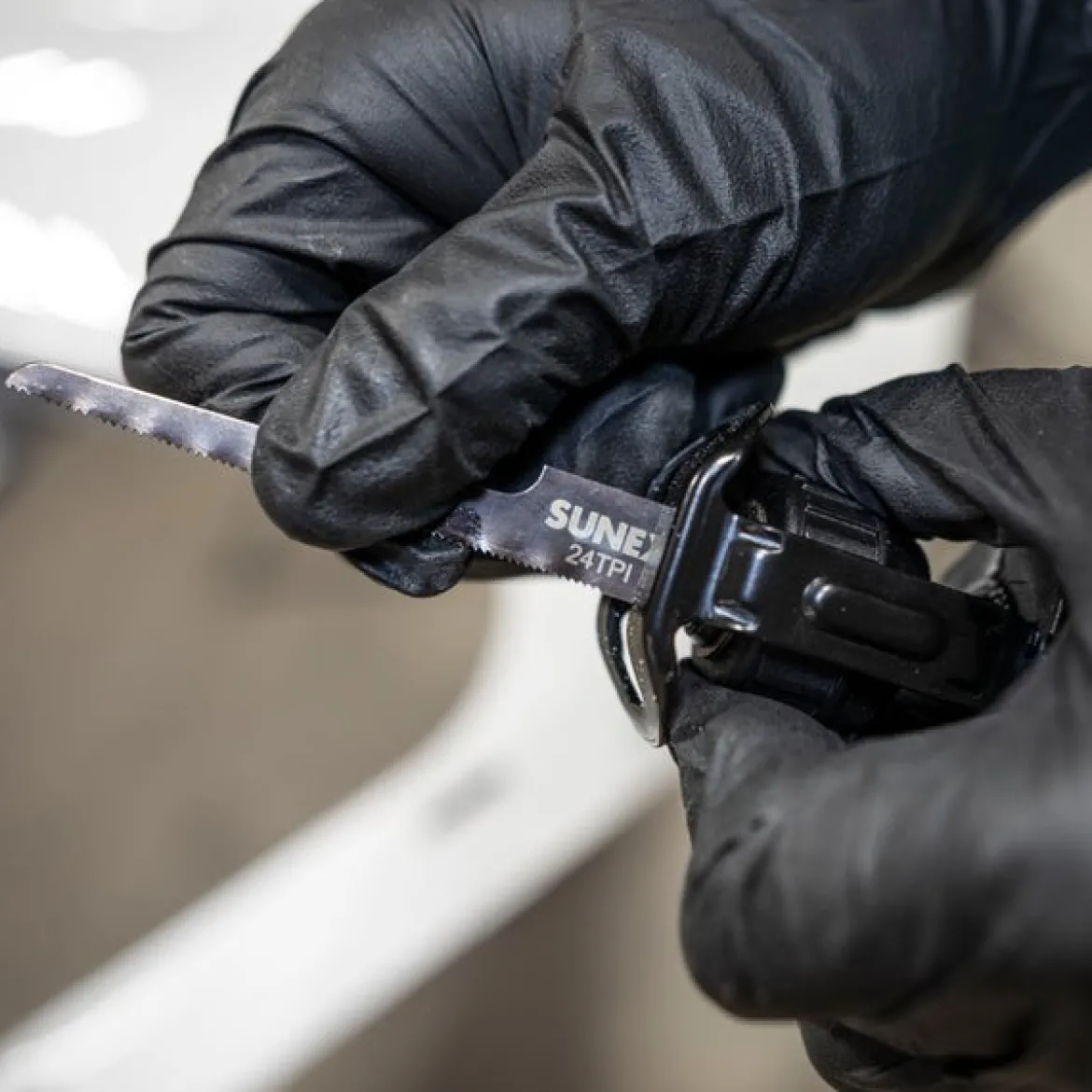

• Blade Installation: Pull back the collar on the quick-change connector, insert your chosen standard or saber-style blade, and release to lock the blade in place.

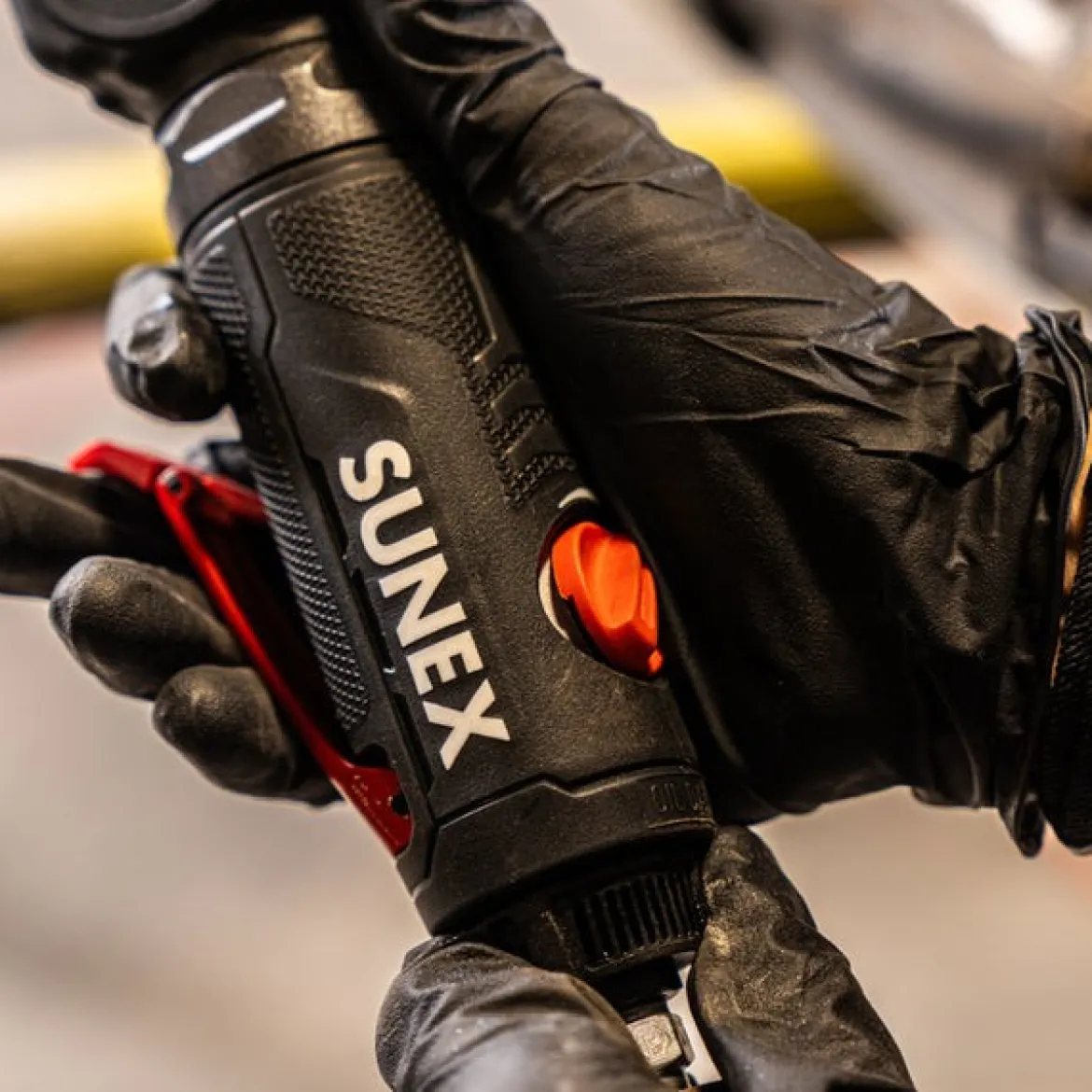

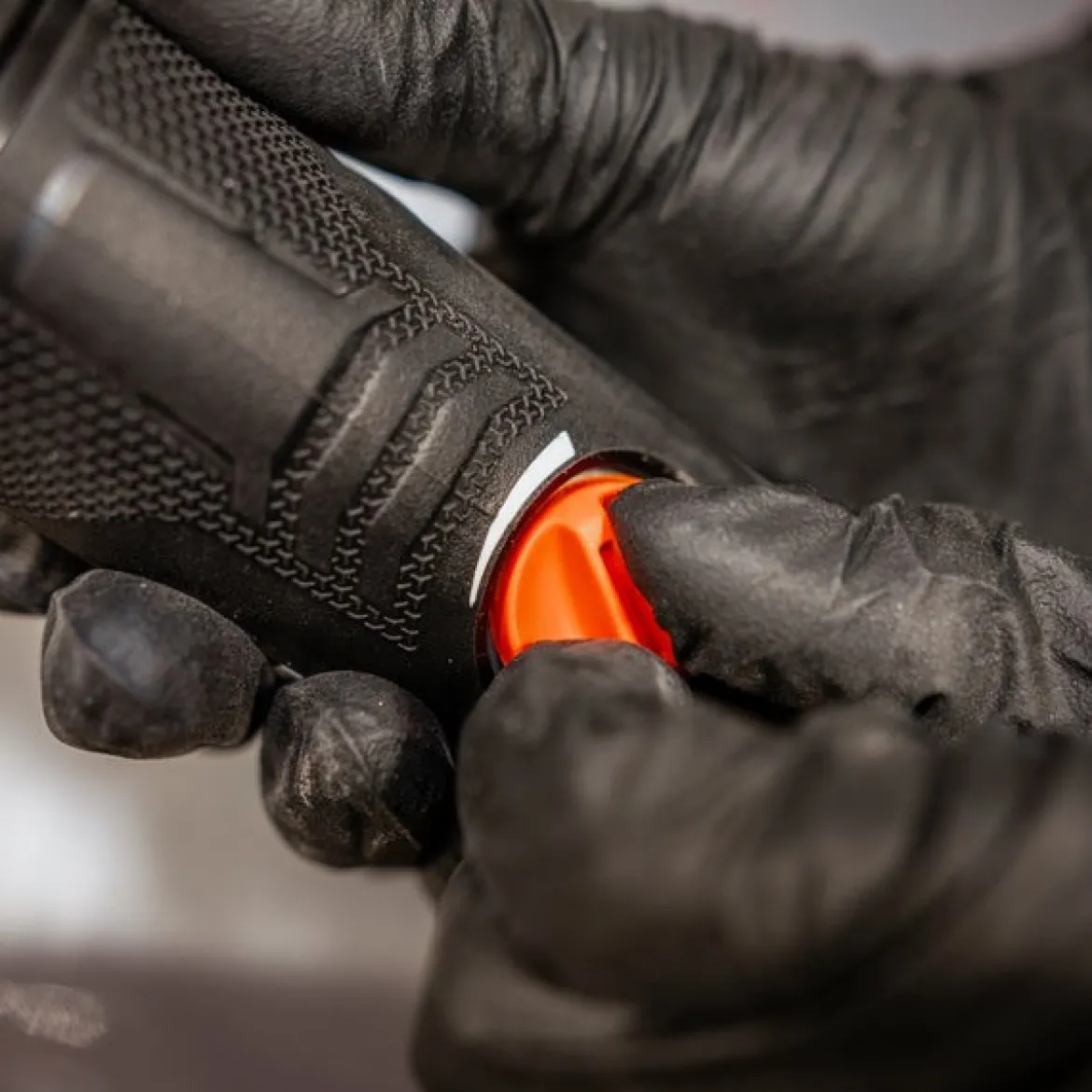

• Speed Adjustment: Turn the adjustable power regulator dial to set the desired speed based on material thickness.
• Initial Cut: Position the saw’s guide against the workpiece, squeezing the safety lock-off trigger to engage the motor.
• Cutting Process: Apply steady, even pressure; let the geared motor perform without forcing the tool.
• Post-Use: Disconnect the air supply and remove the blade for storage.

Benefits of Using Sunex Tools 0.5HP Geared Reciprocating Saw (SX7200):

• Improved Efficiency: The geared motor handles tougher cutting tasks like exhaust pipes and frame sections that stall lesser tools.
• Enhanced Safety: The rear exhaust system keeps debris away from the operator’s line of sight for a safer working environment.

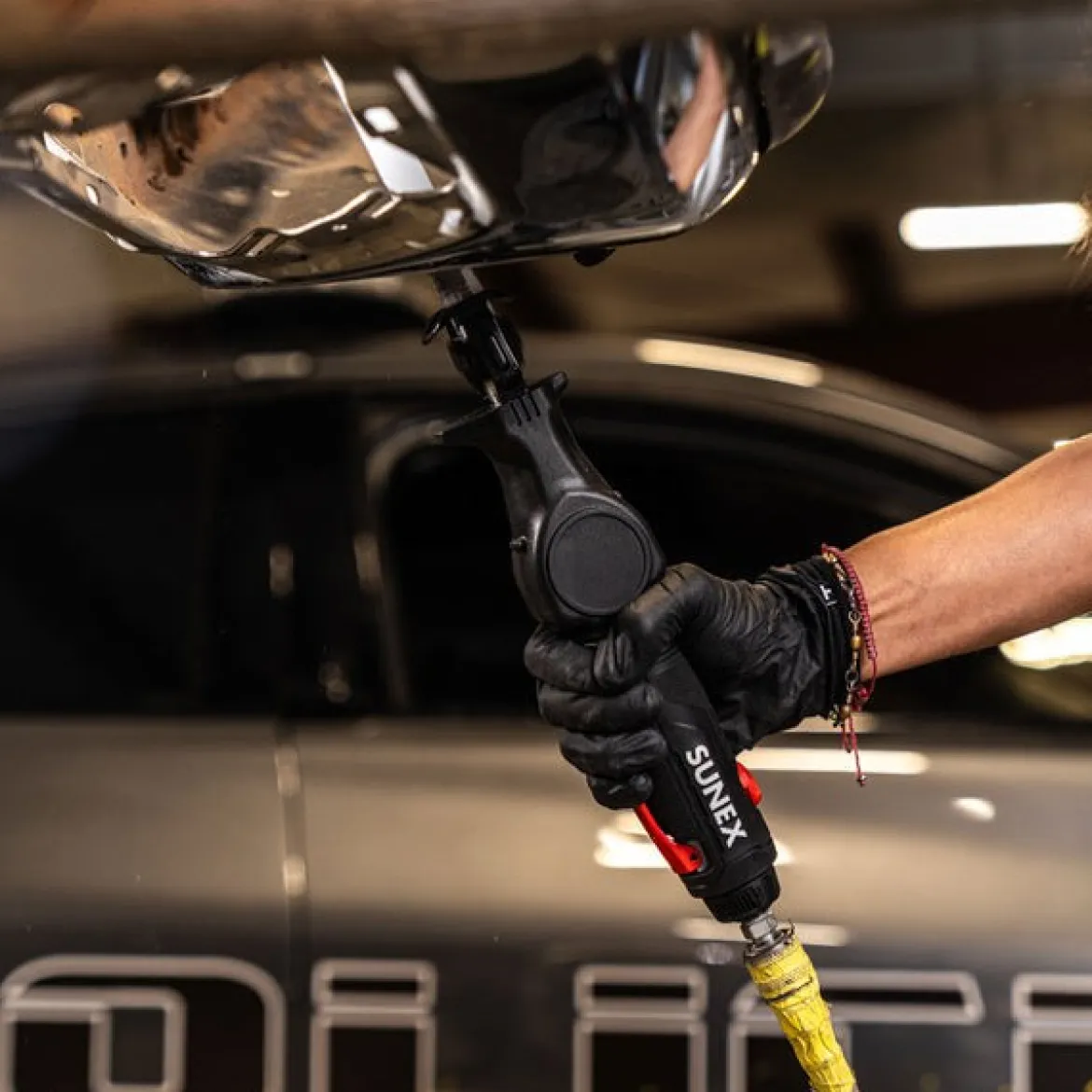

• Lightweight and Maneuverable: Allows for easy one-handed operation in tight spaces, reducing arm fatigue during extended use.

Features:

• Dual-Blade Compatibility: Accepts both traditional reciprocating blades and saber-style blades with a locking chuck.
• Composite Housing: High-impact material maintains a low tool weight of 2.43 lbs for easier handling.
• Integrated Speed Dial: Immediate adjustment for the 5,000 SPM free speed is located on the tool.
• Vibration-Dampening Grip: Rubberized overmold lowers kinetic energy transfer to the hand for a secure hold.
• Paddle Safety Trigger: Features a mechanical lockout to prevent activation when dropped or handled.
• Rear-Facing Exhaust: Directs air discharge away from the cutting path, keeping it clear of oil and dust.
• High-Volume Air Efficiency: Operates effectively at 3.5 CFM, compatible with most workshop compressors.
