Sunex Tools 10-Piece Air Hammer Chisel Standard Set in Tool Roll (ACS10)

Sunex Tools 10-Piece Air Hammer Chisel Standard Set in Tool Roll (ACS10) is a professional-grade collection of pneumatic attachments designed to handle the rigorous demands of automotive, industrial, and fabrication environments. This set is engineered to solve common mechanical challenges, such as removing seized fasteners, separating exhaust components, and cutting through heavy-gauge sheet metal. By utilizing specialized tool geometries, this kit allows technicians to perform precise tasks that standard flat chisels cannot manage effectively.

Key Features and Benefits:

• Patented Chamfer Design: This unique engineering feature significantly extends chisel life by 50% compared to standard designs. By beveling the shank, it reduces concentrated stress and wear on the air hammer’s chisel retention system.
• Enhanced Material Construction: The chisels are manufactured from specialized alloy steel that increases resistance to wear, ensuring tips remain sharp and shanks stay straight under heavy impact.
• Comprehensive Variety: The set offers a diverse range of 10 tools, including a hammer head, nut splitter, muffler cutter, and various punches for cutting, prying, and driving tasks.
• Weather-Resistant Storage: The 600D polyester roll pouch is treated with a water-repellent coating to protect the tools from moisture and spills while keeping them organized for easy transport.
• Corrosion Resistance: Each chisel is finished with a black oxide coating, providing a barrier against rust and corrosion.

Specifications:

• Shank Size: Standard .401
• Material: SCM440 High Alloy Steel
• Finish: Black Oxide
• Pouch Material: 600D Polyester
• Unrolled Dimensions: 12Ó x 16.1Ó
• Rolled Dimensions: 3.9Ó x 8.6Ó

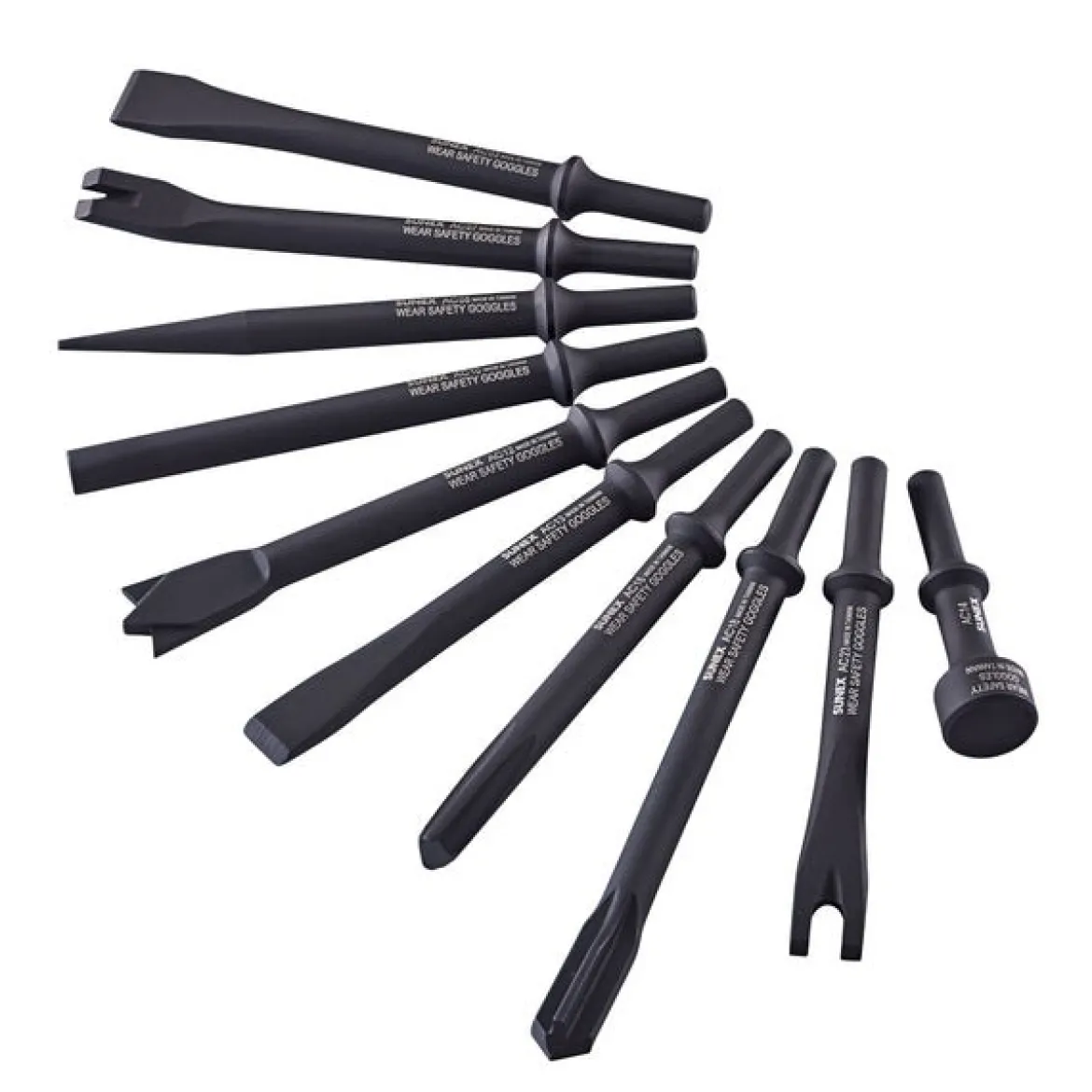

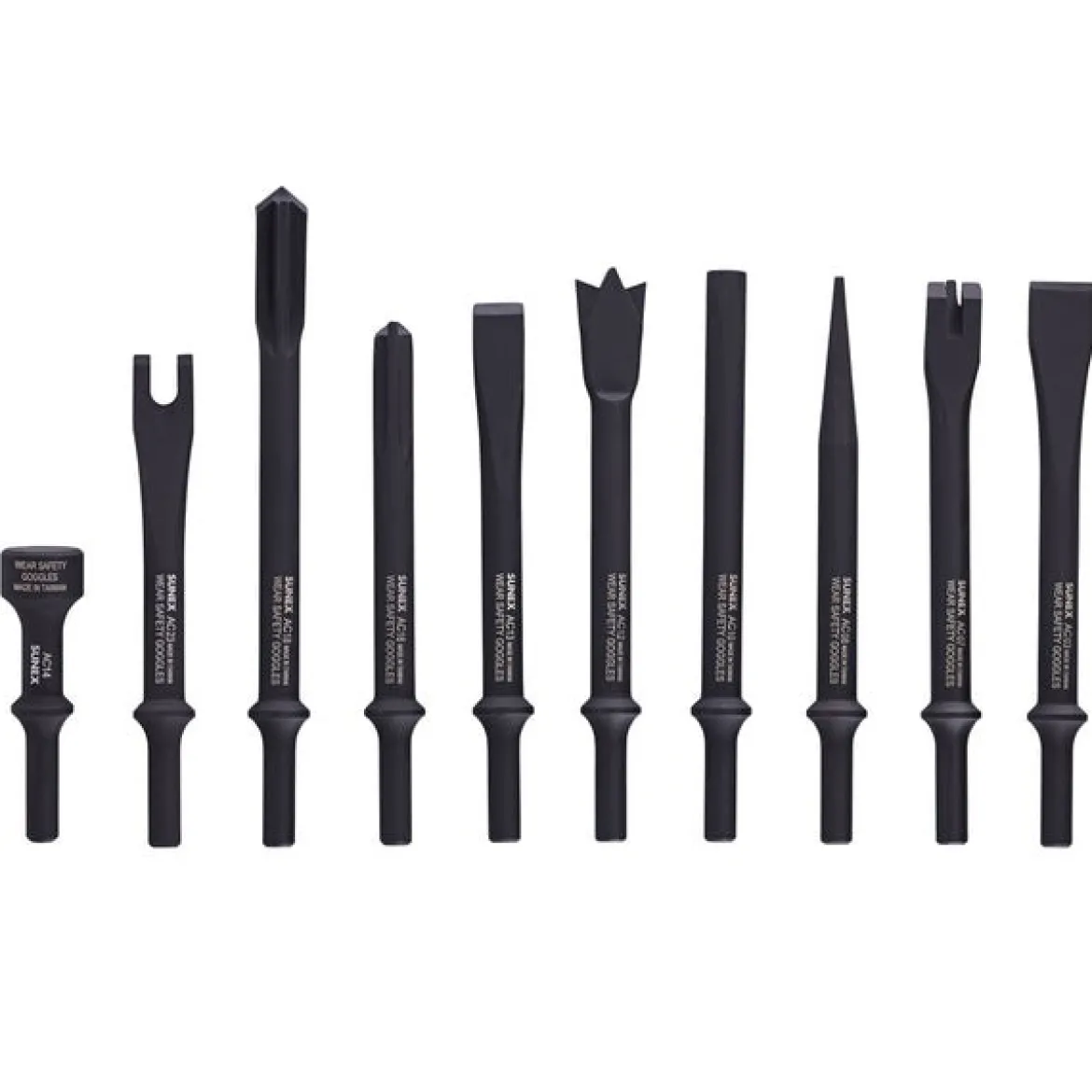

• Included in Set:
  • 3-1/2″ Hammer
  • 6″ Nut Splitter (3/4Ó x 5/16Ó tip)
  • 8Ó Muffler Cutter
  • 6-1/2″ Bushing Splitter
  • 6-1/2″ Rivet Cutter (5/8Ó tip)
  • 7Ó Dual Blade Panel Cutter
  • 7Ó Straight Punch (1/2Ó)
  • 7Ó Tapered Punch (1/8Ó)
  • 7Ó Claw Ripper & Panel Cutter
  • 7Ó Flat Chisel (13/16Ó tip)

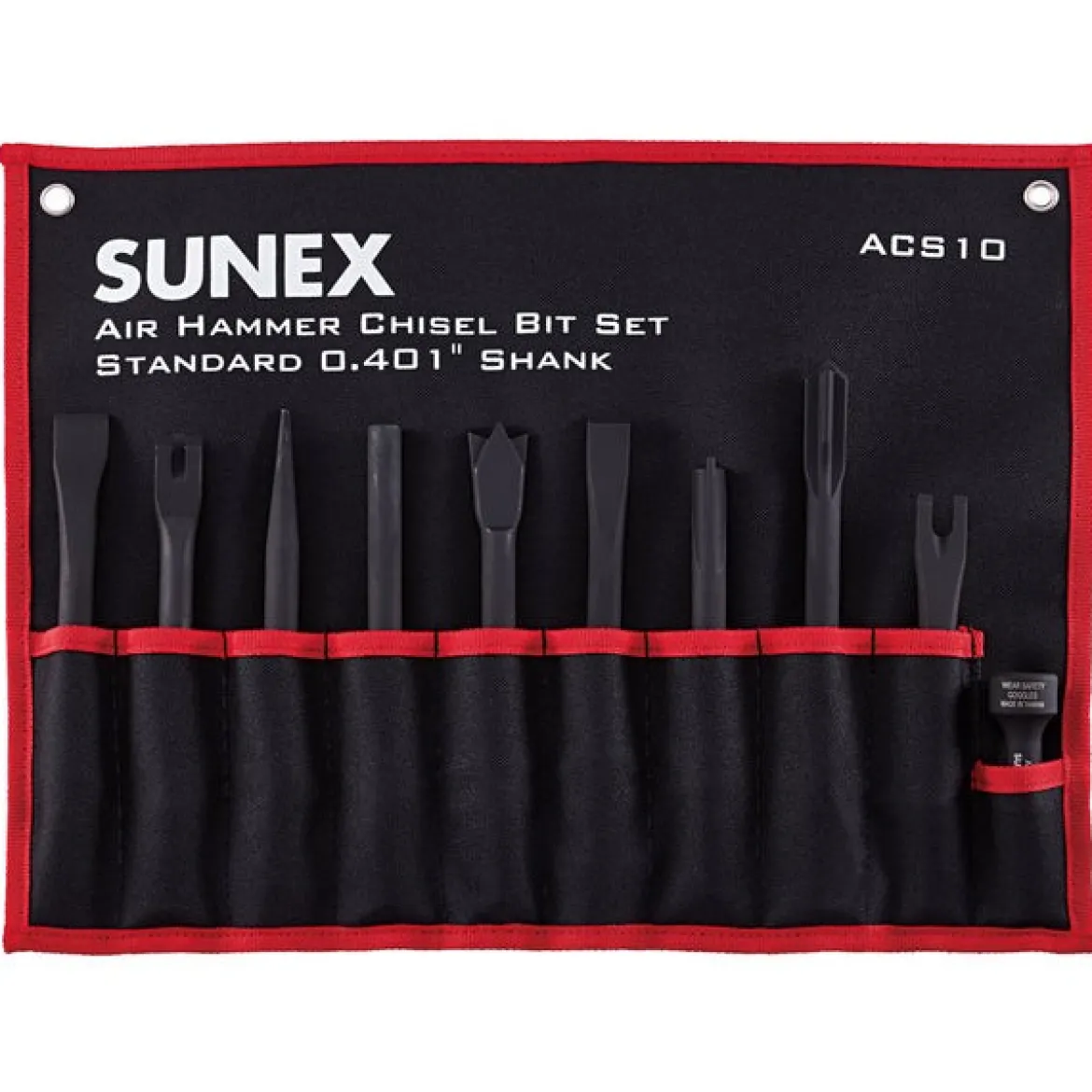

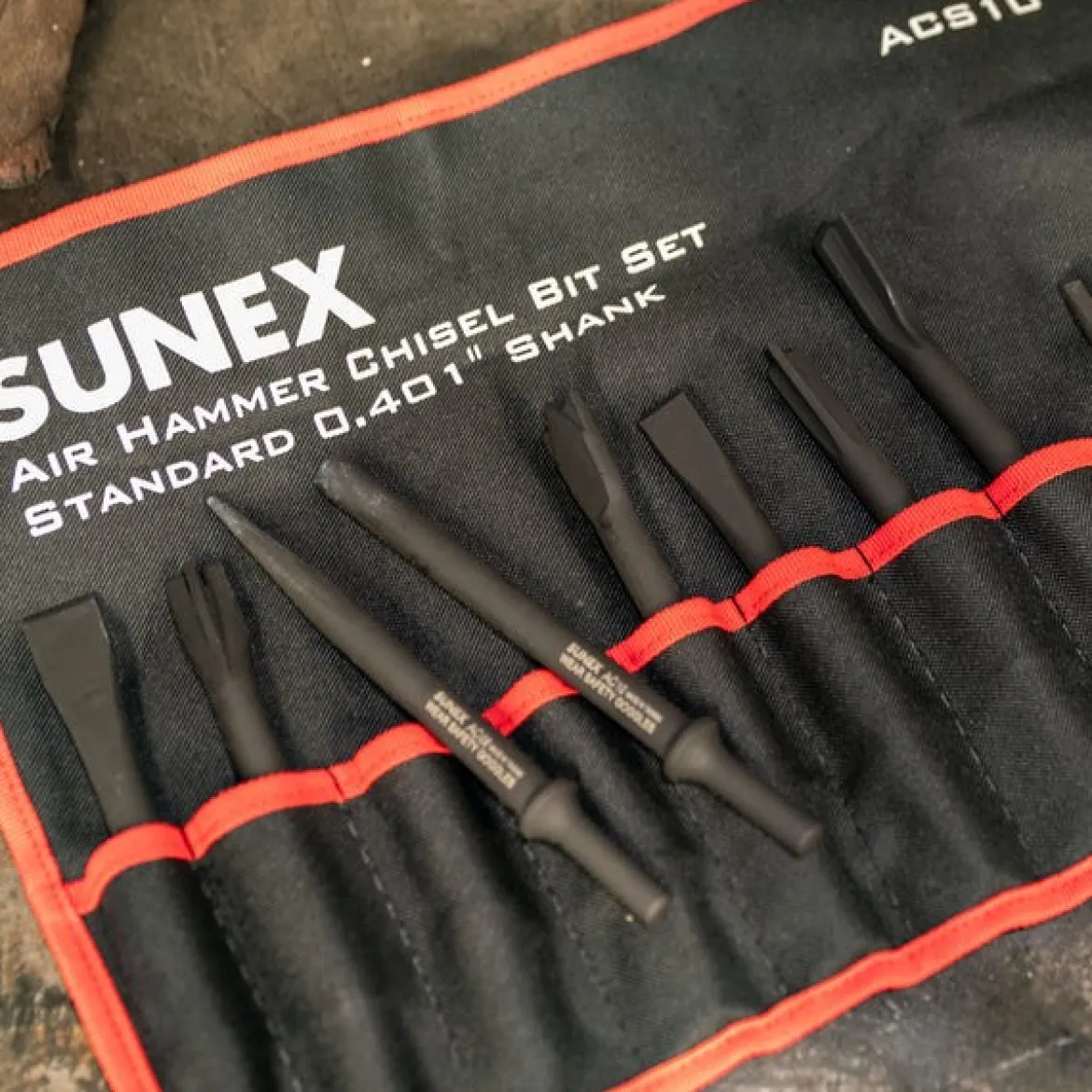

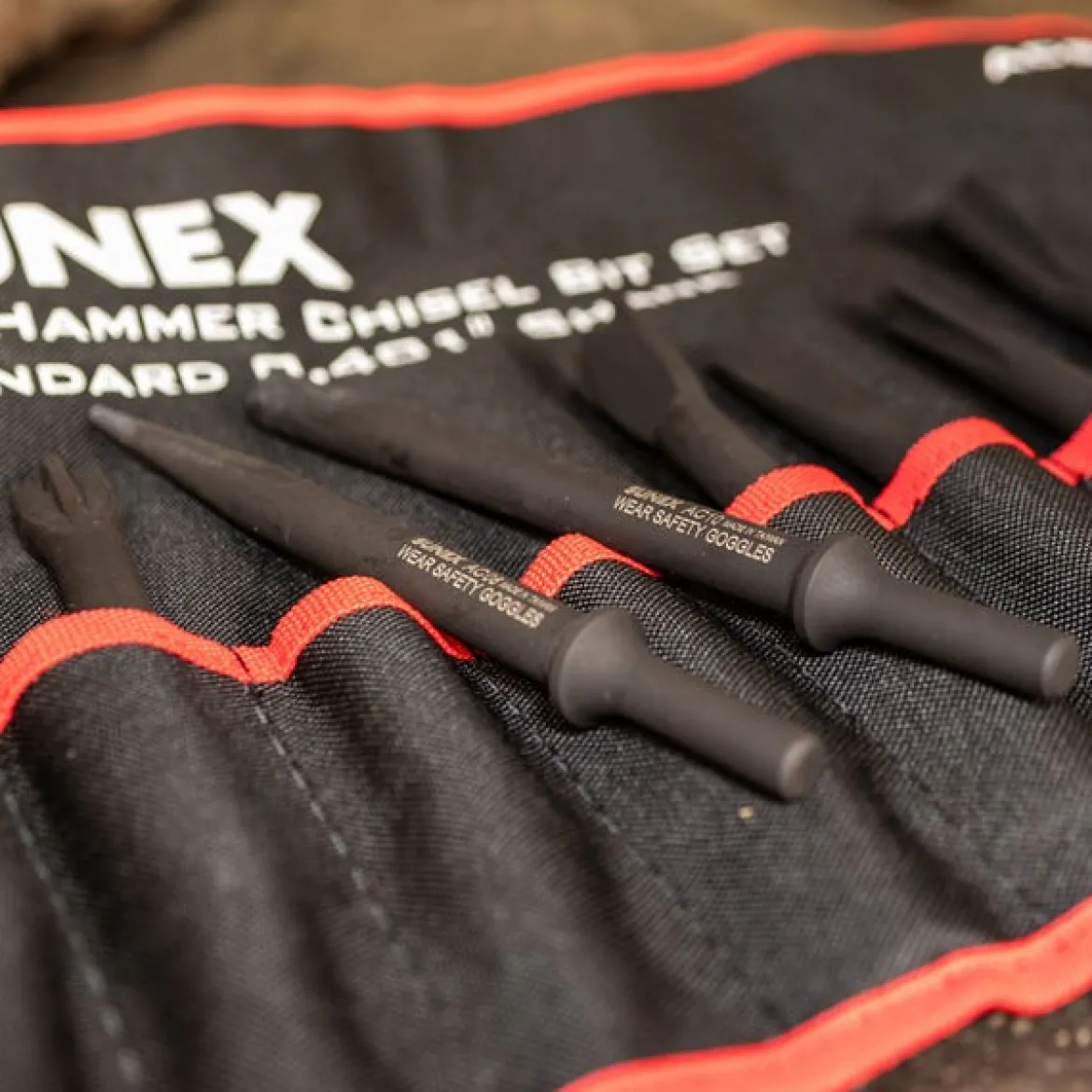

  • 600D Polyester Roll Pouch

How to Use:

• Select the Tool: Identify the specific chisel required for your task (e.g., use the Nut Splitter for seized nuts or the Muffler Cutter for exhaust pipes).
• Inspect the Shank: Ensure the .401 shank is clean and free of debris before insertion.

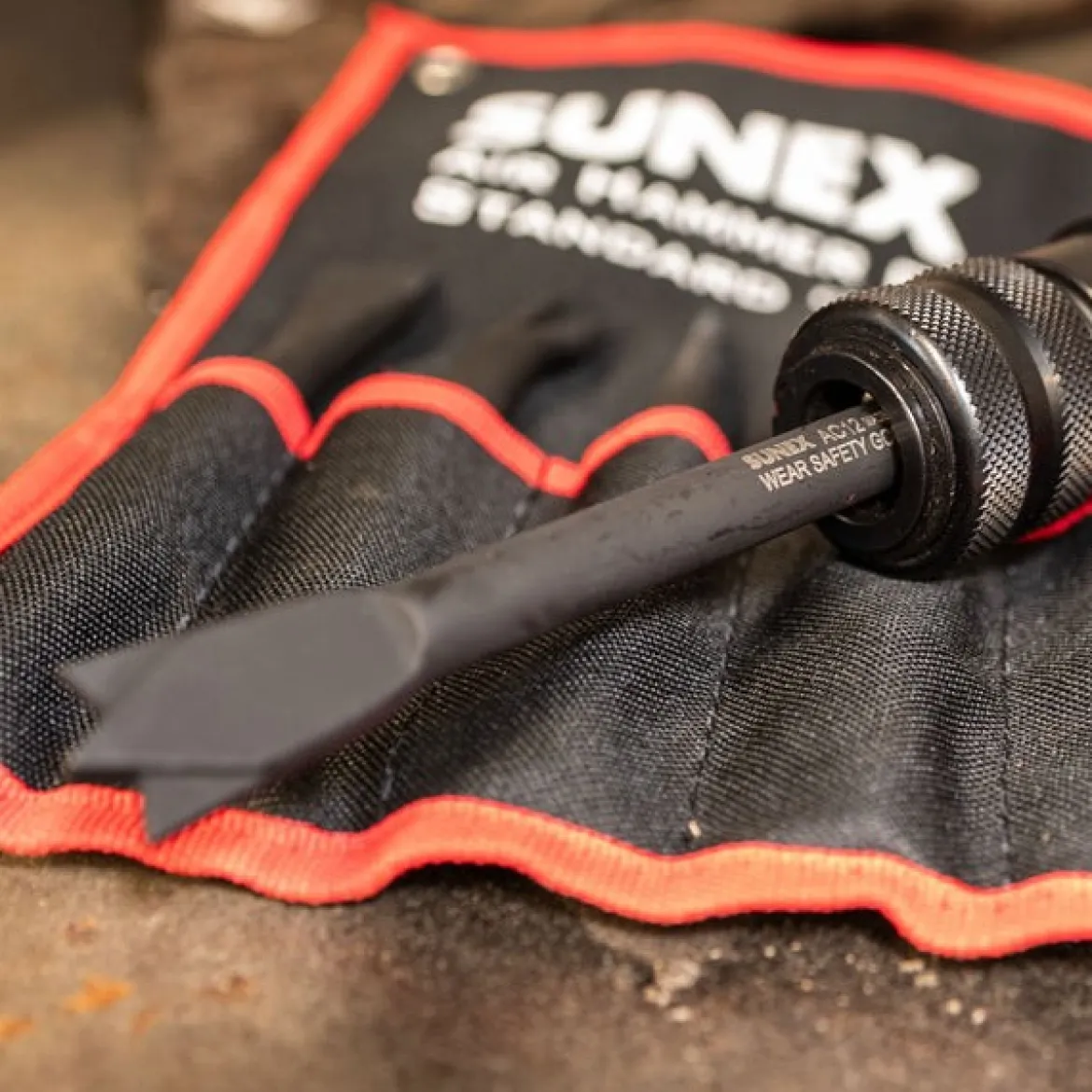

• Insert into Air Hammer: Pull back the retainer spring or quick-release chuck on your pneumatic air hammer and slide the chisel shank into the barrel.
• Secure the Retainer: Release the spring or lock the chuck, ensuring the chisel is firmly captured by the toolÕs retention system.
• Connect Air Supply: Attach your air hose to the hammer, making sure the PSI is set to the manufacturer’s recommended levels.
• Position the Chisel: Place the tip of the chisel against the workpiece at the desired angle.
• Operate: Apply firm pressure and engage the trigger. Let the tool do the work rather than forcing the bit into the material.
• Store: After use, disconnect the air supply, remove the bit, and return it to the 600D roll pouch to prevent loss or moisture exposure.

Benefits of Using Sunex Tools 10-Piece Air Hammer Chisel Standard Set in Tool Roll (ACS10):

• Integration of Patented Chamfered Shank: Safeguards your pneumatic equipment by reducing common issues like “mushrooming” and stress cracks, lowering long-term tool costs.

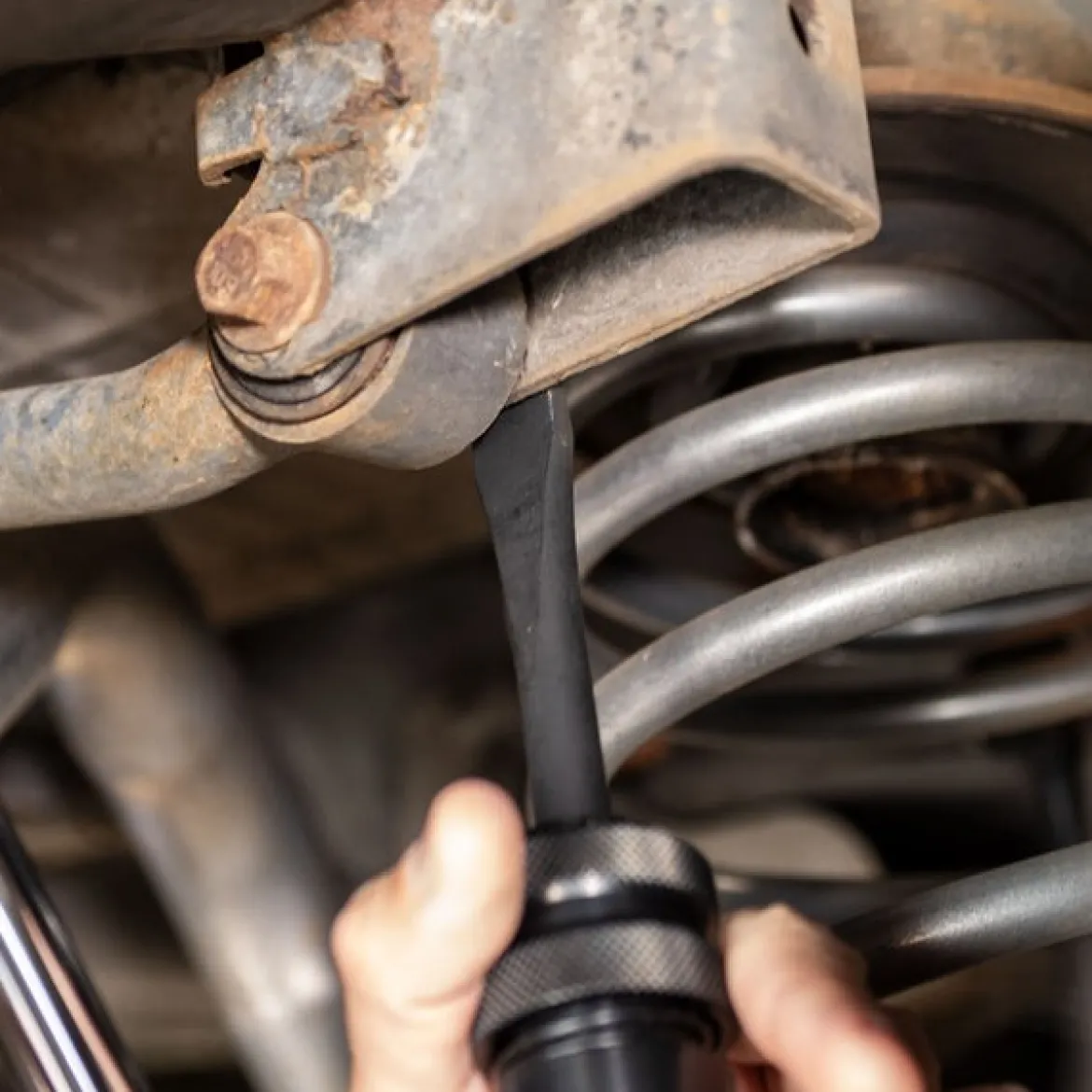

• Specialized Bits: Tools like the dual-blade panel cutter and bushing splitter reduce the time spent on difficult removals for faster automotive repairs.
• Versatile Addition: The standard .401 shank ensures compatibility with most professional-grade pneumatic air hammers, enhancing your toolkit.

Features:

• Standard .401 Shank: Engineered for universal compatibility with most professional-grade pneumatic air hammers.
• SCM440 Steel: High-strength alloy construction designed to withstand high-BPM (blows per minute) impact without chipping.
• Water-Repellent Pouch: Heavy-duty canvas storage with a hook-and-loop closure that keeps tools dry and organized.
• Chamfered Shank Edge: A patented geometry that prevents sharp-edge friction against the hammer’s internal retainer.
• Wide Tool Selection: Includes ten distinct shapes for multi-functional use, including hammers, rippers, splitters, and punches.
• Black Oxide Coating: Provides a protective layer that resists chemical damage and surface oxidation.
• Compact Storage Profile: Roll-up design minimizes space required in a technician’s service cart or toolbox.
