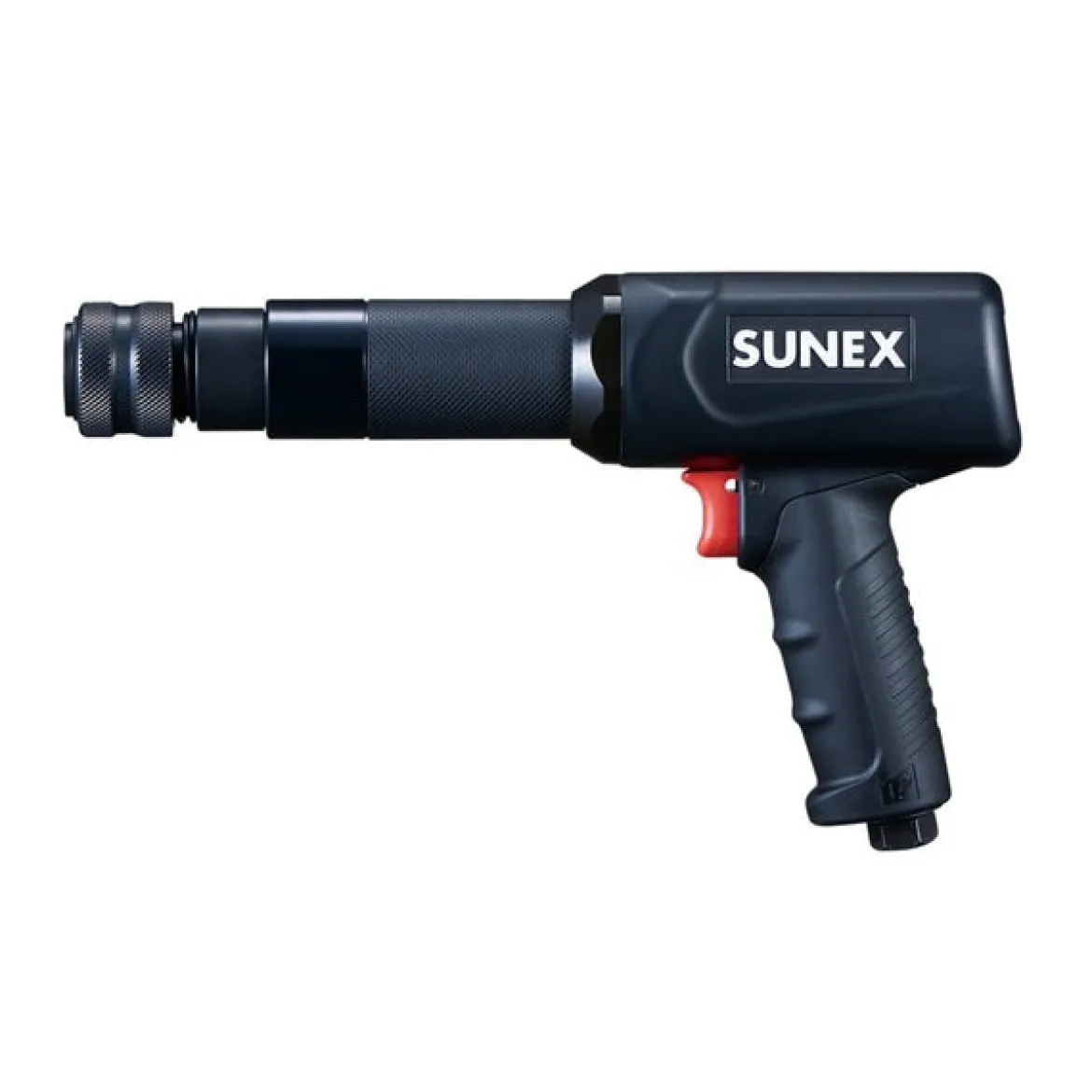

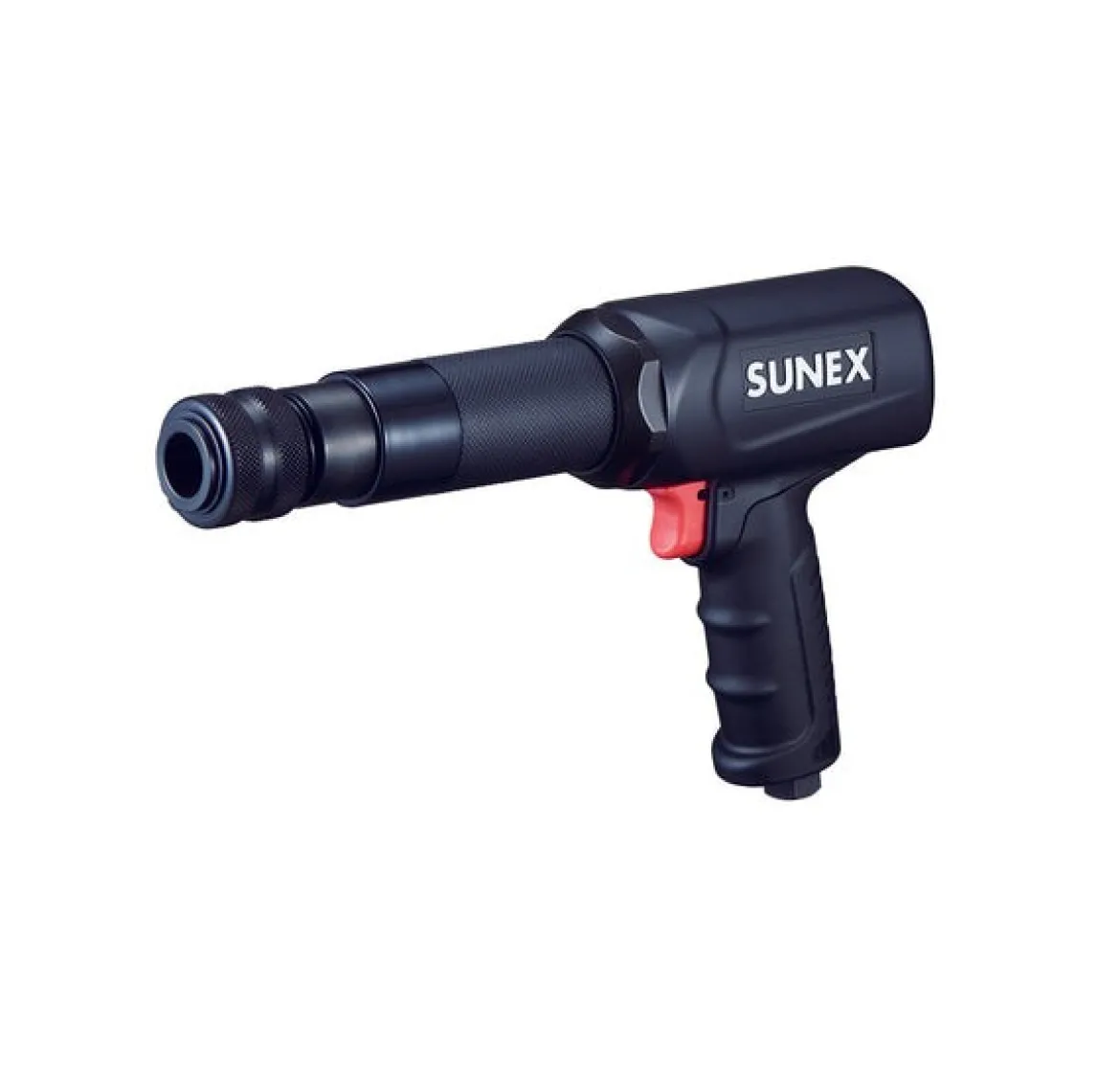

Sunex Tools Heavy Duty Long Barrel Air Hammer Kit (SX2302K)

Sunex Tools Heavy Duty Long Barrel Air Hammer Kit (SX2302K) is a high-performance pneumatic solution engineered for the most demanding automotive and industrial applications. Designed to handle tasks that standard air hammers cannot, this tool focuses on delivering high-impact force through a 3.75-inch stroke length and a powerful 2,300 BPM motor. Whether the job requires cutting through large-diameter bolts, driving out seized suspension pins, or separating ball joints, the SX2302K provides the necessary mechanical advantage.

Key Features and Benefits:

• Extended Stroke Length: The 3.75-inch stroke provides the travel distance required for high-impact blows, making it effective for heavy-duty demolition and separation.
• High-Frequency Impact: Operating at 2,300 BPM, the tool provides rapid-fire hammering for efficient material removal and fastener loosening.
• Vibration Reduction: The patented damping system and active air spring technology significantly decrease the amount of vibration transferred to the user.
• Precision Control: A variable-speed trigger allows the user to start the tool slowly for precise placement and then increase to full power for maximum impact.
• Debris Management: The front exhaust design ensures that air and metal fragments are blown away from the operator, maintaining a clear line of sight and a cleaner environment.

Specifications:

• Blows Per Minute: 2,300 BPM
• Stroke Length: 3.75″
• Shank Size: 0.401″
• Body Material: Die-Cast Aluminum
• Barrel Material: Precision-Machined Steel
• Piston Material: Hardened Steel

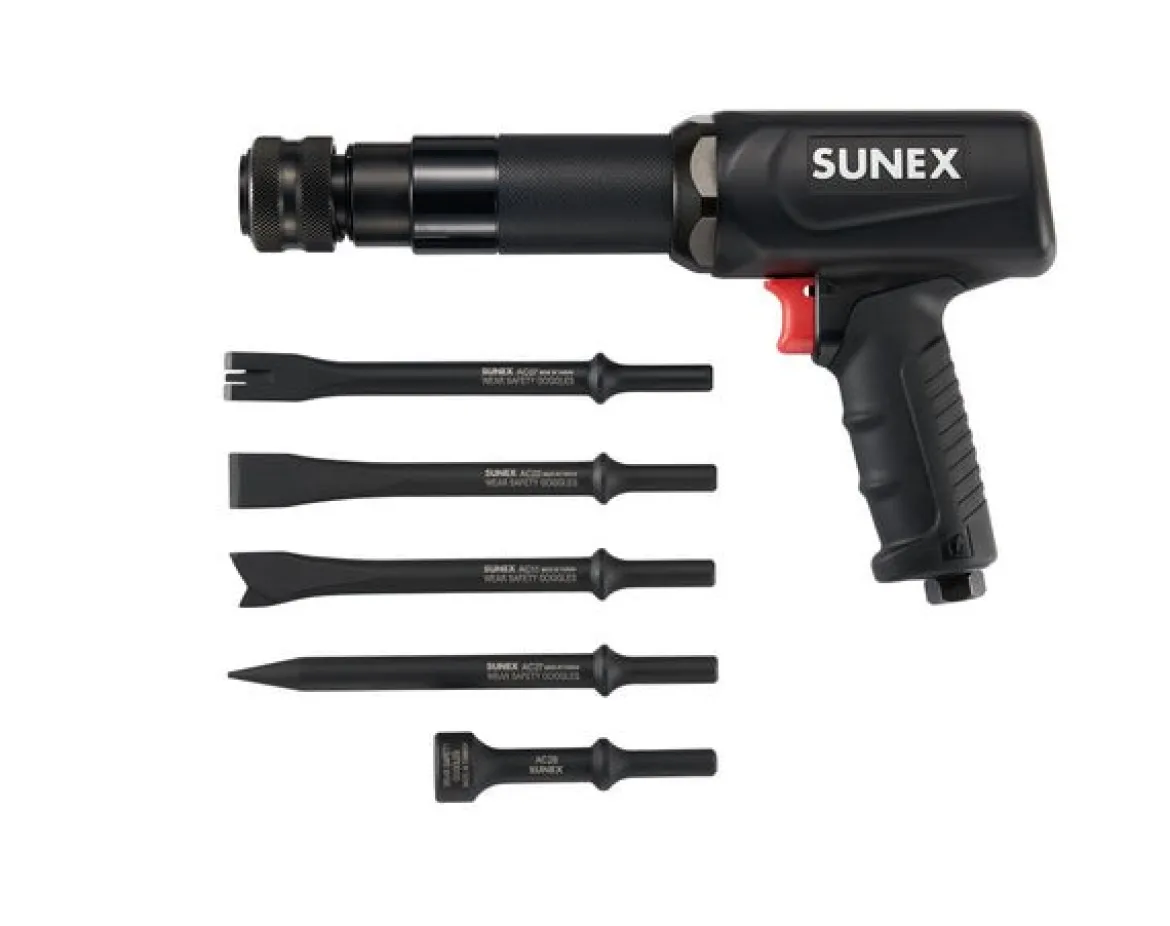

• Included in Kit: SX2302 Air Hammer, Quick-Change Chuck Retainer, 4″ Hammer, 7″ Tapered Punch, Single Blade Panel Cutter, Cold Chisel, Deluxe Panel Cutter

How to Use:

• Preparation: Before connecting to an air source, add a few drops of pneumatic tool oil into the air inlet to ensure internal lubrication.
• Chisel Installation: Pull back the collar on the quick-change chuck retainer and insert the desired 0.401″ shank chisel. Release the collar to lock the chisel in place.
• Air Connection: Attach the tool to a 1/4″ NPT air hose with a recommended minimum hose size of 3/8″ for optimal performance.
• Positioning: Place the tip of the chisel firmly against the workpiece (e.g., a bolt head or ball joint) before engaging the trigger.
• Operation: Gently squeeze the variable-speed trigger to start the hammering action. Once the chisel is seated and stable, apply more pressure to the trigger for full power.
• Debris Clearance: Allow the front exhaust to clear away rust and metal flakes as you work, ensuring visibility of the impact point.
• Post-Use: Disconnect the air supply and wipe down the tool and chisels before storing them in the provided kit container.

Benefits of Using Sunex Tools Heavy Duty Long Barrel Air Hammer Kit (SX2302K):

• Professional-Level Solution: Ideal for mechanical repairs that involve seized or rusted components, reducing physical strain on users.
• Recoil Management: Active air spring technology absorbs recoil so your arms donÕt have to, minimizing fatigue.
• Durable Accessories: Improved chisel material and patented chamfer design reduce the need for frequent replacements.
• Lightweight and Strong: The combination of a lightweight aluminum body and a powerful steel internal drive system provides easy maneuverability without sacrificing strength.

Features:

• Pneumatic Power: Utilizes a 2,300 BPM motor for rapid bolt cutting and pin driving.
• Shock Absorption: Integrated air springs specifically designed to neutralize high-impact recoil.
• Standard Shank Compatibility: Fits all 0.401″ round shank chisels for universal accessory use.
• Hardened Internals: Piston and barrel are heat-treated to withstand high-pressure pneumatic cycles.
• Variable Trigger: Provides a linear power curve for better control during delicate starts.
• Advanced Chisel Geometry: Chamfered chisel shanks are engineered to resist breakage and mushrooming.
• Aluminum Housing: Die-cast construction provides a high strength-to-weight ratio.
• Integrated Retainer: Quick-release chuck system eliminates the need for manual spring clips.
