Thexton Universal Coil Plus Adapter (460)

The Thexton Universal Coil Plus Adapter (460) is a crucial diagnostic tool for automotive professionals. It provides a safe and efficient way to access ignition coil and other electrical circuits for testing. This adapter allows technicians to perform critical diagnostic checks, such as voltage and waveform analysis, without risking damage to a vehicle’s wiring harness. It is an indispensable tool for anyone who values accuracy and the integrity of a vehicle’s electrical system.

KEY FEATURES AND BENEFITS:

• Safe and Non-Damaging Connection: Enables direct testing of circuits without piercing or stripping wires.
• Permanent Snap-On Adapters: Can be left on wires for future testing, streamlining repeat diagnostics.
• Time-Saving: Simplifies complex diagnostic tasks, allowing faster and more accurate testing.
• Efficient Workflow: Provides a reliable connection point for repeated access, reducing diagnostic time on subsequent jobs.

SPECIFICATIONS:

• Part Number: 460
• Manufacturer: Thexton Manufacturing Co.
• Circuit Compatibility: 14 to 22 gauge wiring

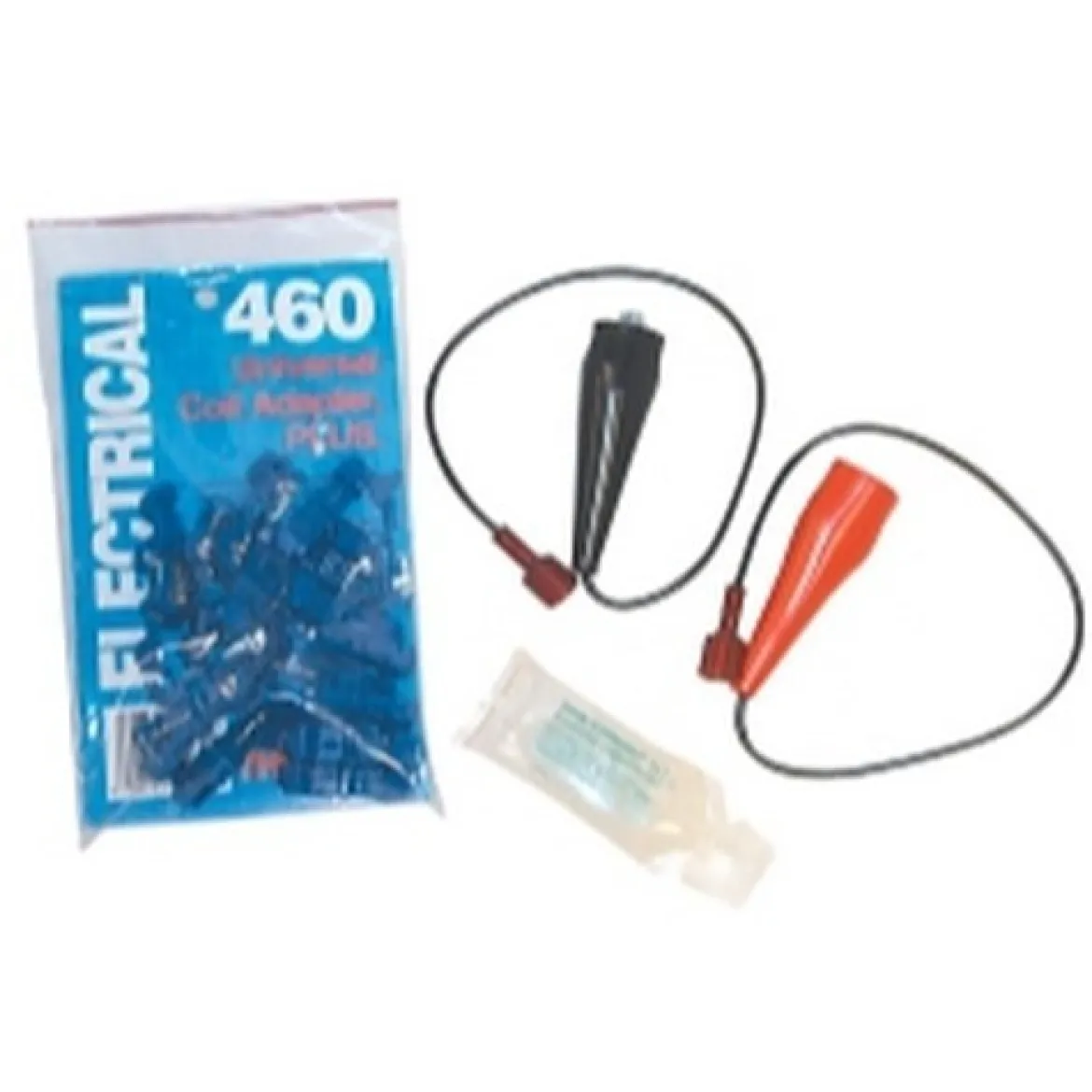

• Included in Purchase:
• 2 Jumper Wires
• 25 Wire Adapters
• 1 Tube of Silicone Sealer

HOW TO USE:

• Select the Adapter: Choose the appropriate plastic snap-on adapter from the kit.
• Attach to Wire: Carefully place the adapter around the circuit wire to be tested.
• Secure the Connection: Snap the two halves of the adapter together for a firm fit.
• Connect Jumper Wires: Insert the included jumper wires into the adapter’s terminal.
• Connect Test Equipment: Attach a multimeter, oscilloscope, or other diagnostic tools to the jumper wires.
• Perform Diagnosis: Run the necessary tests on the circuit.
• Finalize: Apply the provided silicone sealer if leaving the adapter in place permanently.

BENEFITS OF USING THE THEXTON UNIVERSAL COIL PLUS ADAPTER (460):

• Reliable Circuit Testing: Provides a repeatable method for testing electrical circuits without causing damage.
• Protects Wiring Harness: Prevents costly repairs by avoiding wire piercing or stripping.
• Time Efficiency: Reduces diagnostic time by offering permanent access points for future tests.
• Improved Accuracy: Ensures precise test results for more effective repairs.

FEATURES:

• Safe Access: Provides a secure point for testing vehicle electrical circuits.
• Non-Invasive: Eliminates the need for wire piercing or stripping.
• Permanent Snap-On Connectors: Allow for repeated, quick diagnostics.
• Circuit Compatibility: Works with 14 to 22 gauge wiring.
• Diagnostic Tool Compatibility: Designed for multimeters, oscilloscopes, and standard testing equipment.
• Complete Kit: Includes all components needed for installation and testing.
