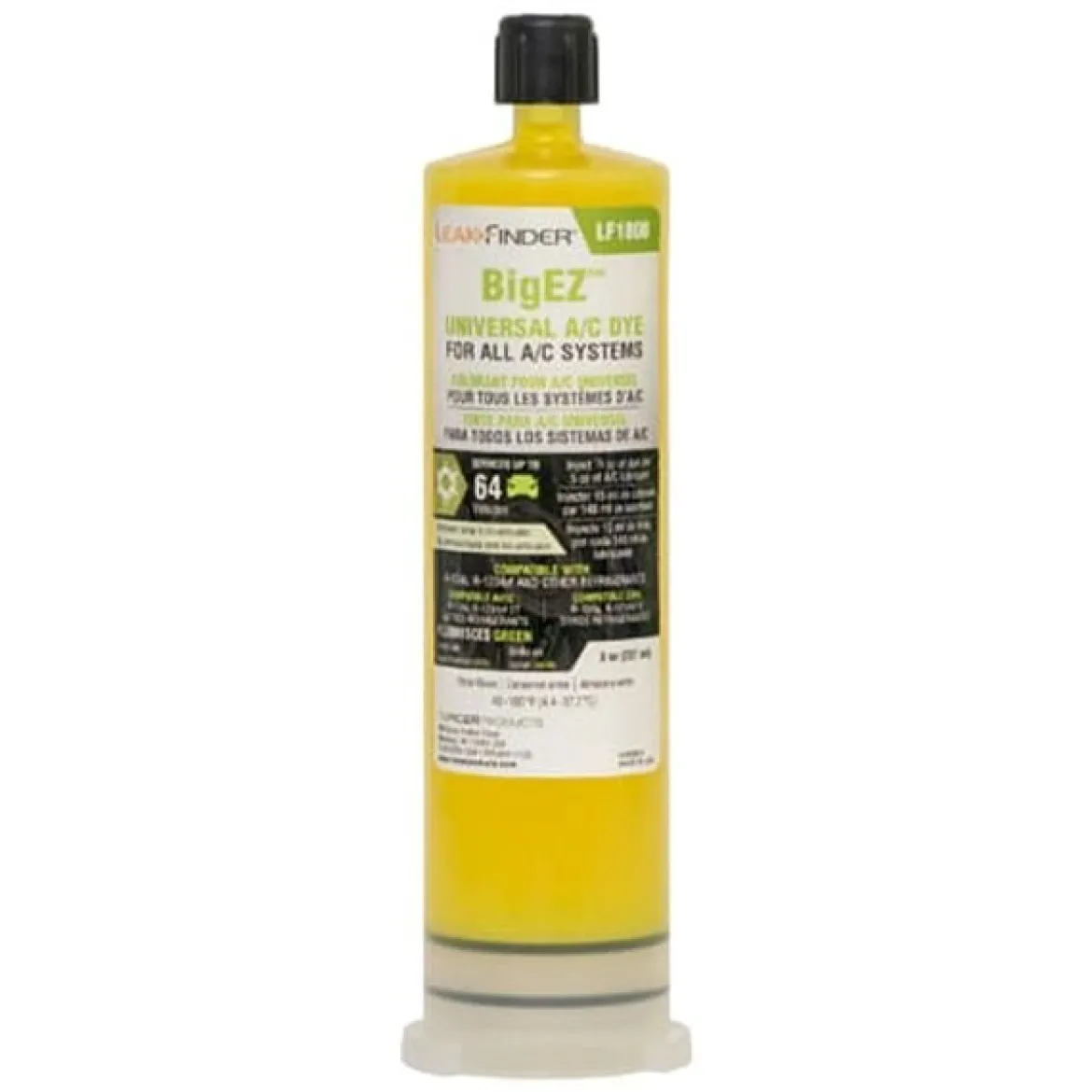

Tracerline 8oz BIGEZ Universal A/C Dye Cartridge (LF1800CS)

The Tracerline 8oz BIGEZ Universal A/C Dye Cartridge (LF1800CS) is an essential tool for precise and efficient leak detection in a wide array of automotive air conditioning systems. This advanced fluorescent dye is specifically formulated to quickly identify even the smallest leaks, helping maintain optimal A/C performance and preventing costly refrigerant loss. Its universal compatibility ensures it works seamlessly with popular refrigerants like R-1234yf and R-134a, as well as being safe for use in EV/Hybrid vehicle A/C systems.

KEY FEATURES AND BENEFITS:

• Universal A/C Compatibility: Works with R-1234yf, R-134a, and other common refrigerants, including EV/Hybrid A/C systems, offering broad application versatility.
• High Capacity Multi-Dose: Each 8 oz cartridge contains enough dye to service up to 64 vehicles, providing excellent value and efficiency for multiple jobs.
• Easy Injection System: Designed to fit and operate with most standard caulking guns, simplifying the injection process and reducing the need for specialized tools.
• Precise Leak Identification: Fluoresces brightly under UV light, allowing for quick and accurate pinpointing of A/C system leaks, even microscopic ones.
• OEM Grade Formulation: Co-solvent free and meets or exceeds SAE standard J2297, ensuring high quality and system safety.
• Long-Term Leak Monitoring: The dye remains safely within the A/C system, enabling continuous leak detection for future preventative maintenance.

SPECIFICATIONS:

• Product Name: Tracerline 8oz BIGEZ Universal A/C Dye Cartridge
• Part Number: LF1800CS
• Volume: 8 oz (237 ml)
• Compatibility: R-1234yf, R-134a, and other commonly used refrigerants. Safe for EV/Hybrid systems.
• Service Capacity: Services up to 64 vehicles per cartridge.

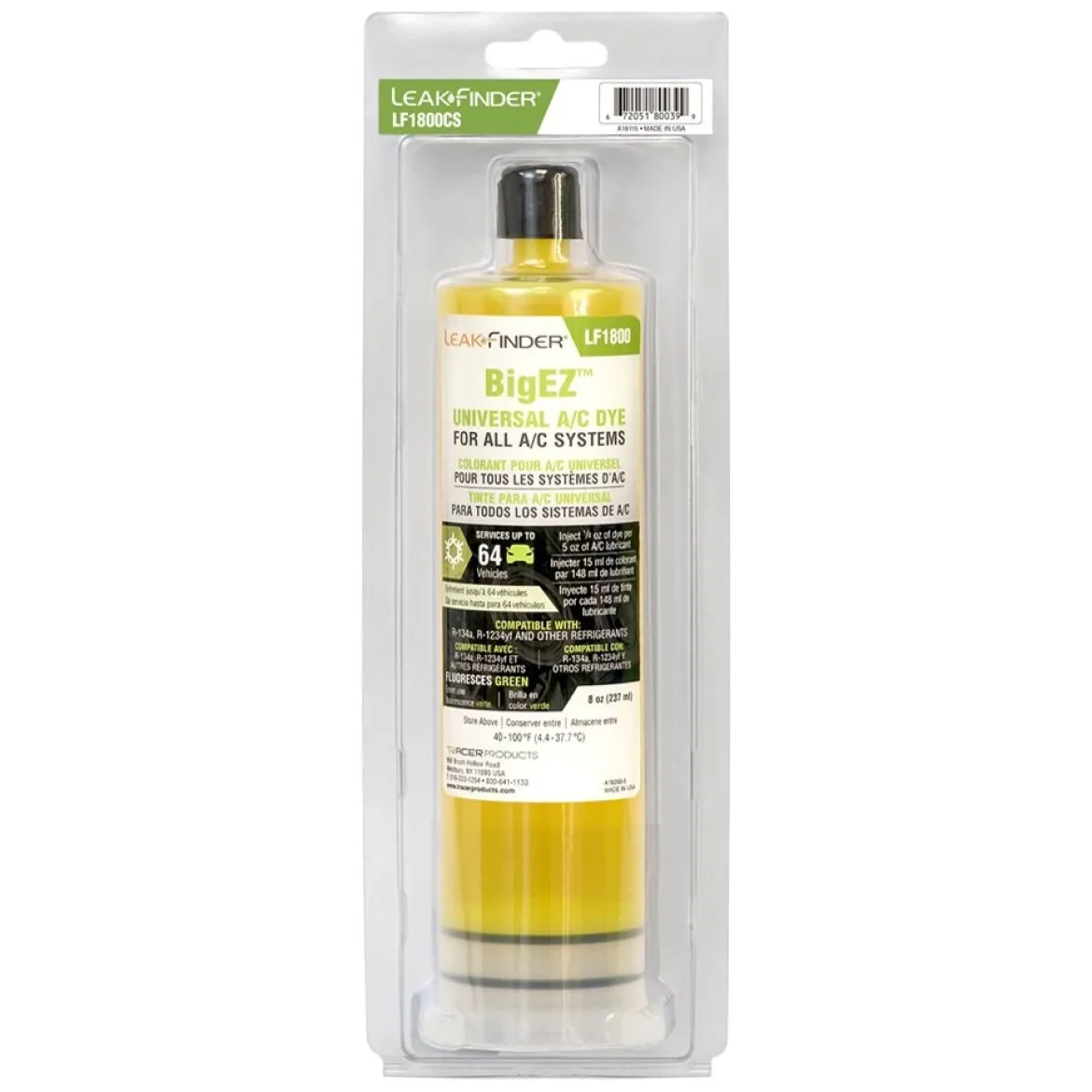

• Includes: One 8 oz BIGEZ Universal A/C Dye Cartridge (LF1800CS) in full-color, hanging clamshell packaging.

HOW TO USE:

1. Prepare the System: Ensure the A/C system is slightly pressurized before injecting the dye. If the system is completely empty, it may need a slight charge of refrigerant to circulate the dye.
2. Load the Cartridge: Insert the Tracerline 8oz BIGEZ Universal A/C Dye Cartridge (LF1800CS) into a compatible caulking gun-style dye injector.
3. Connect to System: Connect the dye injector hose to the A/C system’s low-side service port.
4. Inject Dye: Squeeze the trigger of the caulking gun to inject the appropriate amount of dye into the A/C system. Refer to system specifications for the recommended dye amount, though one full cartridge services 64 vehicles.
5. Circulate Dye: Run the vehicle’s A/C system for at least 15-20 minutes to allow the dye to thoroughly mix with the refrigerant and circulate throughout the entire system.
6. Inspect for Leaks: Using a UV leak detection flashlight, thoroughly inspect all A/C components, including hoses, fittings, compressor, condenser, evaporator, and dryer. Leaks will appear as a bright green glow where the dye has escaped.
7. Clean Up: After use, disconnect the injector and clean any excess dye from the service port area.

BENEFITS OF USING TRACERLINE 8OZ BIGEZ UNIVERSAL A/C DYE CARTRIDGE (LF1800CS):

• Identifies even the most challenging and difficult-to-find A/C leaks, saving diagnostic time.
• Reduces overall maintenance costs by enabling early detection and repair of leaks, preventing major system failures.
• Minimizes refrigerant loss, which is beneficial for both the environment and the system’s efficiency.
• Provides a professional-grade leak detection solution trusted by industry experts and OEMs.
• Offers a cost-effective solution for both professional workshops handling many vehicles and individuals performing their own maintenance.

FEATURES:

• Formulated as an Ester dye.
• Designed for a quick and visible green fluorescence under UV light.
• Manufactured by Tracerline (Tracer Products), inventors of fluorescent leak detection.
• Safe for continuous use within the A/C system.
• Co-solvent free formulation.
• Compact 8 oz cartridge size.
