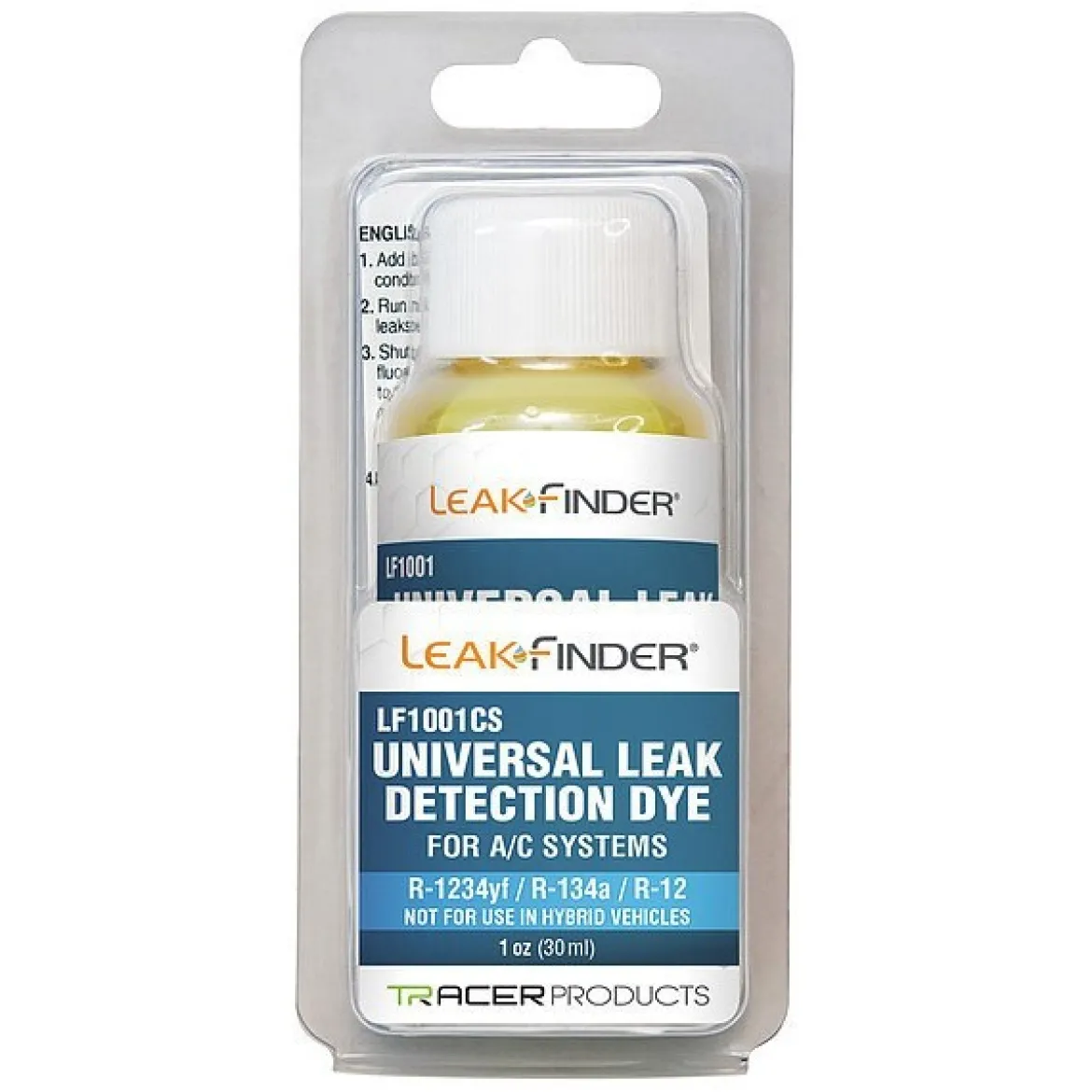

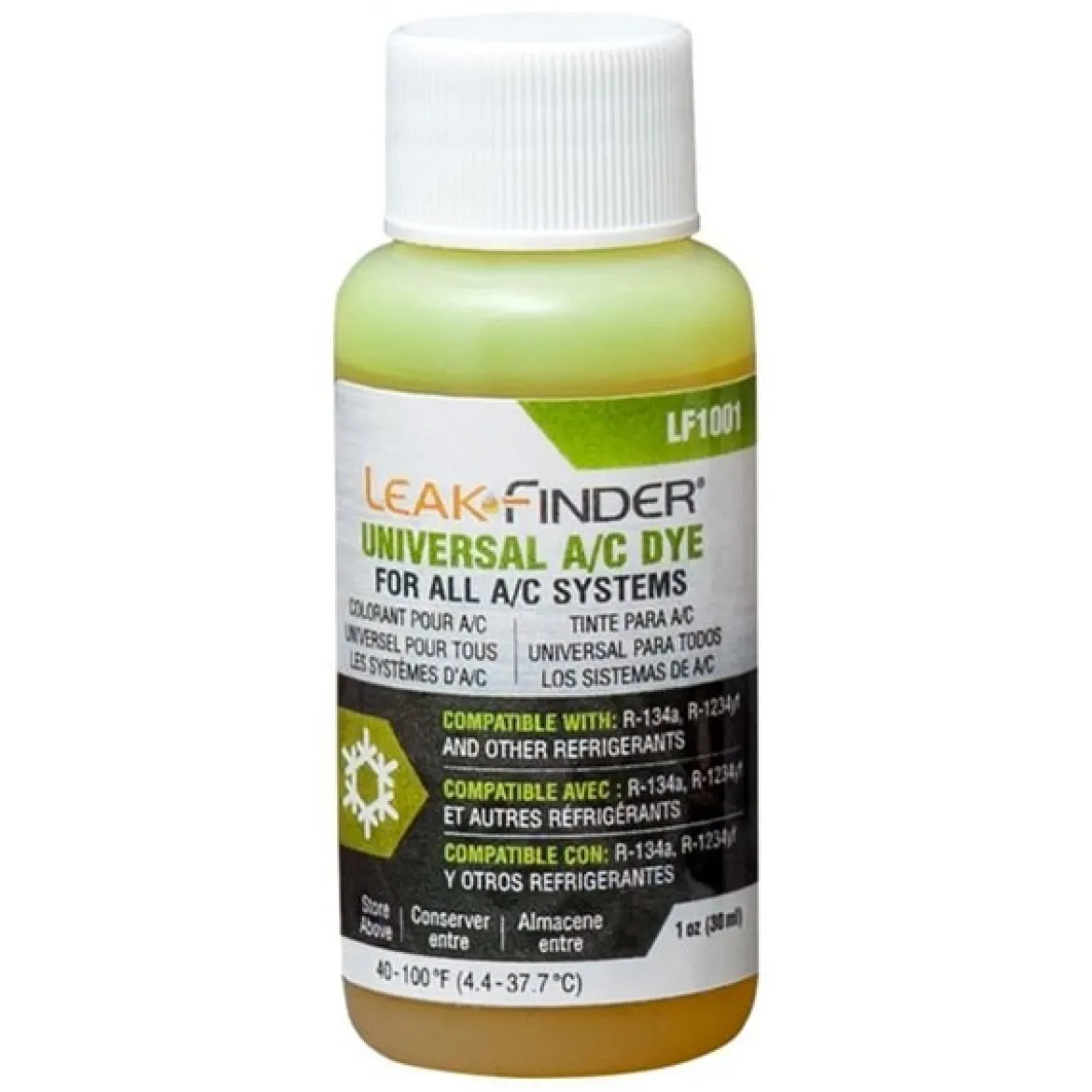

Tracerline LeakFinder 1oz Bottle Universal A/C Dye (LF1001CS)

Tracerline LeakFinder 1oz Bottle Universal A/C Dye (LF1001CS) is a professional-grade diagnostic solution formulated to quickly and accurately identify refrigerant leaks in automotive air conditioning systems. Containing highly concentrated fluorescent green dye, this 1 oz (30 ml) bottle is designed to circulate with the system’s refrigerant and lubricant.

KEY FEATURES AND BENEFITS:

• Professional-Grade Detection: Engineered for precise detection of refrigerant leaks in automotive air conditioning systems.
• High Visibility: Fluorescent green dye glows brightly under UV light to reveal leak points.
• Universal Compatibility: Works with R-134a, R-1234yf, and other common refrigerants; safe for EV/Hybrid systems.
• Efficient Use: One 1 oz bottle services up to four vehicles.
• System Safe: Will not alter lubricant properties or affect system performance.
• Compliant: Meets SAE J2297 standards for refrigerant leak detection.
• Eco-Friendly Packaging: Packaged in full-color, environmentally conscious materials.

SPECIFICATIONS:

• Container Size: 1 oz (30 ml) bottle
• Dye Color: Fluorescent Green
• Compatibility: R-134a, R-1234yf, and other widely used refrigerants; safe for EV/Hybrid systems.
• Service Capacity: Services up to 4 vehicles per bottle.
• Standards: Meets SAE J2297 standards for refrigerant leak detection.
• Included in Product: 1 oz (30 ml) bottle of universal A/C dye.

HOW TO USE:

1. Prepare the System: Ensure the A/C system has some refrigerant pressure. If the system is completely empty, it may need a small charge to circulate the dye.
2. Add the Dye: Use an appropriate application syringe and coupler (sold separately) to inject the 1 oz of dye directly into the low-side service port of the A/C system. Follow the instructions for your specific injection tool.
3. Circulate the Dye: Run the vehicle’s A/C system on high for at least 10-15 minutes (or as recommended by your vehicle’s manual) to allow the dye to thoroughly mix with the refrigerant and circulate throughout the system.
4. Inspect for Leaks: Using a UV leak detection lamp (sold separately), thoroughly inspect all A/C components, hoses, fittings, and connections. Pay close attention to compressor seals, evaporator drain tubes, condenser fins, and O-rings.
5. Locate the Leak: Any areas where refrigerant is escaping will show a bright fluorescent green glow under the UV light, clearly indicating the leak’s location.
6. Clean Up: After locating and repairing the leak, it is recommended to clean any visible dye residue with a suitable dye cleaner/remover.

BENEFITS OF USING TRACERLINE LEAKFINDER 1OZ BOTTLE UNIVERSAL A/C DYE (LF1001CS):

• Provides accurate and visual identification of refrigerant leaks, even those that are tiny or intermittent.
• Helps save time and effort by directly pinpointing leak sources, eliminating guesswork.
• Remains in the A/C system to assist in future leak detection or verify repairs.
• Contributes to preventive maintenance by allowing early detection of potential issues.
• Designed to be non-damaging to A/C system components, lubricants, or performance.

FEATURES:

• High-visibility fluorescent green color under UV light.
• One 1 oz bottle sufficient for multiple vehicle applications.
• Compatible with a broad range of refrigerant types.
• Safe for use in modern EV and Hybrid vehicle A/C systems.
• Conforms to industry-recognized leak detection standards.
• Packaged with environmental considerations in mind.
• Formulated to circulate effectively without system degradation.
