Tracerline POE-Based EV A/C Dye UV Leak Detection Kit (TPOPUV20EV)

The Tracerline POE-Based EV A/C Dye UV Leak Detection Kit (TPOPUV20EV) is a complete, professional-grade UV leak detection kit specifically engineered for the unique demands of electric and hybrid vehicle A/C systems. As these vehicles use electrically driven compressors and other high-voltage components, a standard leak detection dye could compromise the system’s electrical integrity. This kit solves that problem with a specialized, high-dielectric, POE-based dye that is safe for all EV system components. It’s the ideal tool for automotive technicians who need to accurately and safely diagnose A/C leaks in modern hybrid and electric cars. The TPOPUV20EV provides everything you need for the job, from dye injection and leak inspection to final cleanup.

KEY FEATURES AND BENEFITS:

• EV-Specific Dye: The kit contains a specialized, high-dielectric POE-based dye that protects all EV system components, including electrically driven compressors, by maintaining the system’s resistivity.
• Dual-Refrigerant Compatibility: The TPOPUV20EV is compatible with both R-134a and R-1234yf A/C systems, making it a versatile tool for a wide range of electric and hybrid vehicles.
• Comprehensive Kit Contents: This all-in-one kit provides everything a technician needs to perform a full leak detection process, including the dye, a powerful UV flashlight, dye injector, couplers for both refrigerant types, and cleaning solution.
• Moisture-Protected Dye: The individual dye cartridges are hermetically sealed in foil packaging to protect against moisture, which is critical for maintaining the integrity of the vehicle’s A/C system.
• OEM-Grade Quality: The dye is manufactured with a specialized OEM-grade compressor oil designed for electric vehicles, ensuring it meets the highest standards for performance and safety.

SPECIFICATIONS:

• Oil Type: Ester
• ISO Viscosity Grade: 84

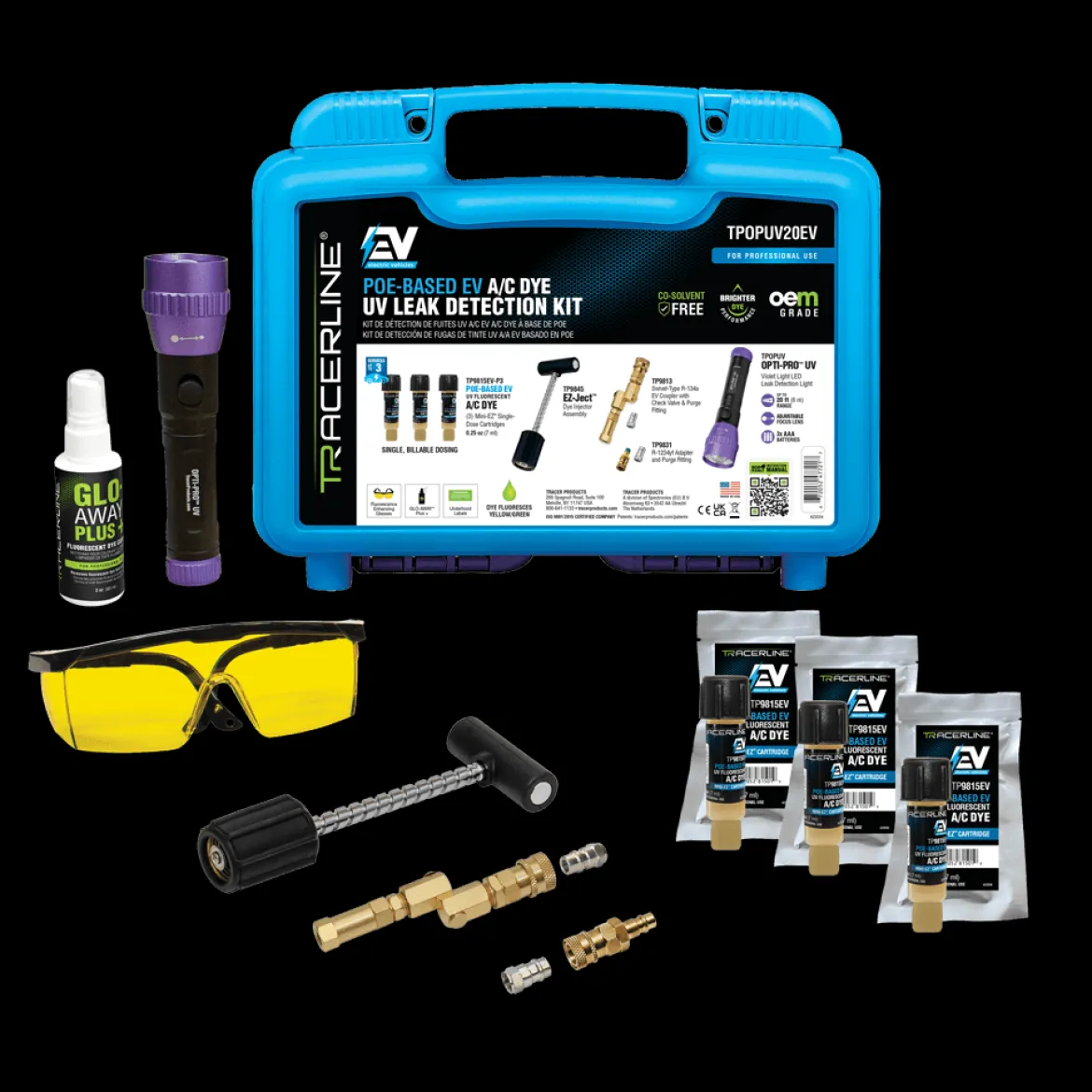

• What’s Included: The kit includes three 0.25 oz (7 ml) single-dose EV A/C dye cartridges (TP9815EV-P3), an OPTI-PRO™ UV cordless, violet light LED leak detection flashlight (TPOPUV), an EZ-Ject™ dye injector assembly (TP9845), a brass swivel-type R-134a coupler with check valve and purge fitting (TP9813), a brass swivel-type R-1234yf coupler with check valve and purge fitting (TP28), a 2 oz (60 ml) spray bottle of GLO-AWAY™ Plus fluorescent dye cleaner (TP19), and a pair of fluorescence-enhancing glasses (TP9940). The kit is housed in a medium blue carrying case.

HOW TO USE:

1. Prepare the System: Connect the EZ-Ject™ dye injector assembly to the appropriate refrigerant coupler for either R-134a or R-1234yf.
2. Inject the Dye: Screw a single-dose dye cartridge into the injector and connect it to the low-side service port of the vehicle’s A/C system. Inject the dye into the system following the instructions on the injector.
3. Run the System: Run the vehicle’s A/C system for approximately 15-20 minutes to allow the dye to circulate with the refrigerant and oil.
4. Inspect for Leaks: Using the OPTI-PRO™ UV flashlight and fluorescence-enhancing glasses, scan the entire A/C system, including all hoses, components, and connections. Any leaks will appear as a bright, glowing yellow-green fluorescent color.
5. Clean Up: After locating the leak, use the GLO-AWAY™ Plus cleaner to remove any excess dye from the system’s exterior surfaces.

BENEFITS OF USING TRACERLINE POE-BASED EV A/C DYE UV LEAK DETECTION KIT (TPOPUV20EV):

• Safety: The high-dielectric dye is specifically designed to be non-conductive, protecting sensitive electrical components and maintaining the system’s integrity.
• Accuracy: The powerful UV flashlight and specialized glasses make even small leaks highly visible, allowing for precise and efficient diagnosis.
• Efficiency: The comprehensive, all-in-one nature of the kit saves time for technicians by providing all the necessary tools in one convenient package.
• Versatility: The inclusion of couplers for both R-134a and R-1234yf systems makes this kit a single solution for a wide range of electric and hybrid vehicles.

FEATURES:

• High-dielectric POE-based dye formula ensures safety for electrically driven compressors.
• Concentrated dye formula maintains system resistivity without altering performance.
• Individual dye cartridges are moisture-proof due to foil packaging.
• Includes a cordless violet light LED flashlight for enhanced leak visibility.
• Swivel-type couplers for both R-134a and R-1234yf systems simplify connection.
• Dye injector assembly allows for easy, controlled injection into the A/C system.
• Comes with fluorescence-enhancing glasses to optimize leak detection.
