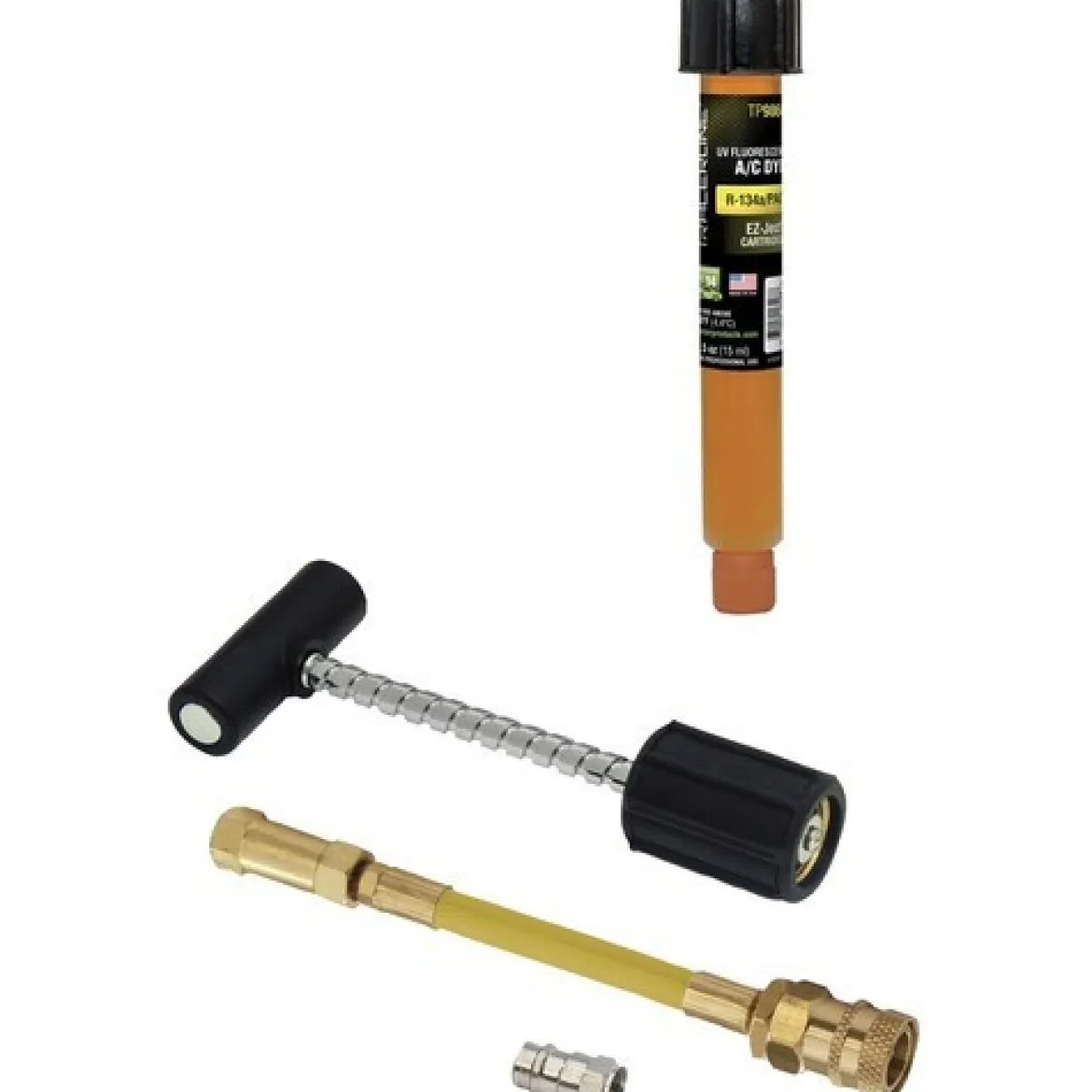

Tracerline R134a/PAG EZ-Ject A/C Dye Injection Kit (TP9848-BX)

The Tracerline R134a/PAG EZ-Ject A/C Dye Injection Kit (TP9848-BX) is the definitive tool for pinpointing leaks in R-134a vehicle air conditioning systems. This comprehensive kit provides a fast, clean, and highly effective method for injecting fluorescent dye, making leak detection a straightforward process for automotive technicians. The system is centered around a multi-dose, pre-filled cartridge that delivers an OEM-grade, co-solvent-free dye directly into the A/C system’s low-side service port. This unique design eliminates spills and waste, ensuring a professional and precise application every time.

KEY FEATURES AND BENEFITS:

• Mess-Free Injection: The unique EZ-Ject system uses a pre-filled cartridge and a plunger-style injector, eliminating the need for pouring or complicated hookups, which prevents spills and waste.
• OEM-Approved Fluorescent Dye: The included Fluoro-Lite® dye is approved by major vehicle and component manufacturers, meeting SAE J2297 standards and ensuring it is safe and effective for R-134a/PAG systems.
• Multi-Dose Cartridge: The single 0.5 oz (15 ml) dye cartridge can service up to 14 vehicles, providing a cost-effective solution for professionals and significantly reducing the need for frequent replacements.
• Complete Kit: The TP9848-BX kit includes all the necessary components for immediate use, including the dye injector assembly, dye cartridge, and a dedicated R-134a hose/coupler, making it a comprehensive diagnostic solution.
• Enhanced Visibility: The dye is formulated to be 10% brighter than previous versions, improving its visibility under a UV lamp and making it easier to pinpoint even small or hard-to-reach leaks.

SPECIFICATIONS:

• Included in Kit (TP9848-BX):
• TP9845 EZ-Ject™ Dye Injector Assembly
• TP9860 EZ-Ject™ R-134a/PAG cartridge (0.5 oz / 15 ml)
• TP9847 R-134a Hose/Coupler & Purge Fitting

HOW TO USE:

1. Prepare the Injector: Insert the TP9860 EZ-Ject™ R-134a/PAG cartridge into the TP9845 EZ-Ject™ dye injector assembly.
2. Connect to System: Connect the TP9847 R-134a hose/coupler to the injector assembly. Attach the coupler to the low-side service port of the vehicle’s A/C system.
3. Purge Air: Before injecting the dye, push a small amount of dye into the purge fitting to remove any air from the hose.
4. Inject the Dye: Push the plunger on the injector assembly to introduce the desired amount of fluorescent dye into the A/C system.
5. Run the System: Disconnect the injector and run the vehicle’s A/C system for a few minutes to circulate the dye with the refrigerant and oil.
6. Inspect for Leaks: Use a UV leak detection lamp to scan the A/C system’s components, including hoses, fittings, and the condenser. The dye will fluoresce brightly at the leak point.

BENEFITS OF USING TRACERLINE R134A/PAG EZ-JECT A/C DYE INJECTION KIT (TP9848-BX):

• Designed for efficient and accurate leak detection with no mess or hassle.
• OEM-grade dye is compatible with R-134a refrigerant and PAG oil.
• Multi-dose cartridge allows for use across multiple vehicles, saving time and cost.
• Bright fluorescent dye offers clear visual confirmation of leaks, reducing guesswork.
• Dye can remain in the system, aiding future preventative maintenance checks.

FEATURES:

• Fluorescent dye is co-solvent free
• Injector assembly features a plunger-style mechanism
• Dye meets or exceeds SAE J2297 standards
• Designed for use with R-134a refrigerant and PAG oil
• Kit includes all necessary components for immediate use
• Dye cartridge is multi-dose, capable of servicing up to 14 cars
• Dedicated R-134a hose/coupler with a purge fitting
• The dye can be left in the system for future checks
