Victron Energy BMV-700H Battery Monitor (Grey) (BAM010700100)

Victron Energy BMV-700H Battery Monitor (Grey)

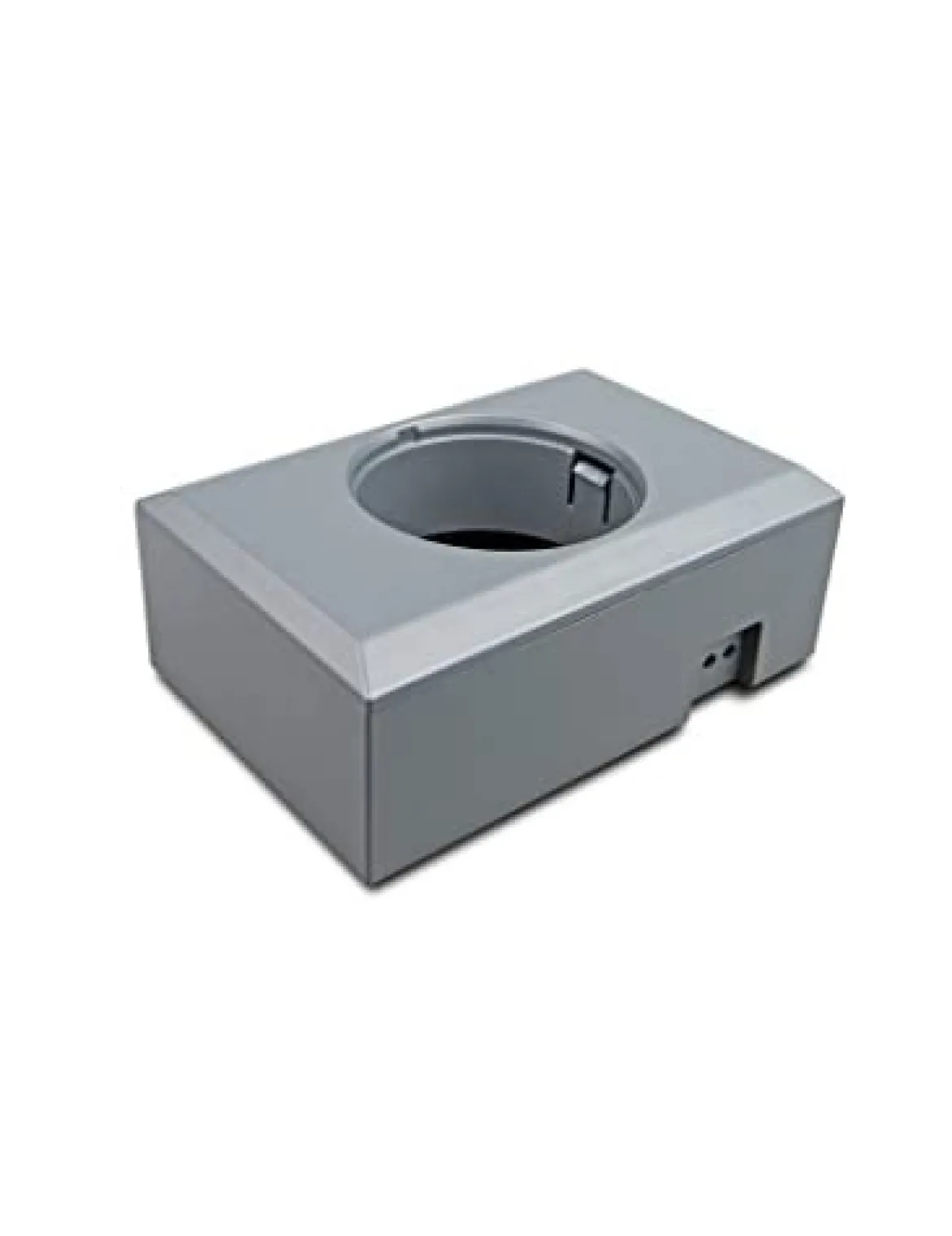

Victron Energy BMV-700H Smart is a high precision battery monitor that have been specially designed for systems with a high battery voltage ranging from 60 to 385 Volts. This battery monitor calculate the state of charge of a battery and keep track of the ampere hours consumed from the battery by integrating the current flowing in or out of the battery. Comes with a round head unit, a square bezel overlay, a screw ring for mounting, a 10m UTP RJ12 cable, a fused power supply cable and a 500A/50mV shunt. Because of the high voltage application, the shunt is housed in a special enclosure.

• Victron Energy BMV-700H Battery Monitor (Grey) is a high precision battery monitor for systems with a high battery voltage, ranging from 60 – 385 VDC

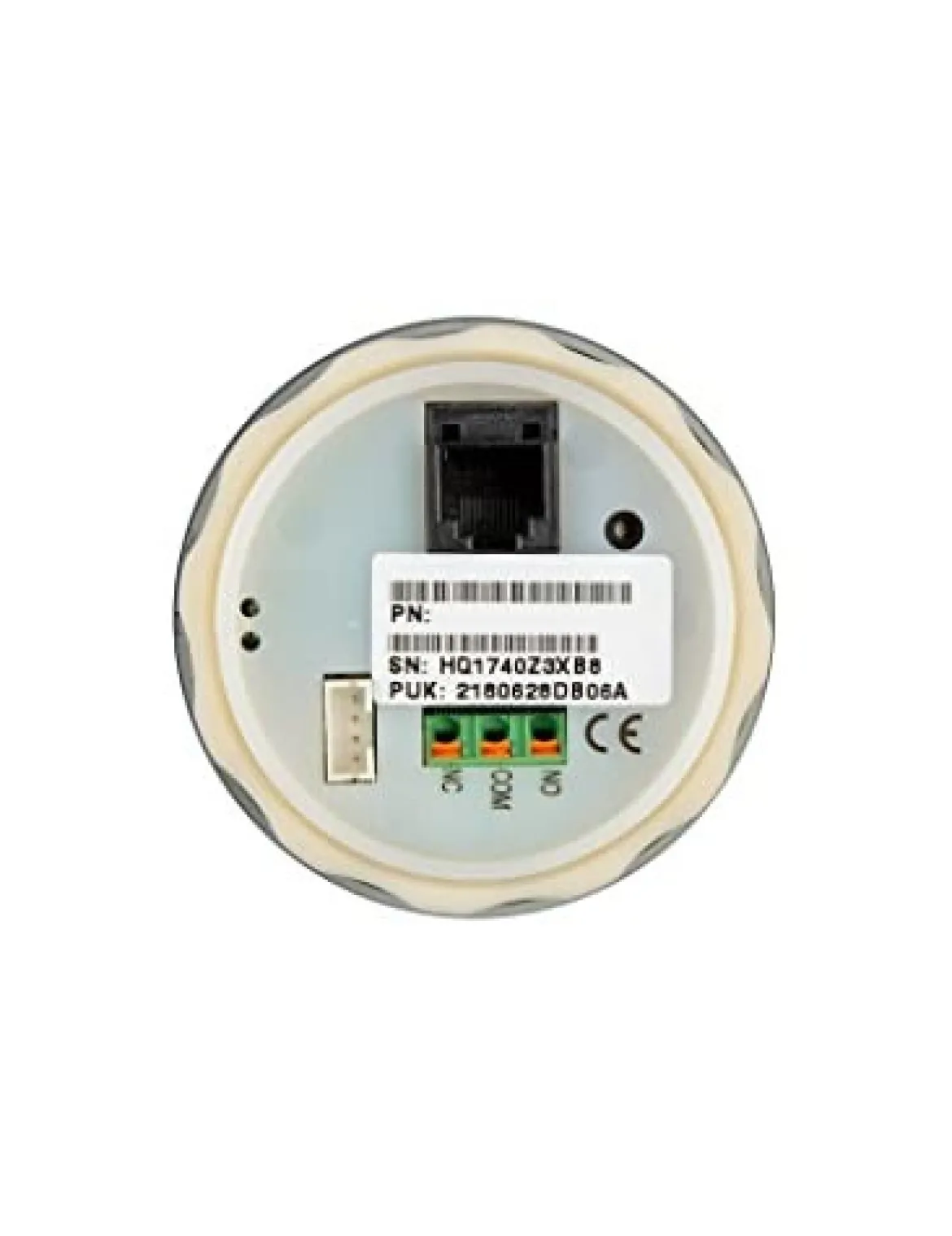

• Victron Energy BMV-700H features a relay that can be programmed to control other devices (such as a battery protect or generator)
• Connectivity – use a VE.Direct Bluetooth Smart dongle (sold separate) to monitor on smartphones and tablets. Or, connect to a GX device via VE.Direct cable (sold separate) and monitor anywhere in the world with VRM

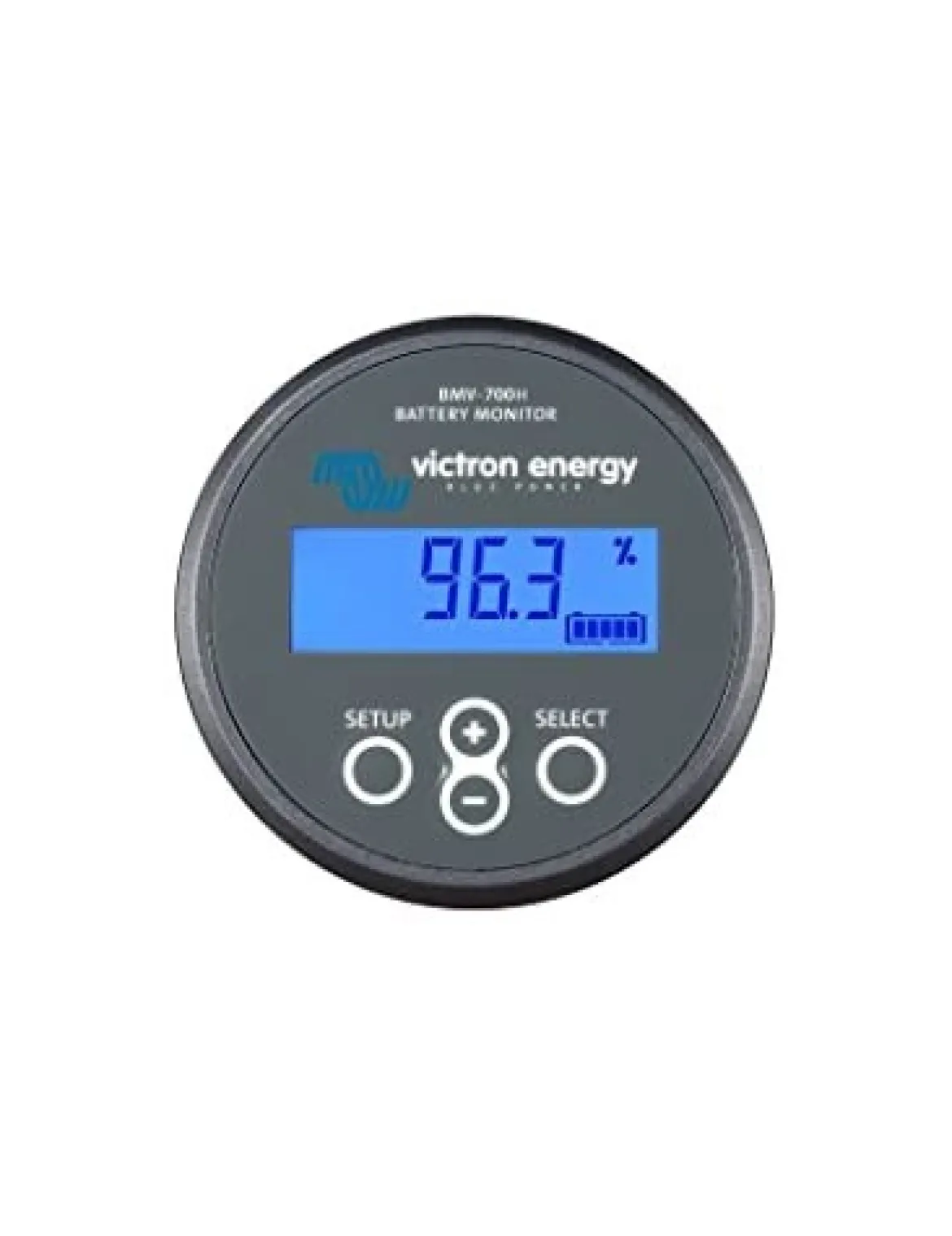

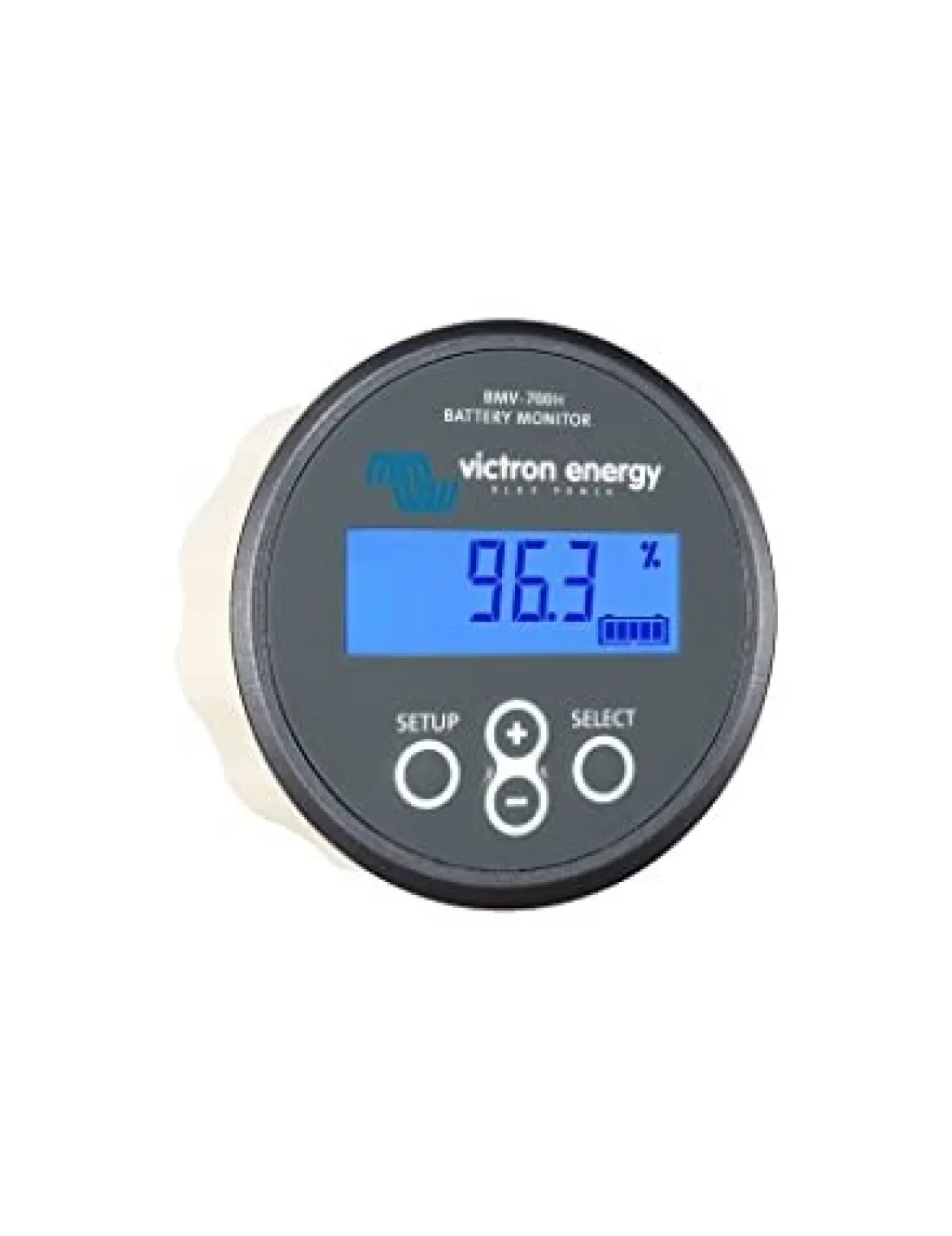

• Displays % State of Charge, Voltage, Current, Energy/Time remaining, and more. Easy to Program for initial setup.
• Incorrect installation can be hazardous, Please consult a licensed professional and follow all applicable electrical codes during installation. Because of the high voltage application, the shunt is housed in a special enclosure

Specifications:

• Brand: Victron Energy
• Model: BAM010700100
• Variation Attributes: Style: BMV 700H – High Voltage;
• Color: Blue,Grey
• Size: BMV 700H – High Voltage
• Length (inch): 2.72
• Width (inch): 1.22
• Height (inch): 2.72
• Weight (lbs): 1.63
