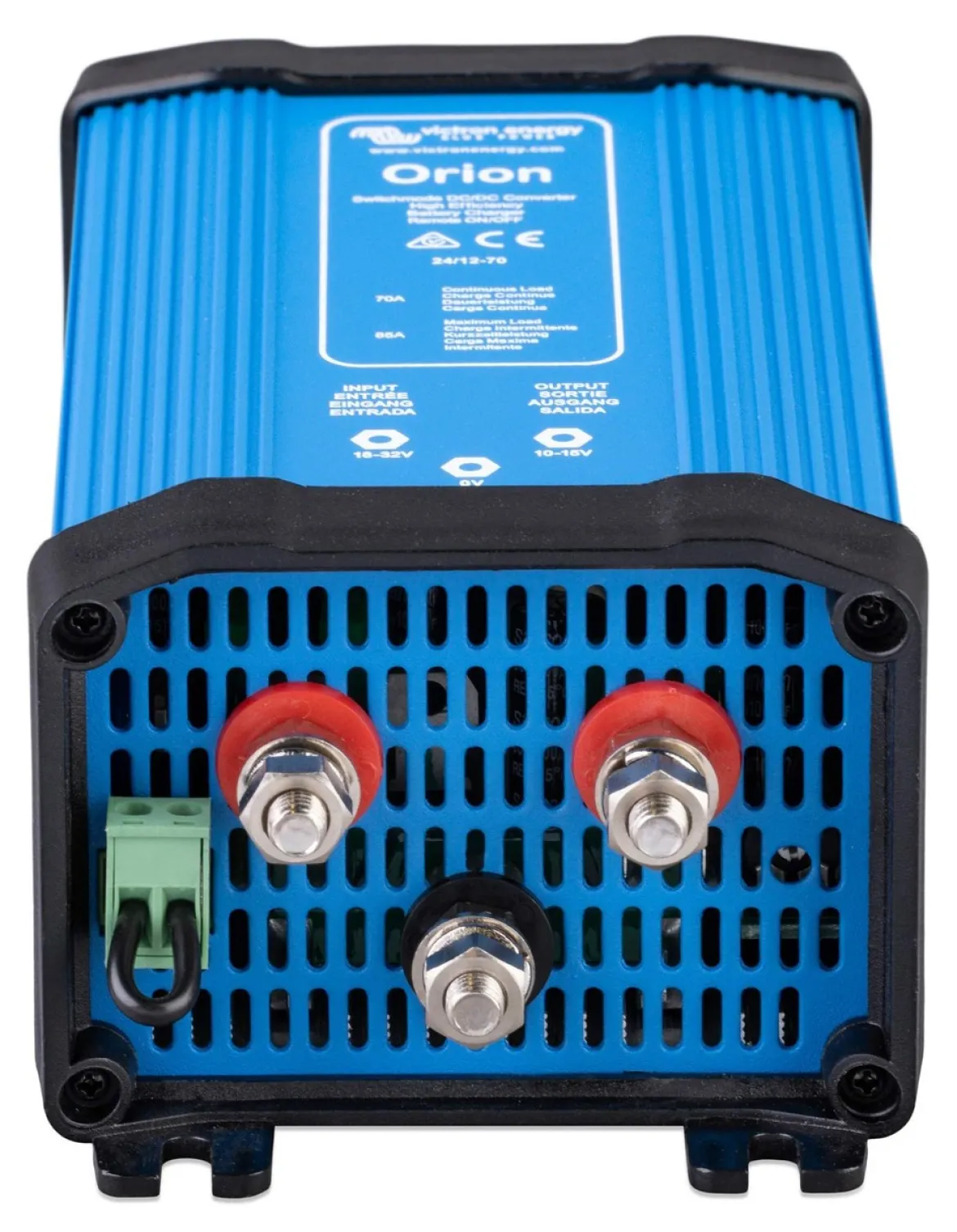

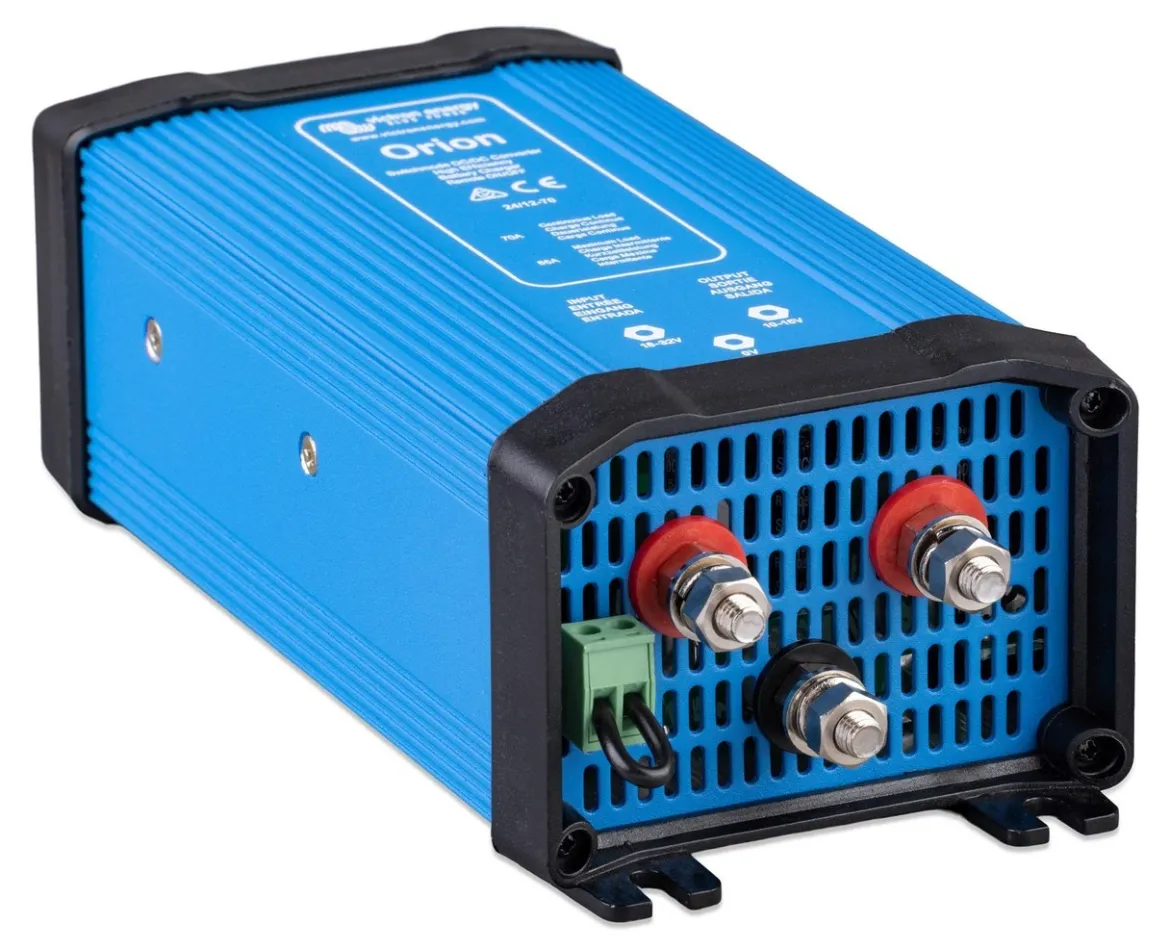

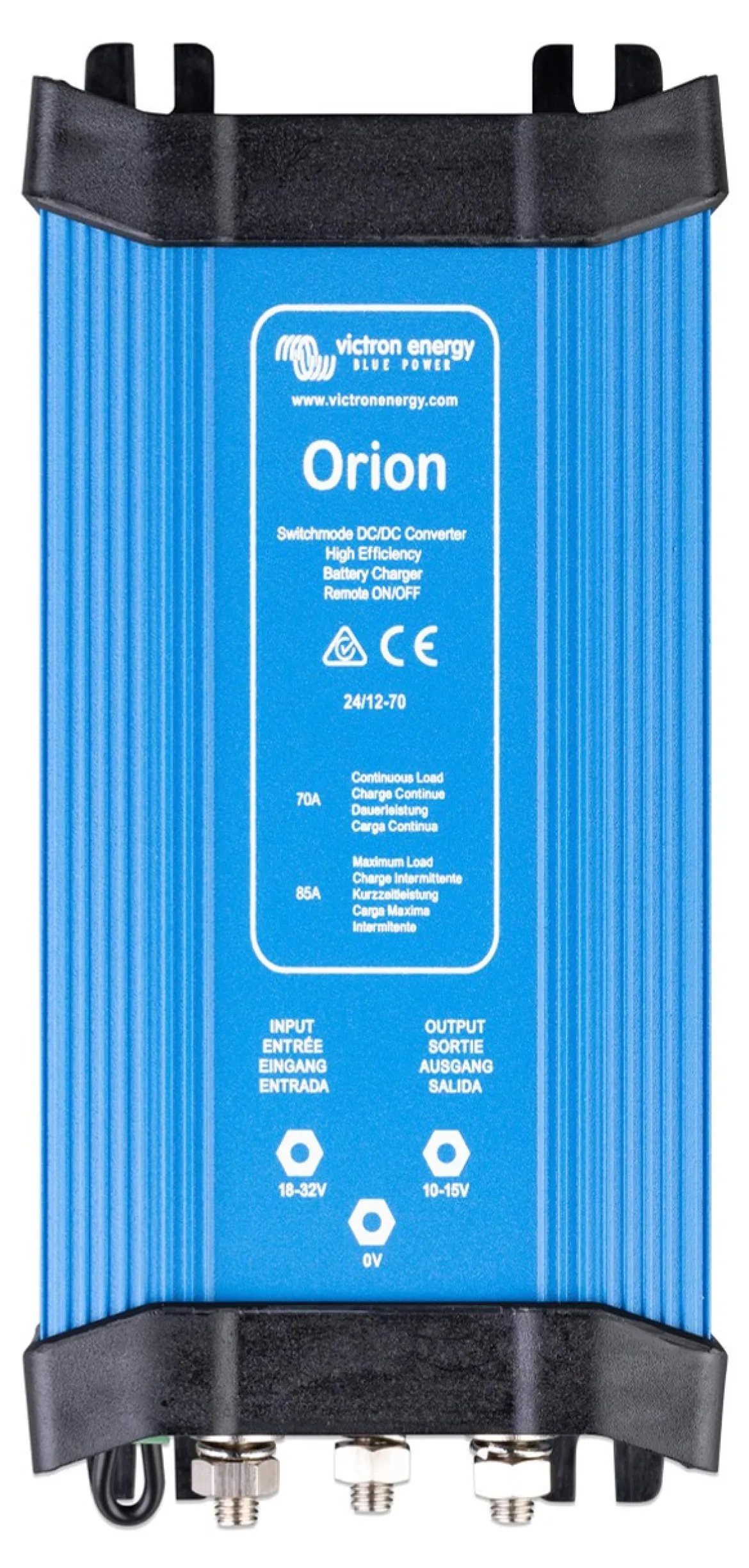

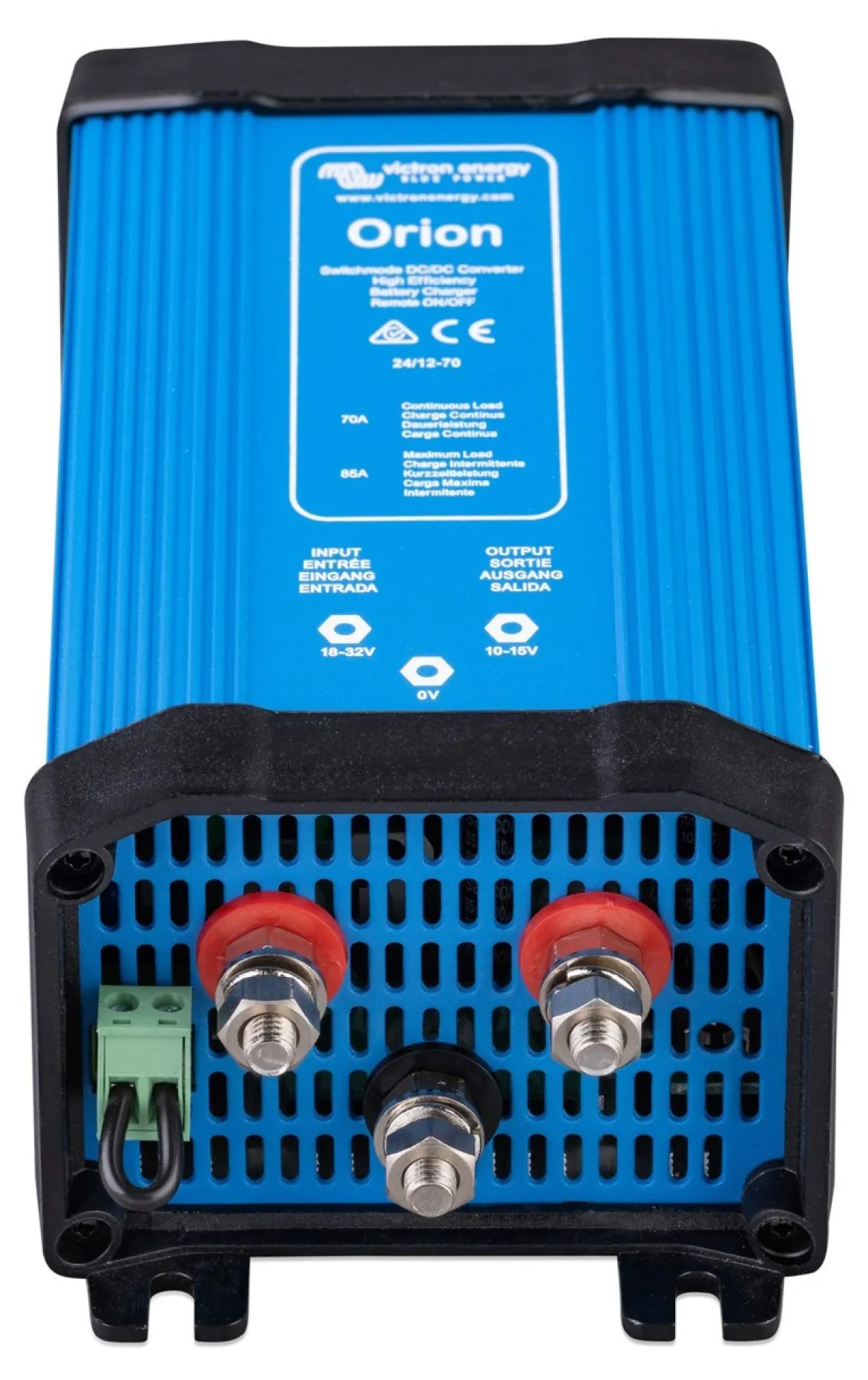

Victron ORI241270020 Energy Orion IP20 24/12-Volt 70 amp DC-DC Converter

Victron Energy Orion IP20 24/12-Volt 70 amp DC-DC Converter Non-Isolated, High Power

Orion DC-DC Converters Non-isolated, High power Remote on-off connector The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by the engine run/stop switch (see manual). All models with adjustable output can also be used as a battery charger For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system. All models with adjustable output can be paralleled to increase output current Up to five units can be connected in parallel.

• Input voltage range 18-35 Volts
• Output volage is factory set to 13.2 Volts but can be user adjusted between 10 and 15 Volts
• Continuous output current 70 Amps
• Max momentary output current 85 Amps
• Off load current < 20 mA

Specifications:

• Brand: Victron Energy
• Model: ORI241270020
• Color: Blue
• Length (cm): 23.3
• Width (cm): 16.6
• Height (cm): 10.6
• Weight (g): 1129
