Yellow Jacket Digital Manifold Backpack Kit With Set Of 6 Plus Ii Hoses (40885)

The YELLOW JACKET TITANMAX Digital Manifold provides the easiest path to system measurements. This 4-valve manifold provides fast and accurate measurements for refrigeration and A/C systems. The high resolution backlit touchscreen display erases the need for multifunction buttons and provides clear graphical and digital measurements. It also features internal data logging. Connect via Bluetooth to the YJACK VIEW App or measureQuick App for further analysis.

Key Features and Benefits

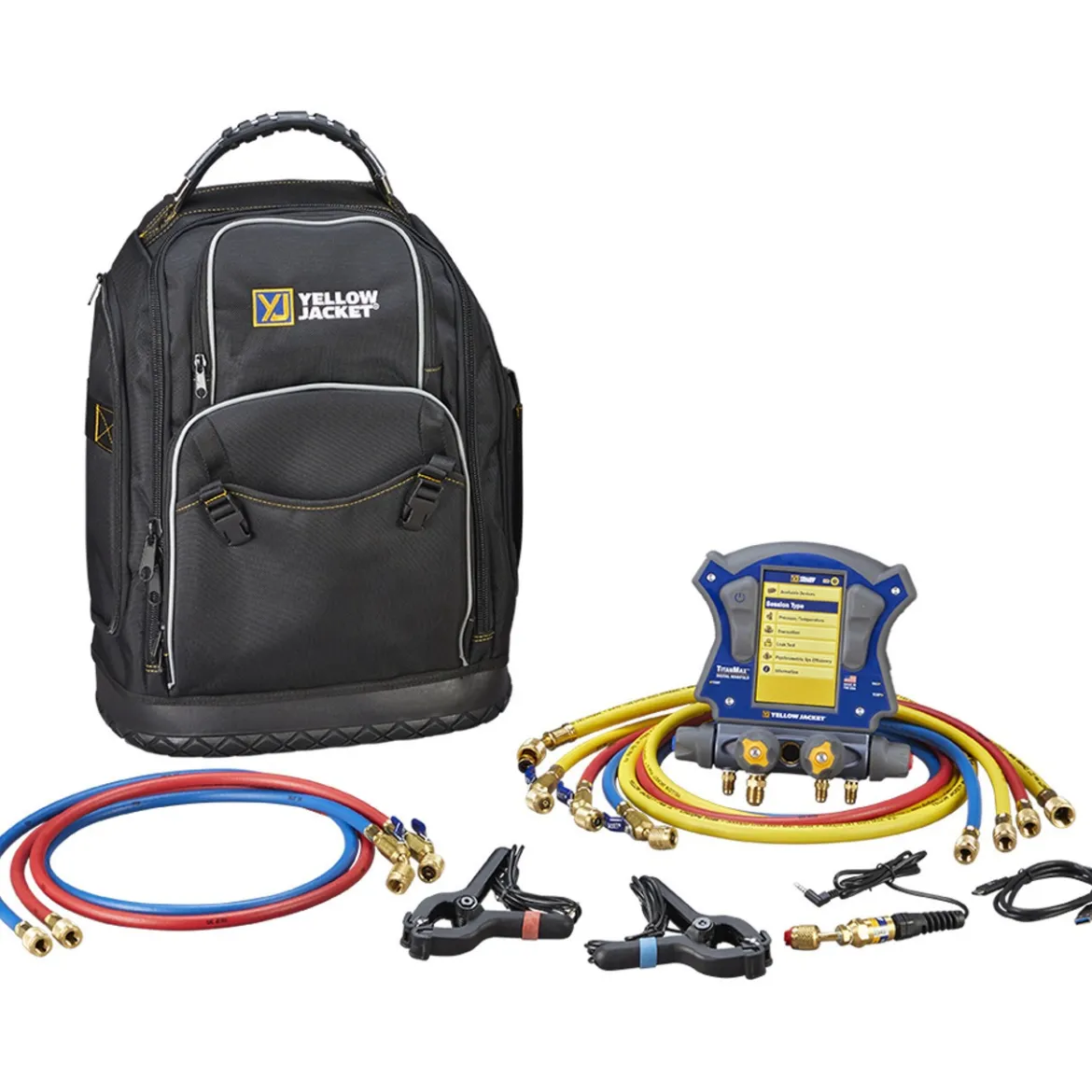

• Includes Hoses: (3) 60″ 1/4″ RYB Compact Ball Valve, (1) 60″ 3/8″ Yellow Vacuum Hose 3/8″ Straight x 3/8″ 45°, (2) Compact Ball Valve 1/4″ x 5/16″
• Measures high and low side pressures and temperatures
• Displays vapor and liquid saturation temperatures
• Calculates system superheat and subcooling
• On-board data logging; export to your computer with USB or to your phone via YJACK VIEW App
• Compatible with measureQuick App
• Pressure hold mode displays rate of change for vacuum and positive pressure measurements
• Wirelessly measure and display relative humidity, dry bulb, wet bulb and dew point temperature alongside system pressure and temperature measurements with YJACK DEW

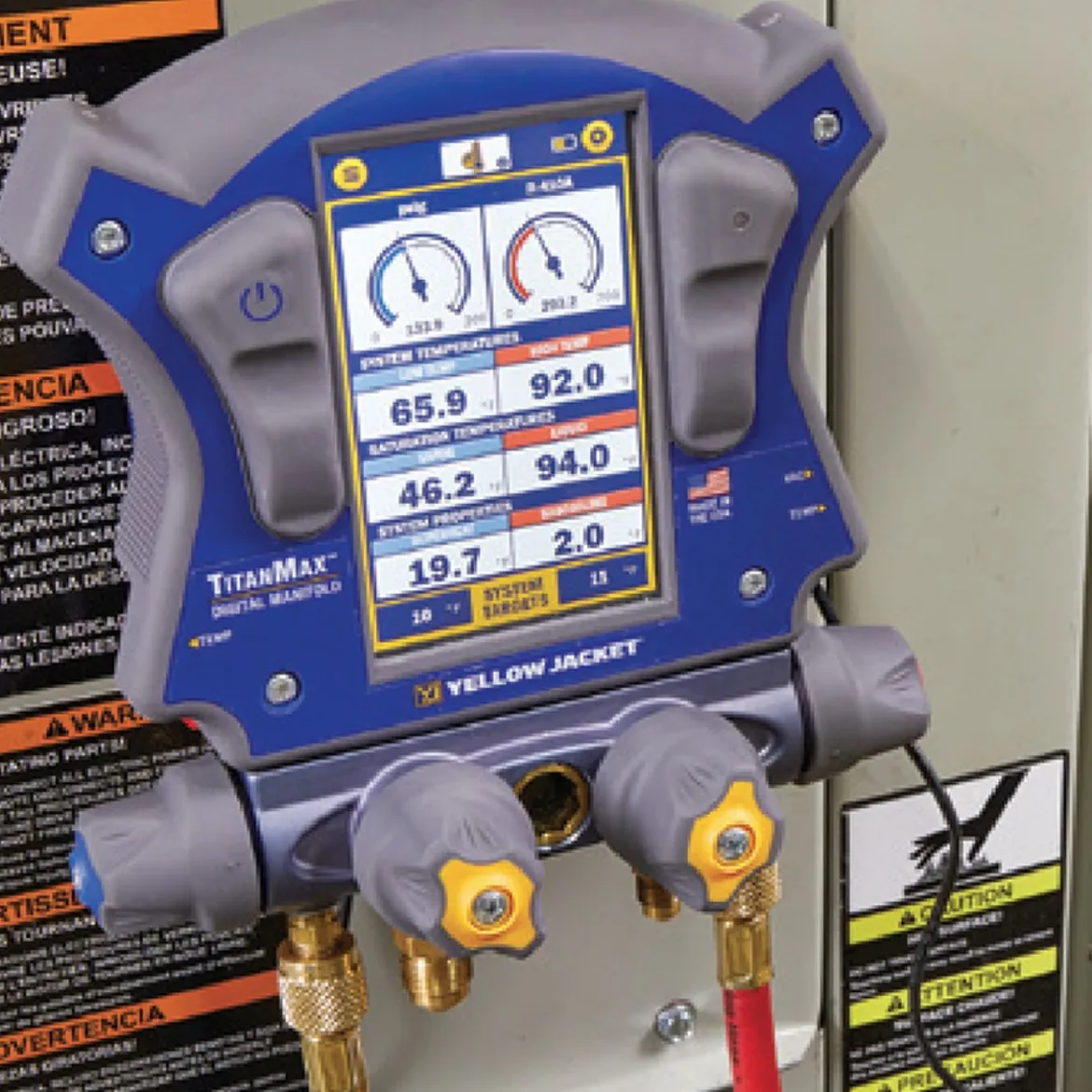

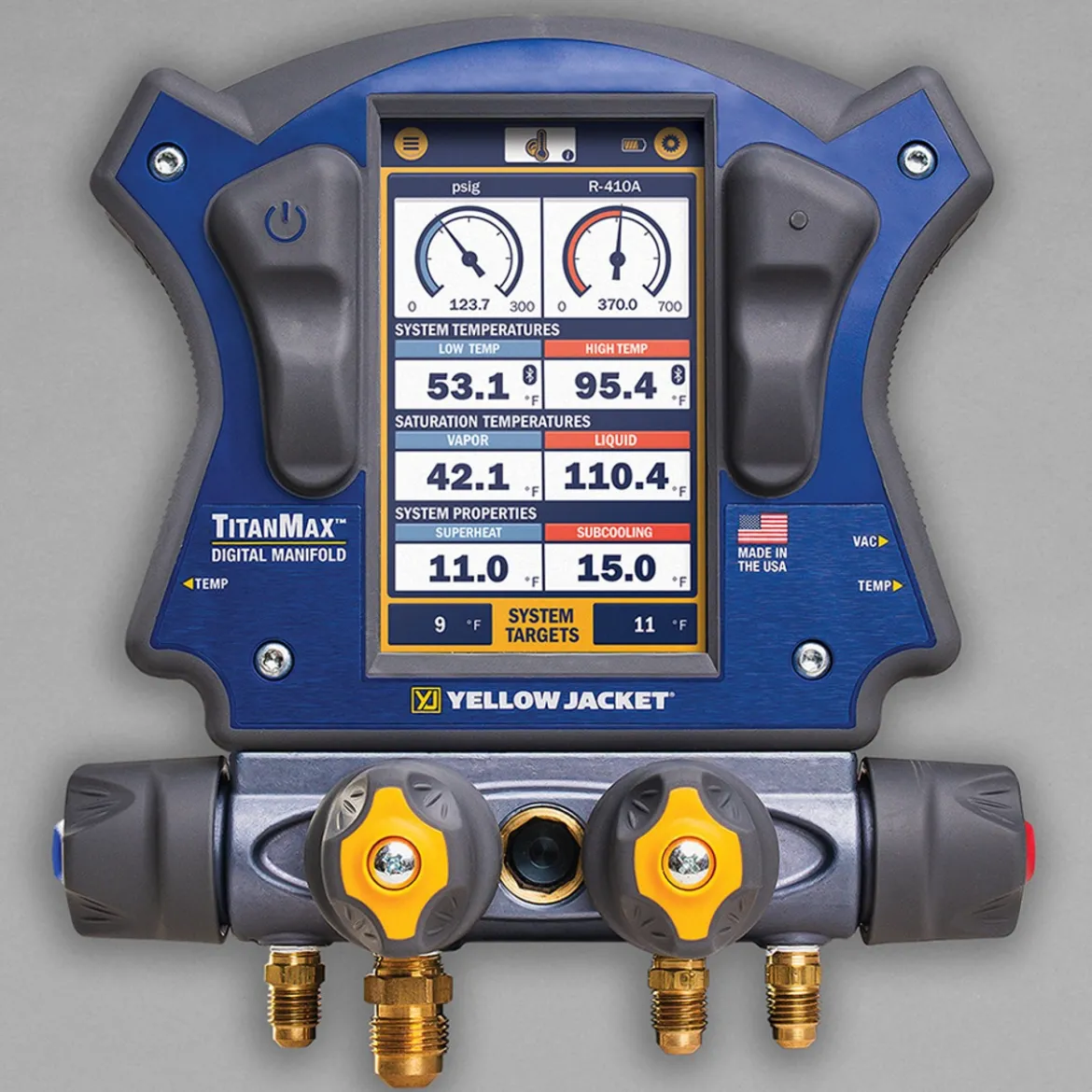

• High resolution, full color, backlit, 5″ touchscreen display
• Ultimate user interface – information on major screens
• Adjustable timing for auto shut-off
• Touchscreen never has to be calibrated
• Digital and graphical pressure/temperature measurements
• Choose from relevant refrigerant profiles stored including A2L – may designate 3 favorites
• Robust housing with ergonomic grip
• 4-way TITAN valve block

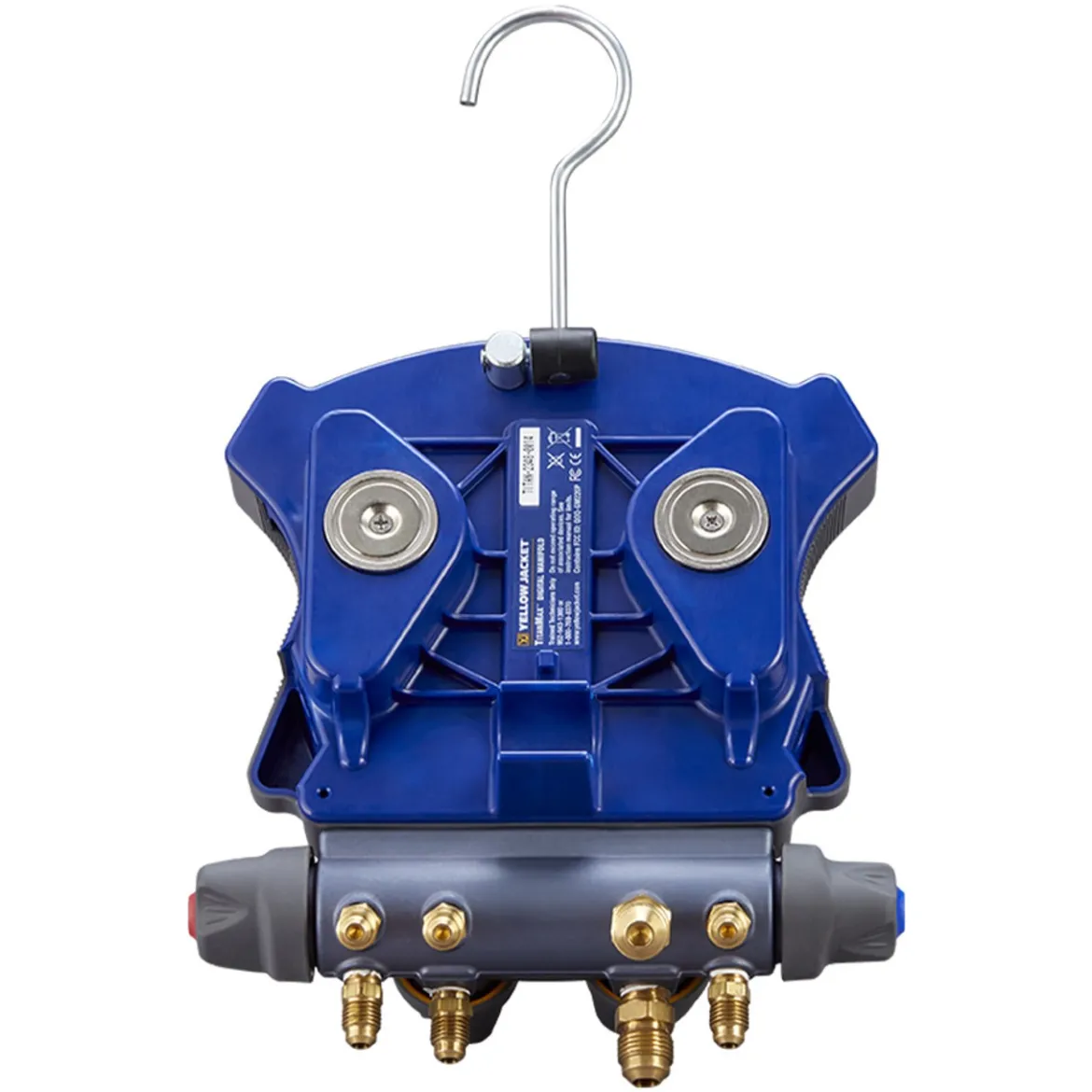

• Integrated magnets for mounting on equipment cabinet may also be used to store TITAN Temperature Clamps
• Pivoting hook
• Convenient connections for USB port, temperature clamps, and vacuum sensor
• External vacuum sensor with high and low alarms
• Vacuum measurements, set targets and leak testing

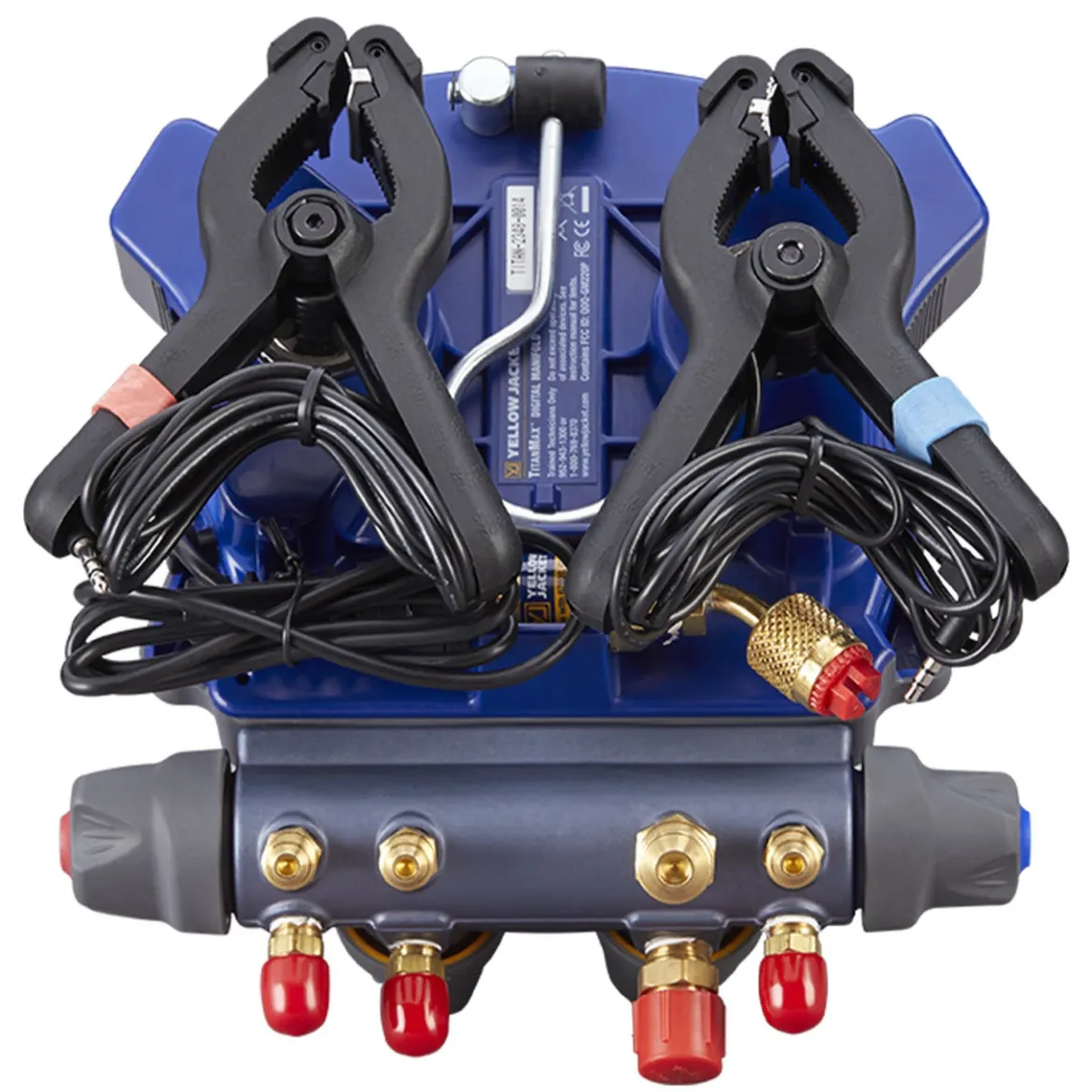

• Larger temperature clamps (2) for up to 1-5/8″ pipes
• Bluetooth 5.2; range up to 1,000 feet
• Maximum working pressure 740 psia (51.0 bar)
• Multiple languages: French, Spanish, German and English
• Re-chargeable battery with life indicator
• Continuous use no backlight: 80 hours
• Continuous use with full backlight: 4.5 hours
• US and INTL units (bar, psia, psig, kPa, MPa, kg/cm2)
• Backpack storage included
• IP52 certified
• Two-year manufacturer warranty

App features:

• Measure HVAC/R system pressure, temperature, saturation temperature, superheat and subcooling
• Monitor system evacuation status
• Check indoor air comfort and system efficiency with psychrometric air calculations: Percent relative humidity, dry bulb, wet bulb and dew point temperature measurements
• Monitor status of all nearby YJACK, TITANMAX, and P51-870 TITAN devices
• Customize data view for each measurement
• Freely switch between multiple simulta- neous sessions without loss of data
• Create highly customized datalogs to be saved or emailed from your smart device
• Choose from 126 refrigerant profiles found in the REFPROP database
• Plus all the great features of the ManTooth app
• Available on iOS (version 10 or later) and Android (version 8 or later) smart devices
