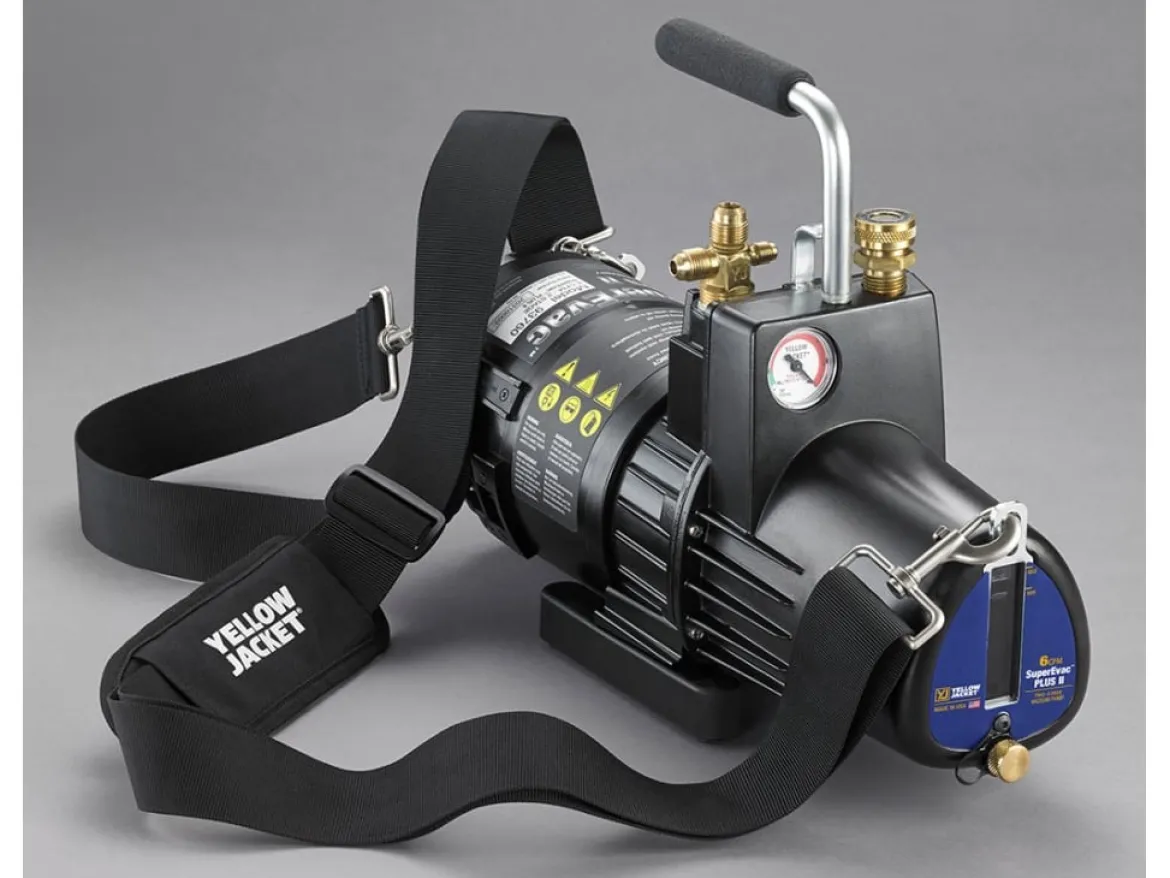

Yellow Jacket SuperEvac Plus II 6 CFM Vacuum Pump with BLDC (93760)

Yellow Jacket SuperEvac Plus II 6 CFM Vacuum Pump with BLDC (93760) sets a new standard in refrigerant evacuation technology, specifically designed for A2L systems and engineered to operate under various environmental conditions.

The SuperEvac Plus II is equipped with a high-efficiency Brushless DC motor, ensuring reliable performance with less wear and lower energy consumption. Its advanced design allows operation in extreme temperatures and reduces stress on components, prolonging the pump’s lifespan.

• Specifications and Dimensions
  • Motor Type: High torque, high efficiency, Brushless DC (BLDC).
  • Free Air Displacement: 6 CFM for rapid evacuation.
  • Voltage: 100-127V/220-240V, 50-60 Hz, adaptable to various power supplies.
  • Dimensions: 16 x 6 x 11.5 inches; Weight: 25.9 lbs.
  • Oil Capacity: 36 oz, supports extensive operations.
  • Field Blankoff: 15 microns, ensuring a deep vacuum.
• Key Features and Benefits
  • Compact design is over 20% lighter than comparable AC motor-driven pumps, enhancing portability.
  • Includes isolation valve for maintenance without vacuum loss and a gas ballast valve to extend oil life.
  • Equipped with an intake filter screen to prevent particulate damage and a large brass oil drain for easy maintenance.
  • Non-sparking switch and locking IEC connector enhance safety, especially in compliance with A2L system requirements.
  • Comes with a lift hook and shoulder strap for easy transport, even to rooftop applications.
• Includes:
  • 1 SuperEvac PLUS II Pump
  • 1 Bottle of SuperEvac Pump Oil
  • 1 Shoulder Strap
  • 1 Locking, Removable Power Cord
  • 1 Owner’s Manual
