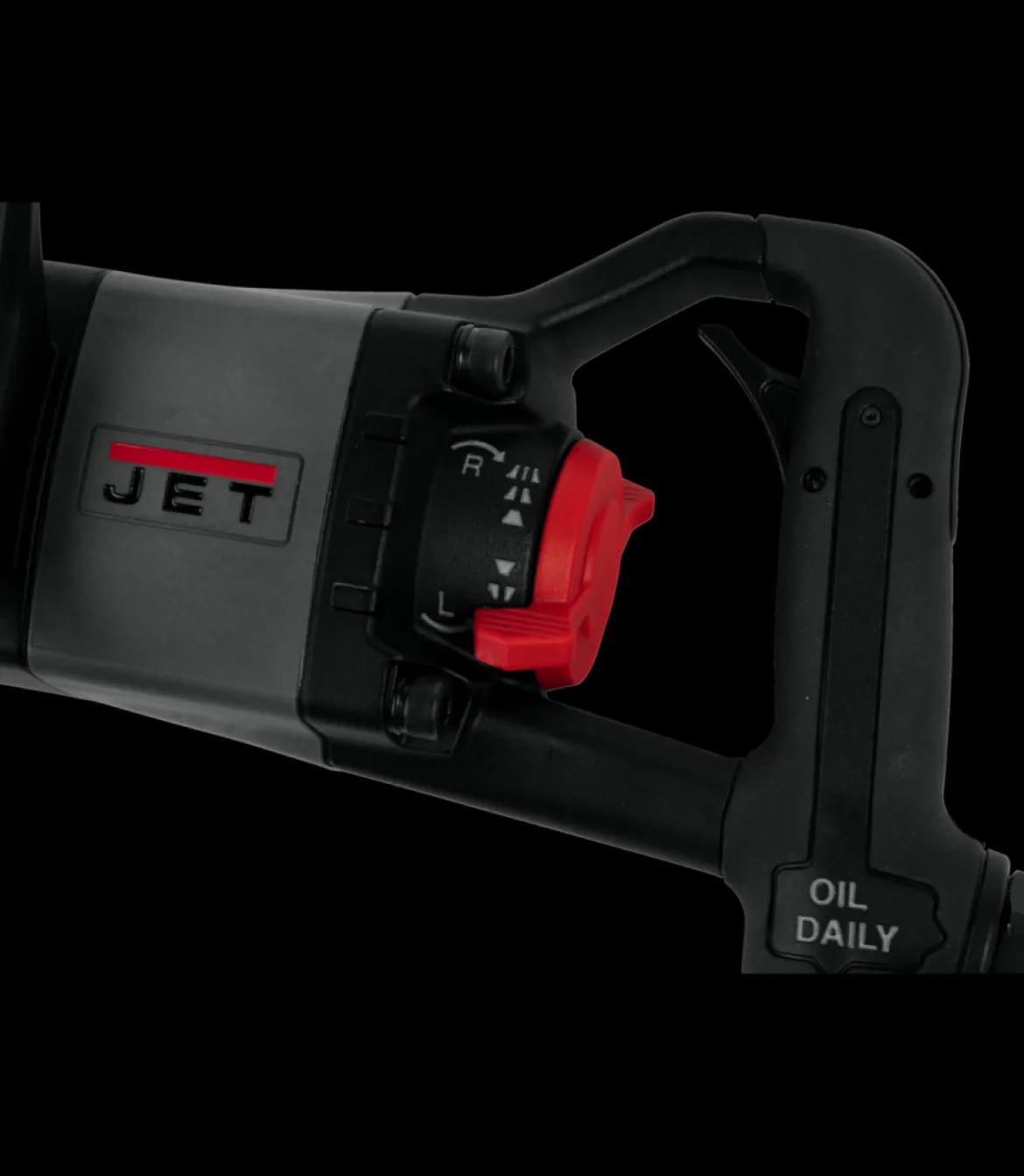

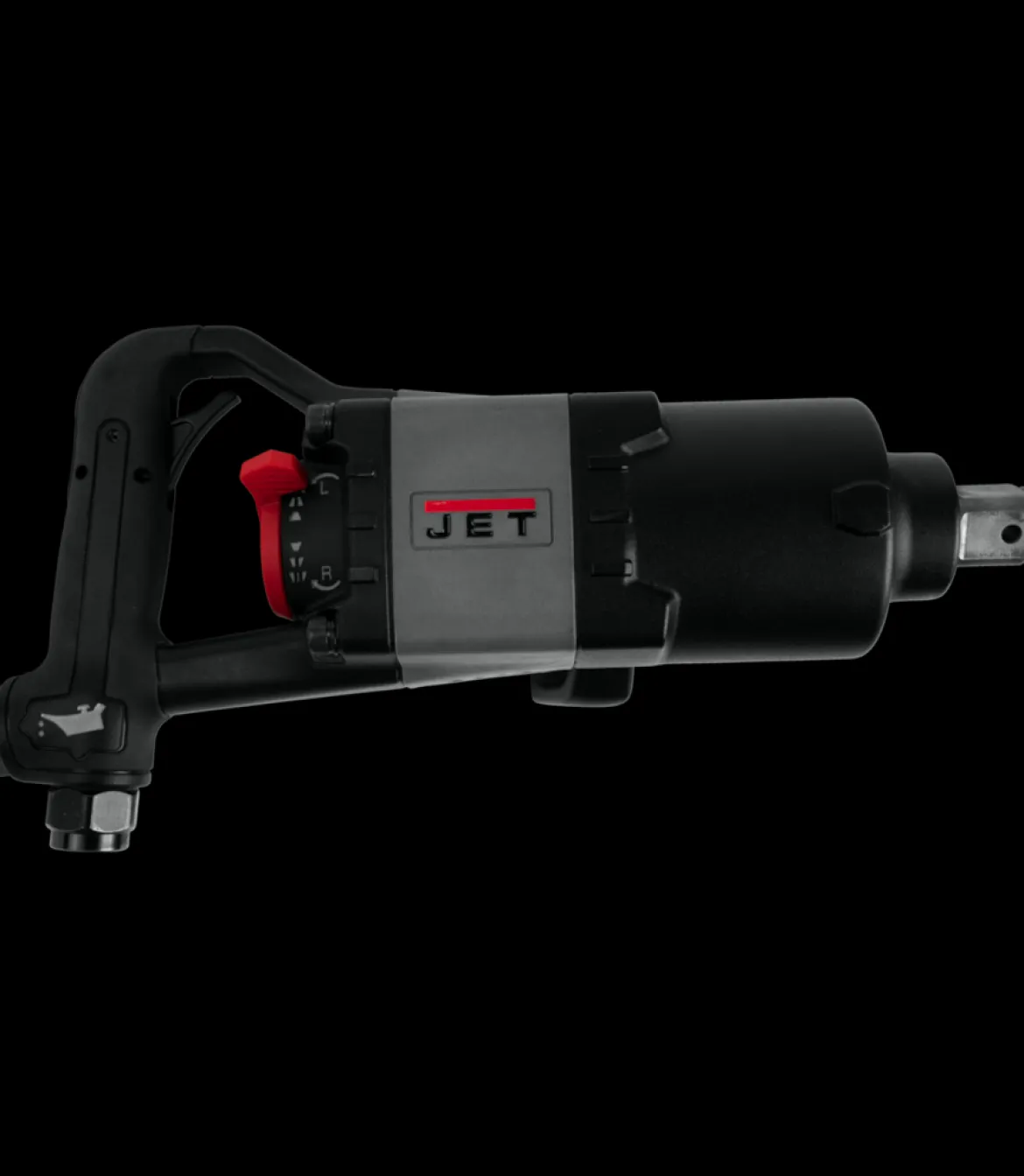

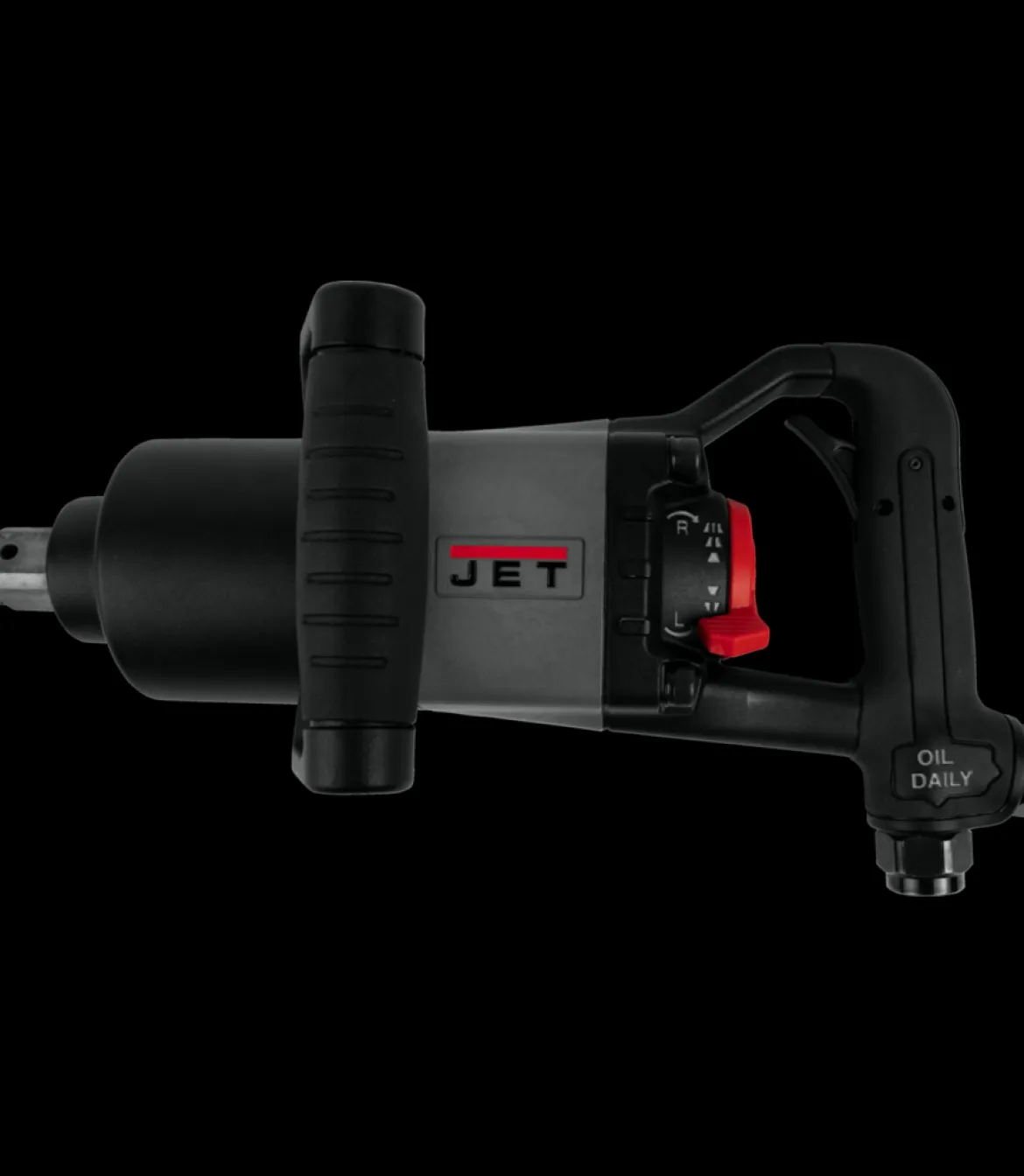

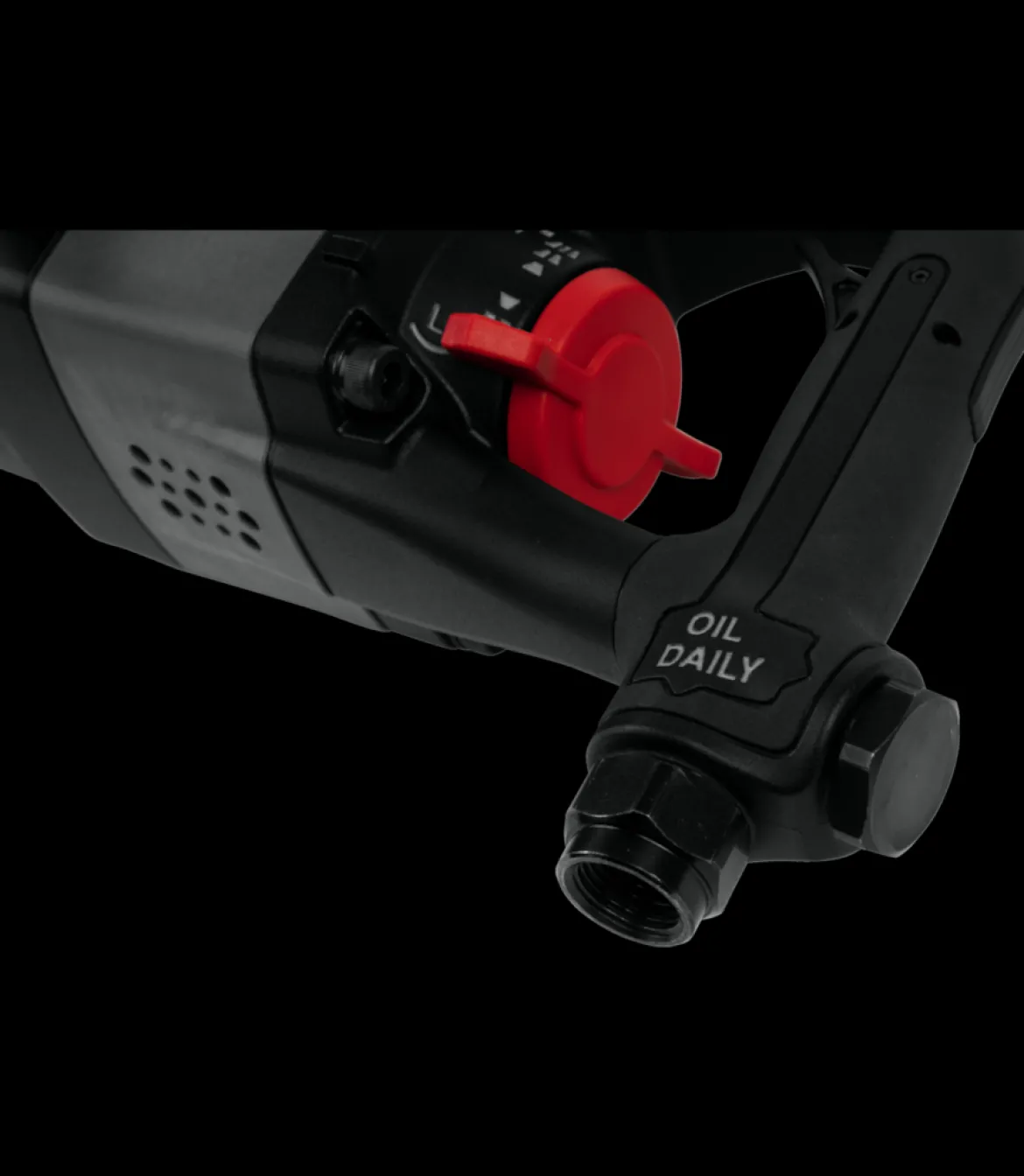

Jet JAT-211 1 Inch D-Handle Composite Impact Wrench (505211)

Jet JAT-211 1 Inch D-Handle Composite Impact Wrench (505211) is a 1-inch D-handle composite impact wrench engineered for professionals who demand power, durability, and comfort in their tools. Designed to handle heavy-duty applications with ease, this impact wrench is the lightest in its class without sacrificing performance.

KEY FEATURES AND BENEFITS

• High Power: Delivers 2200 ft-lbs of maximum torque, easily tackling tough jobs in various industries.
• Lightweight & Durable: Composite housing with aluminum handle and clutch housing ensures long-lasting performance and reduced user fatigue.
• Efficient Design: Twin hammer clutch mechanism maximizes power output while minimizing vibration for smoother operation.
• User-Friendly: Features an easy-access forward/reverse switch, torque regulator, and a comfortable non-slip grip for enhanced control and precision.
• Versatile: Ideal for general maintenance, oil and gas applications, and large bolt tightening tasks.

SPECIFICATIONS

• Square Drive (In.): 1
• Working Torque (Ft. Lbs.): 380-1,900
• Max Torque (Ft. Lbs.): 2,200
• Free Speed (RPM): 5,500
• Blows Per Minute (BPM): 1,400
• Impact Mechanism / Clutch Type: Twin Hammer
• Anvil Retainer Type: Ring/Pin
• Air Inlet (NPT/In.): 1/2
• Air Hose (ID/In.): 1/2
• Air Consumption (CFM): 12
• Sound Pressure (db) (A): 107.5
• Sound Power (db) (A): 118.5
• Vibration Value (m/s²): 11.4
• Overall Length (In.): 14.7
• Weight (Lbs.): 14.9

HOW TO USE

1. Connect Air Supply: Attach the air hose (3/4″ recommended) to the impact wrench’s air inlet (1/2″ NPT). Ensure the air pressure is set according to the manufacturer’s recommendations.
2. Select Direction: Choose forward or reverse using the directional switch.
3. Adjust Torque: Set the desired torque level using the torque regulator.
4. Attach Socket: Secure the appropriate socket onto the square drive anvil.
5. Position Wrench: Place the socket onto the fastener.
6. Pull Trigger: Squeeze the trigger to activate the impact wrench.
7. Release Trigger: Once the fastener is tightened or loosened, release the trigger.
8. Disconnect Air Supply: Disconnect the air hose after use.

BENEFITS OF USING THE JET JAT-211 1 INCH D-HANDLE COMPOSITE IMPACT WRENCH (505211)

• Increased productivity due to high torque and efficient operation.
• Reduced user fatigue thanks to the lightweight design and minimal vibration.
• Enhanced control and precision with easy-to-use features and comfortable grip.
• Improved safety with a non-slip handle and reliable performance.

FEATURES

• High impact-resistant composite housing for durability.
• Lightweight aluminum clutch housing and handle for optimal balance.
• Optional two-directional inlet for user preference.
• Nonslip molded rubber insert handle for extra comfort.
