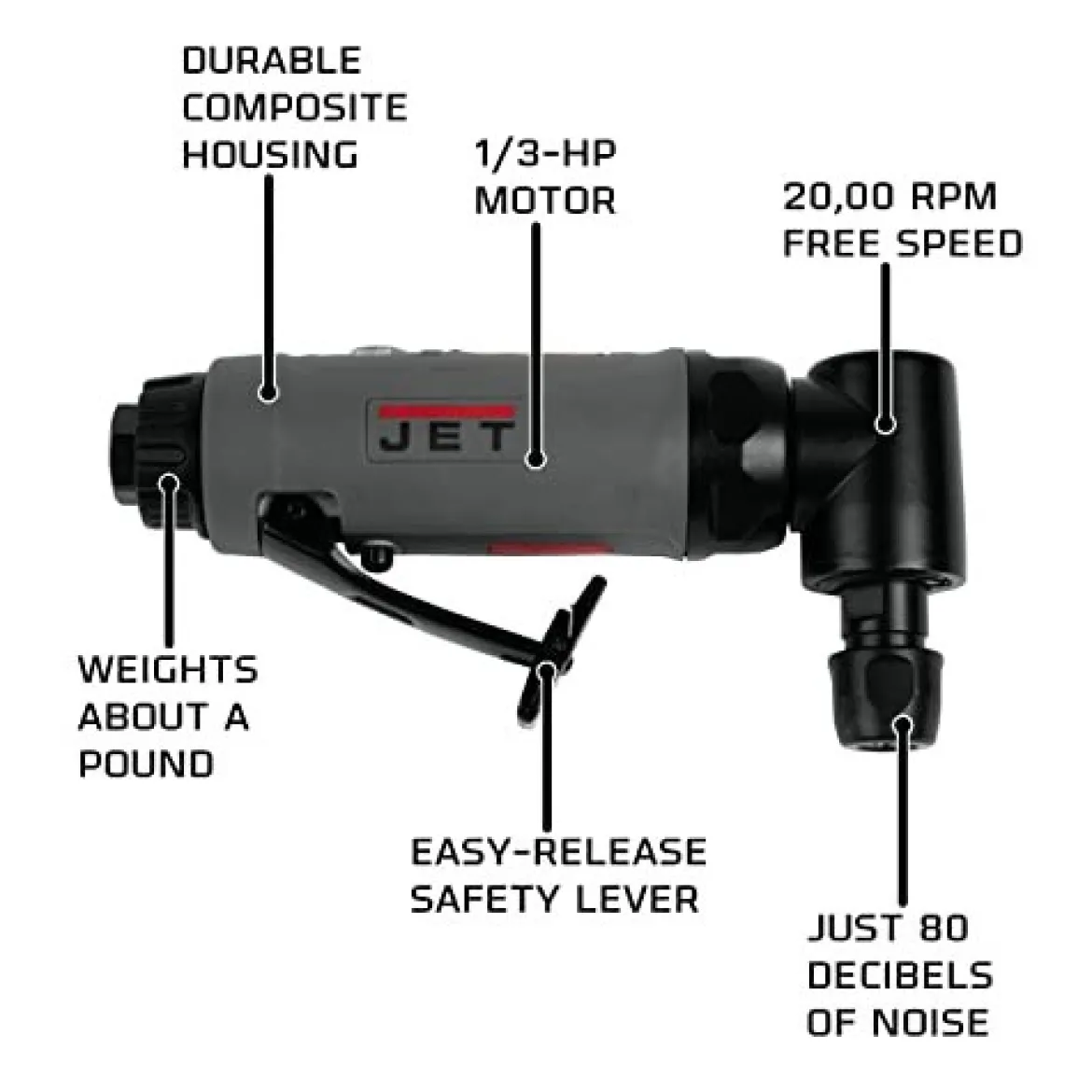

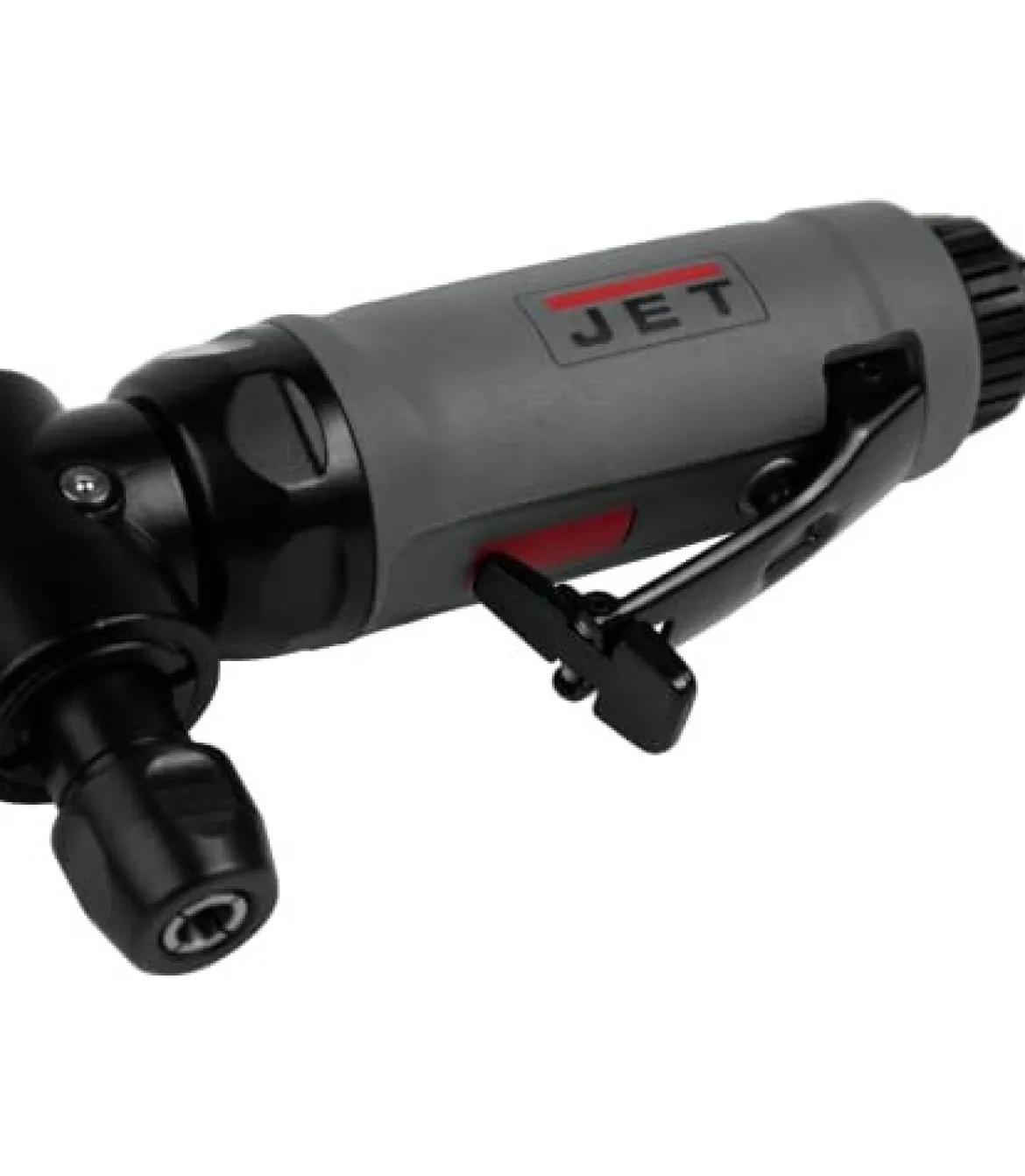

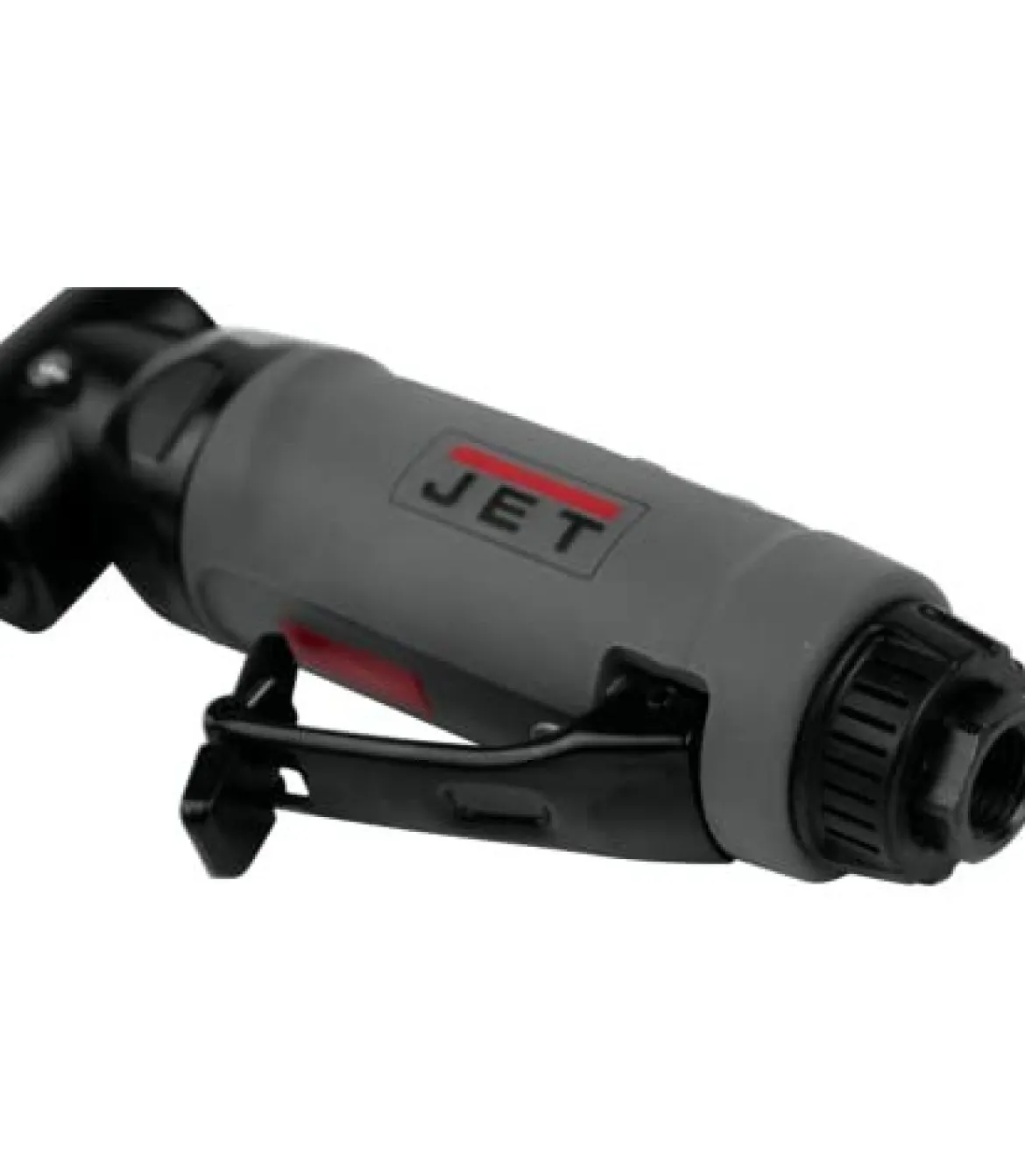

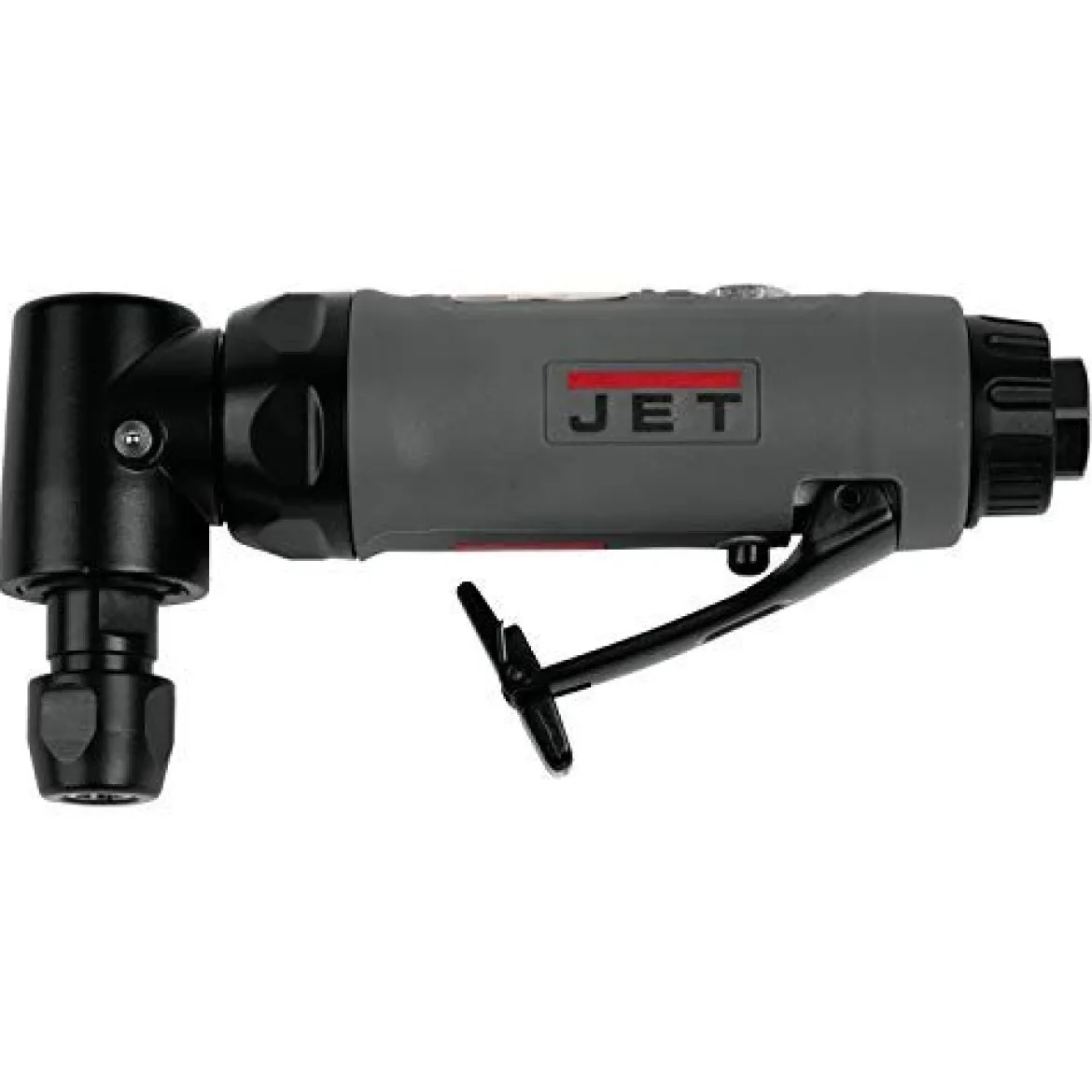

Jet JAT-415 Model 1/4-Inch Right-Angle Composite Die Grinder (505415)

The Jet JAT-415 Model 1/4-Inch Right-Angle Composite Die Grinder (505415) is a versatile tool designed for precision grinding, sanding, and polishing tasks. Its compact size and lightweight composite construction make it easy to handle in tight spaces.

KEY FEATURES AND BENEFITS:

• Powerful Performance: Equipped with a 0.34 HP motor, delivering efficient cutting and grinding capabilities.
• Durable Construction: Features precision beveled gears and industrial bearings for extended tool life and smooth operation.
• Enhanced Safety: Advanced lock-off switch prevents accidental start-up, and the easy release safety lever ensures quick and secure operation.
• Comfortable Use: Rear adjustable exhaust directs air away from the operator, and the lightweight design reduces user fatigue.
• Precise Control: Built-in air regulator allows for precise speed adjustment to match various applications.

SPECIFICATIONS:

• Air Consumption: 2.6 CFM
• Air Inlet: 1/4 NPT
• Air Pressure: 90 PSI
• Collet Size: 1/4 inch
• Free Speed: 20,000 RPM
• Overall Length: 6.1 inches
• Weight: 1.1 lbs
• Warranty: 2 years

HOW TO USE:

1. Inspect the tool: Before use, carefully examine the die grinder for any damage or wear.
2. Connect the air hose: Securely attach the air hose to the 1/4″ NPT air inlet.
3. Adjust air pressure: Utilize the built-in air regulator to set the desired air pressure for the application.
4. Install the desired accessory: Choose the appropriate grinding or polishing accessory and securely tighten it into the 1/4″ collet.
5. Engage the tool: Hold the die grinder firmly with both hands and activate the lock-off switch to start the tool.
6. Operate the tool: Guide the die grinder along the workpiece, applying gentle pressure and maintaining control.
7. Release the tool: To stop the tool, release the lock-off switch and wait for the spindle to come to a complete stop before setting it down.
8. Disconnect the air hose: After use, turn off the air compressor and disconnect the air hose from the die grinder.
9. Clean the tool: Wipe down the die grinder with a clean cloth to remove debris and oil.

BENEFITS OF USING Jet JAT-415 Model 1/4-Inch Right-Angle Composite Die Grinder (505415):

• Increased efficiency and productivity due to powerful performance.
• Enhanced safety with advanced lock-off switch and easy release safety lever.
• Improved comfort and reduced user fatigue with lightweight design and adjustable exhaust.
• Precise control over grinding and polishing operations with built-in air regulator.
• Extended tool life and reliable performance thanks to durable construction.

FEATURES:

• Powerful 0.34 HP motor for efficient material removal
• Lightweight composite housing for easy handling
• Precision beveled gears for smooth operation and reduced vibration
• Industrial bearings for long-lasting performance
• Advanced lock-off switch for enhanced safety
• Easy release safety lever for quick and secure operation
• Built-in air regulator for precise speed control
• Rear adjustable exhaust for operator comfort
• Compact design for working in tight spaces
