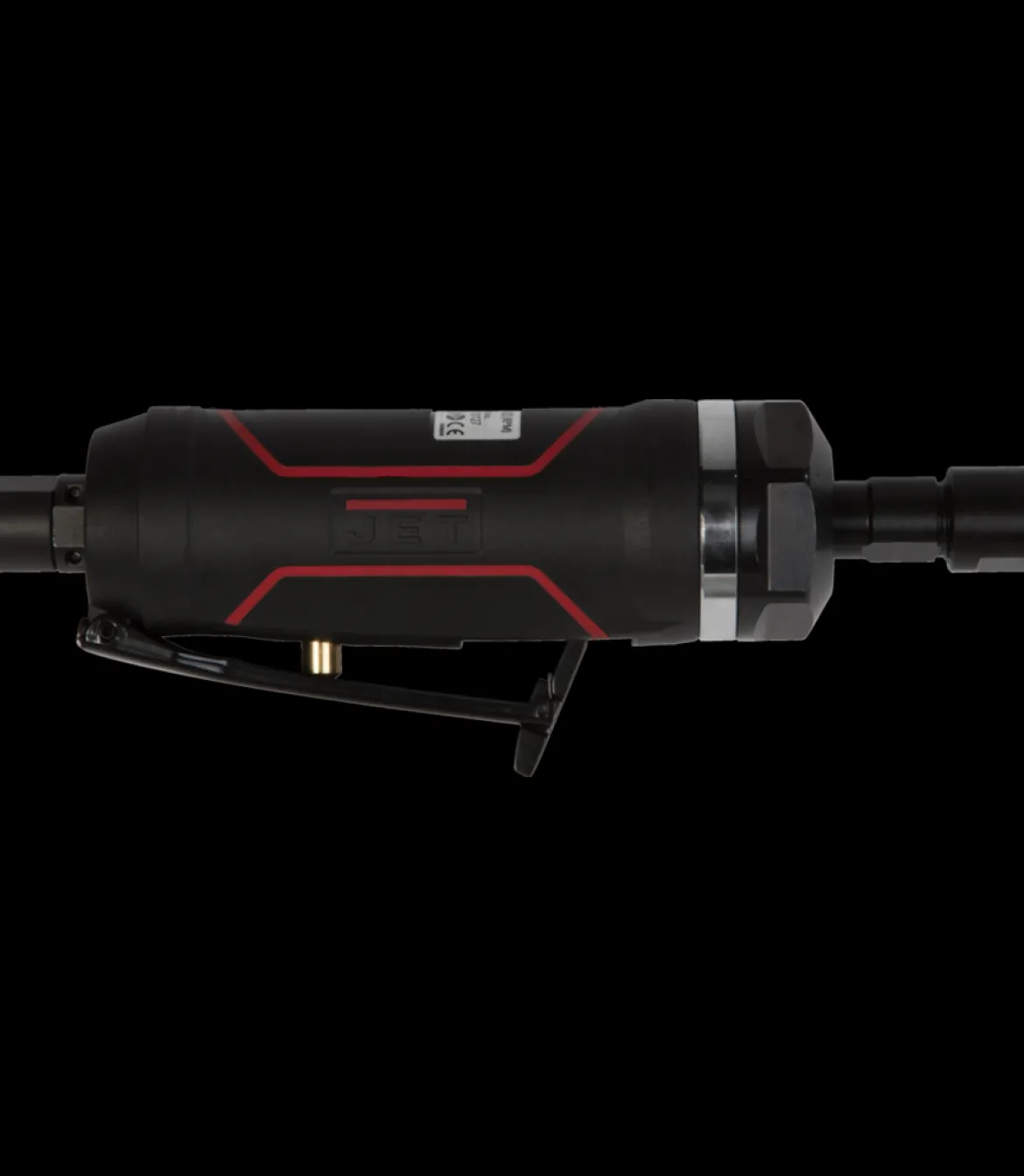

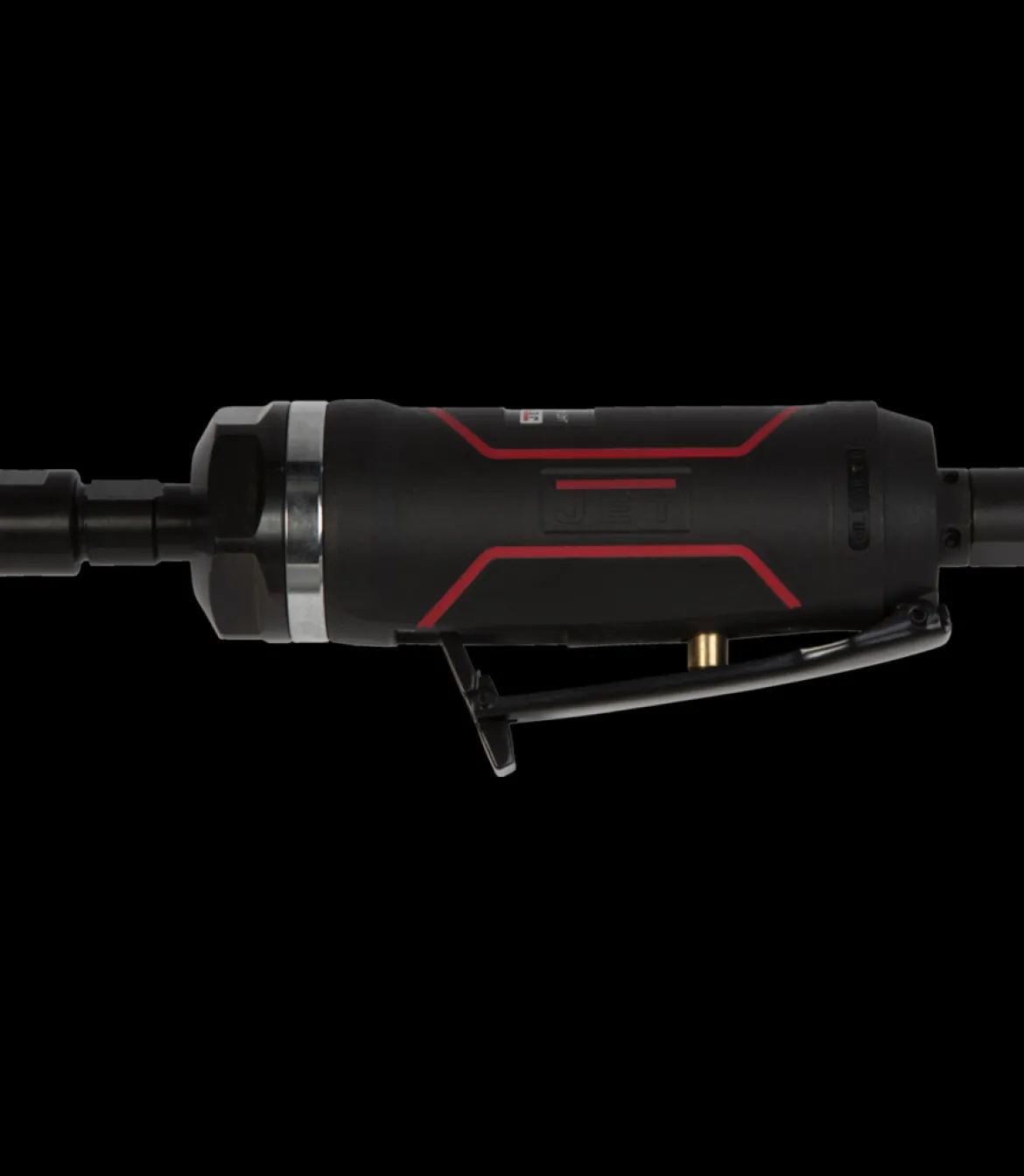

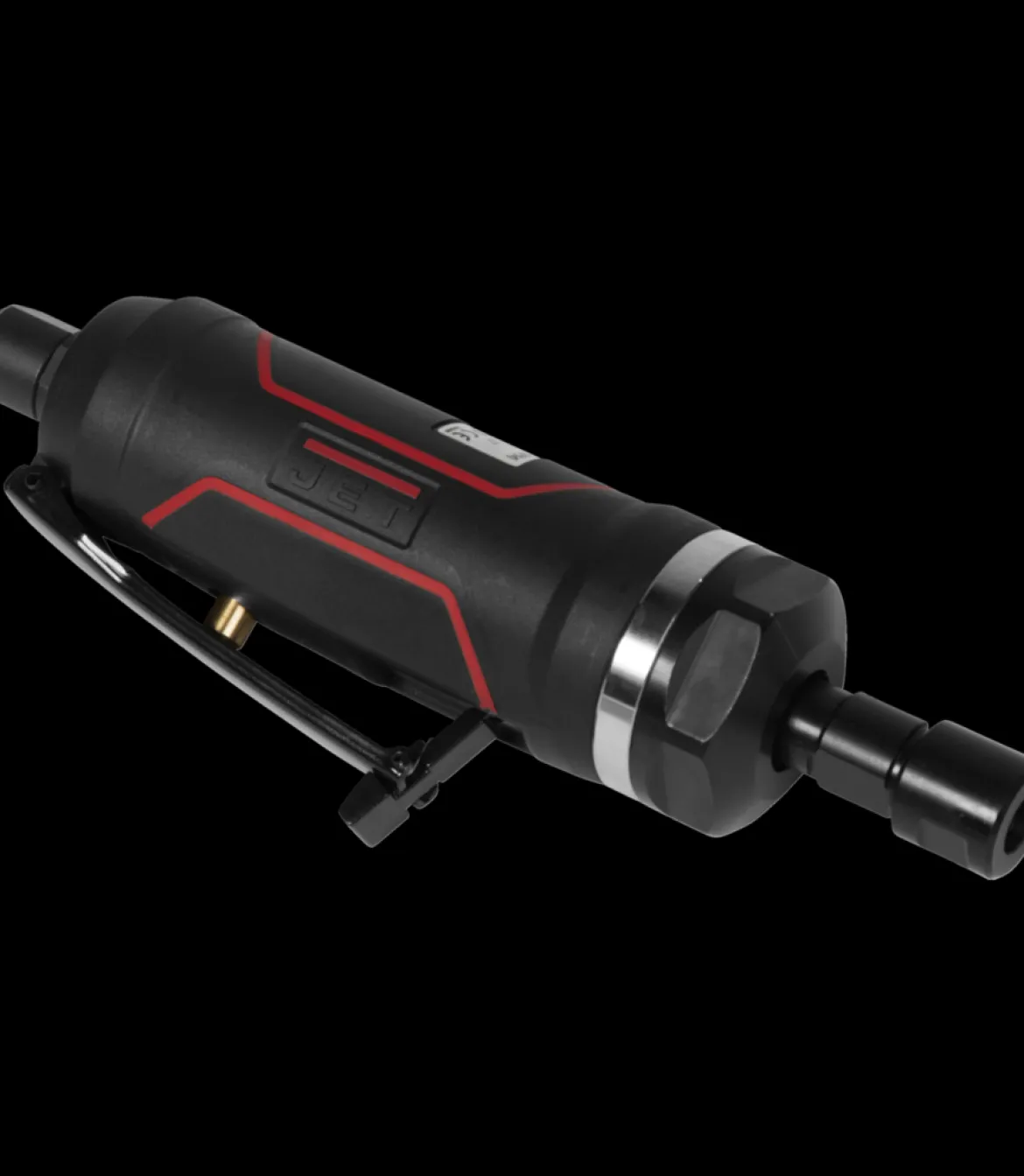

Jet JAT-480 R12 1 HP Industrial Die Grinder (505480)

The Jet JAT-480 R12 1 HP Industrial Die Grinder (505480) is a robust industrial die grinder built for demanding work environments. Packed with a powerful 1 HP motor, this tool delivers exceptional performance without compromising on durability. Designed for those long, intense workdays, it’s engineered to withstand the toughest conditions.

KEY FEATURES AND BENEFITS:

• Powerful 1 HP Motor: Provides ample power for heavy-duty grinding and polishing tasks.
• Impact-Resistant Composite Housing: Reduces tool weight, minimizing user fatigue.
• Sealed Ball Bearing Design: Protects internal components from contaminants, ensuring smooth operation.
• Variable-Speed Throttle: Offers precise control over grinding speed.
• 360° Rotating Air Inlet: Prevents hose tangles for enhanced safety and convenience.
• 1/4″ Erickson Collet: Accepts a wide range of grinding and polishing accessories.
• Rear Facing Exhaust: Improves user comfort by directing air away from the operator.

SPECIFICATIONS:

• Body Type: Full, Straight
• Collet Size: 1/4 inch
• Free Speed: 20,000 RPM
• Horsepower: 1 HP
• Air Pressure: 90 PSI
• Air Inlet: 1/4 inch NPT
• Air Hose: 3/8 inch ID
• Air Consumption: 5.3 CFM
• Sound Power: 98 dB(A)
• Sound Pressure: 87 dB(A)
• Vibration Value: 0.46 m/s²
• Overall Length: 7.9 inches
• Weight: 2.2 lbs

HOW TO USE:

1. Inspect the Tool: Before use, carefully examine the die grinder for any damage or wear.
2. Connect the Air Hose: Securely attach the air hose to the 360° rotating air inlet.
3. Install the Accessory: Choose the appropriate grinding or polishing accessory and securely tighten it into the 1/4″ Erickson collet.
4. Adjust the Speed: Utilize the variable-speed throttle to set the desired grinding speed.
5. Start the Grinder: Engage the trigger to start the tool.
6. Maintain Control: Hold the die grinder firmly with both hands and guide it along the work surface.
7. Safety First: Wear appropriate safety gear, including eye protection, ear protection, and a dust mask.

BENEFITS OF USING JET JAT-480 R12 1 HP INDUSTRIAL DIE GRINDER (505480):

• Increased Productivity: Powerful motor and variable speed control enhance efficiency.
• Improved Comfort: Lightweight design and rear exhaust reduce user fatigue.
• Enhanced Durability: Built to withstand demanding work conditions.
• Versatility: Accepts various grinding and polishing accessories for diverse applications.
• Safety: 360° rotating air inlet and safety features minimize risks.

FEATURES:

• Powerful 1 HP motor
• Impact-resistant composite housing
• Sealed ball bearing design
• Variable-speed throttle with safety lock
• 360° rotating air inlet
• 1/4″ Erickson collet
• Rear facing exhaust
