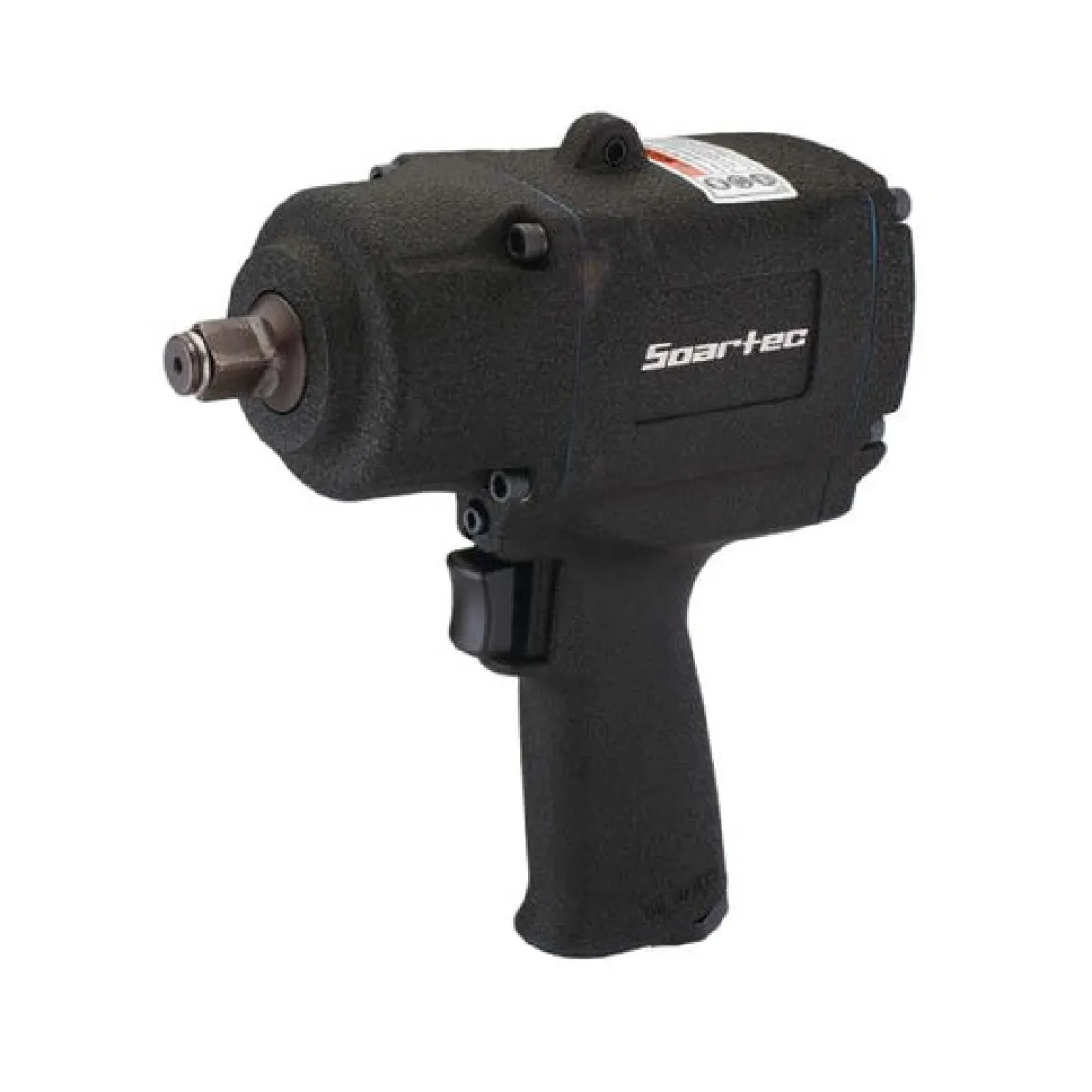

Soartec 1/2″ 960 ft-lb Air Impact Wrench (WS-208)

The Soartec 1/2″ 960 ft-lb Air Impact Wrench (WS-208) is a high-performance pneumatic tool engineered to handle the most challenging fastening and removal tasks. With its significant torque output, this impact wrench is particularly effective in environments where fasteners are prone to rust and seizing, such as regions experiencing heavy snowfall. Its robust construction and intelligent design ensure consistent power and operational reliability, making it a valuable asset for professionals in various demanding industries.

KEY FEATURES AND BENEFITS:

• Exceptional Torque Output: Delivers a maximum reverse torque of 960 ft-lbs (nut busting torque) and 860 ft-lbs of maximum forward torque, providing the necessary force for stubborn or corroded fasteners. The working torque ranges from 50 to 675 ft-lbs for versatility.
• Optimized for Challenging Environments: Specifically designed to effectively remove fasteners in conditions where they are prone to rust and difficulty after exposure to elements like snowfall.
• Advanced Motor Efficiency: Features a spring-mounted blade motor design that maintains maximum efficiency and prevents power loss or deadlock during operation, ensuring consistent performance.
• Precise Power Control: Equipped with a 6-position power regulator, offering 3 distinct settings for forward rotation and 3 for reverse, allowing users to tailor power output to the specific task.
• Enhanced Operational Control: A special trigger design enables low-pressure start-up, providing smoother initial engagement and improved user control.
• Superior Housing Material: Constructed with a hardened aluminum alloy case, offering high resistance to wear and contributing to the tool’s overall longevity.

SPECIFICATIONS:

• Drive Size: 1/2 inch
• Max. RPM (Free Speed): 7,500 RPM
• Max. Reverse Torque: 960 ft-lbs.
• Max. Forward Torque: 860 ft-lbs.
• Min. Working Torque: 50 ft-lbs.
• Max. Working Torque: 675 ft-lbs.
• Air Consumption: 17 cfm (485 L/min)
• Max. PSI: 90 PSI
• Air Inlet Size: 1/4 inch NPT
• Min. Hose Size: 3/8 inch
• Bolt Capacity: 0.63 inch (16 mm)
• Noise Level: 101.8 dB(A)
• Tool Length: 7 inches (178 mm)
• Weight: 5.7 lb
• Clutch Type: Twin Hammer
• Warranty: 3 Years

HOW TO USE:

1. Safety First: Before operation, always wear appropriate personal protective equipment, including safety glasses and hearing protection. Ensure your workspace is clear and well-lit.
2. Connect Air Supply: Attach a 3/8-inch minimum diameter air hose to the 1/4-inch NPT air inlet on the impact wrench. Ensure the air compressor can supply at least 17 CFM at 90 PSI for optimal performance.
3. Install Socket: Select the correct size impact-rated socket for your fastener and securely attach it to the 1/2-inch square drive anvil of the wrench.
4. Select Direction and Power: Use the 6-position power regulator to choose the desired direction (forward for tightening, reverse for loosening) and power setting (3 settings for each direction). Start with a lower setting for initial engagement if unsure of the required torque.
5. Position on Fastener: Place the socket firmly onto the nut or bolt head, ensuring it is fully engaged to prevent stripping.
6. Operate Trigger: Gently squeeze the trigger to begin operation. The special trigger design allows for low-pressure start-up, providing controlled initiation of the tool’s power. Apply steady pressure as the wrench works.
7. Monitor and Adjust: Observe the fastener’s movement. If more torque is needed for loosening, adjust to a higher power setting. For tightening, ensure proper torque specifications are met, potentially using a torque wrench for final verification.
8. Disconnect After Use: Once the task is complete, release the trigger, disconnect the air hose, and store the tool in a clean, dry place.

BENEFITS OF USING SOARTEC 1/2″ 960 FT-LB AIR IMPACT WRENCH (WS-208):

• Facilitates rapid and efficient removal of even severely corroded or overtightened nuts and bolts.
• Reduces manual effort and fatigue compared to using traditional wrenches, increasing productivity.
• Provides consistent and reliable performance for heavy-duty applications due to its robust twin hammer mechanism and advanced motor.
• Offers versatile power control through its 6-position regulator, allowing adaptation to different fastening requirements.
• Designed for a long service life, supported by its hardened aluminum alloy construction and a 3-year warranty.
• Improves operational precision with its low-pressure activation trigger, contributing to better control over the tool’s initial power delivery.

FEATURES:

• Spring-mounted blade motor component to ensure continuous operational efficiency.
• Handheld pistol grip configuration for comfortable and balanced operation.
• Optimized body-to-weight ratio for improved handling during extended use.
• Variable speed trigger mechanism for adjustable rotational control.
• Reversible functionality for both tightening and loosening applications.
• Integrated hammer mechanism for high-impact force delivery.
