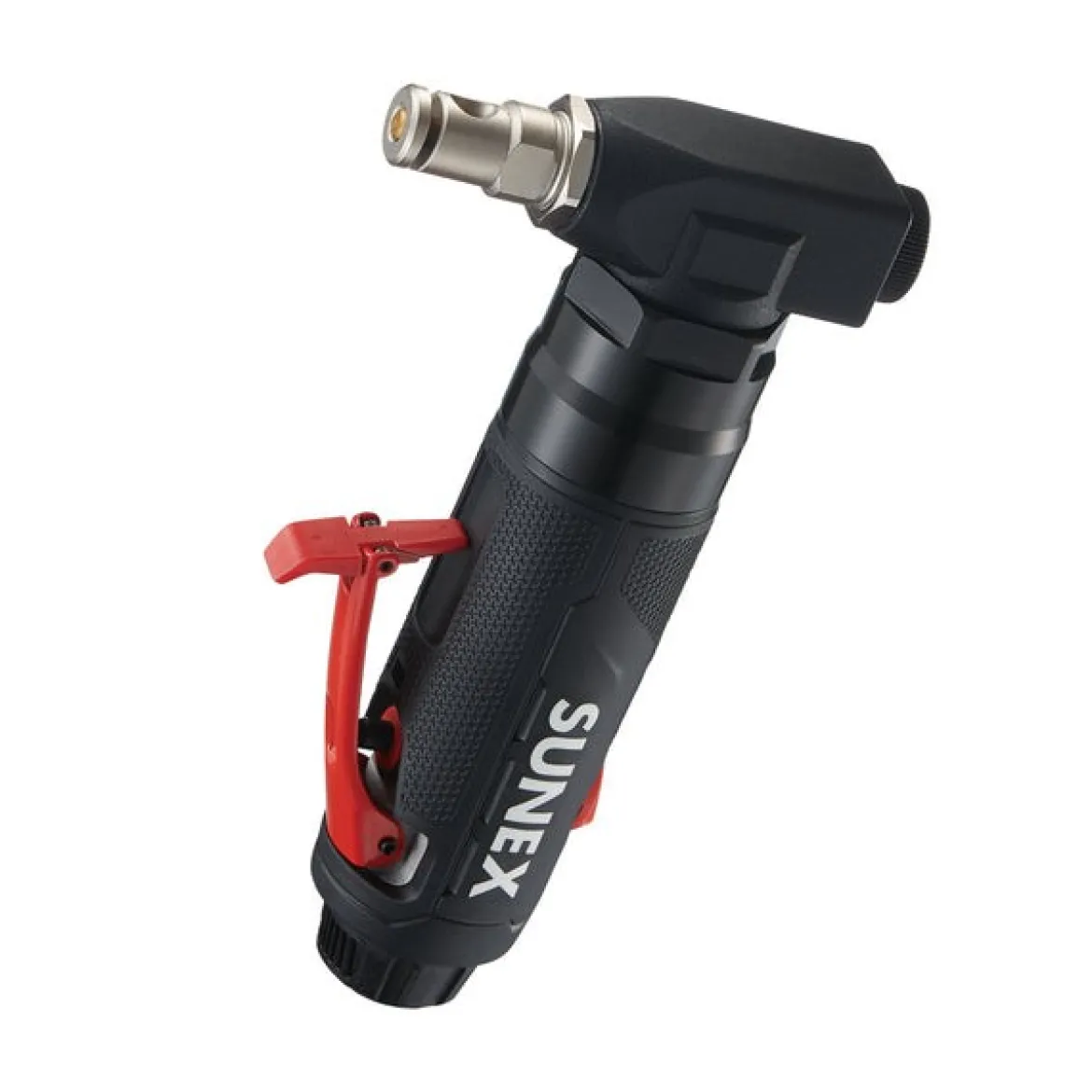

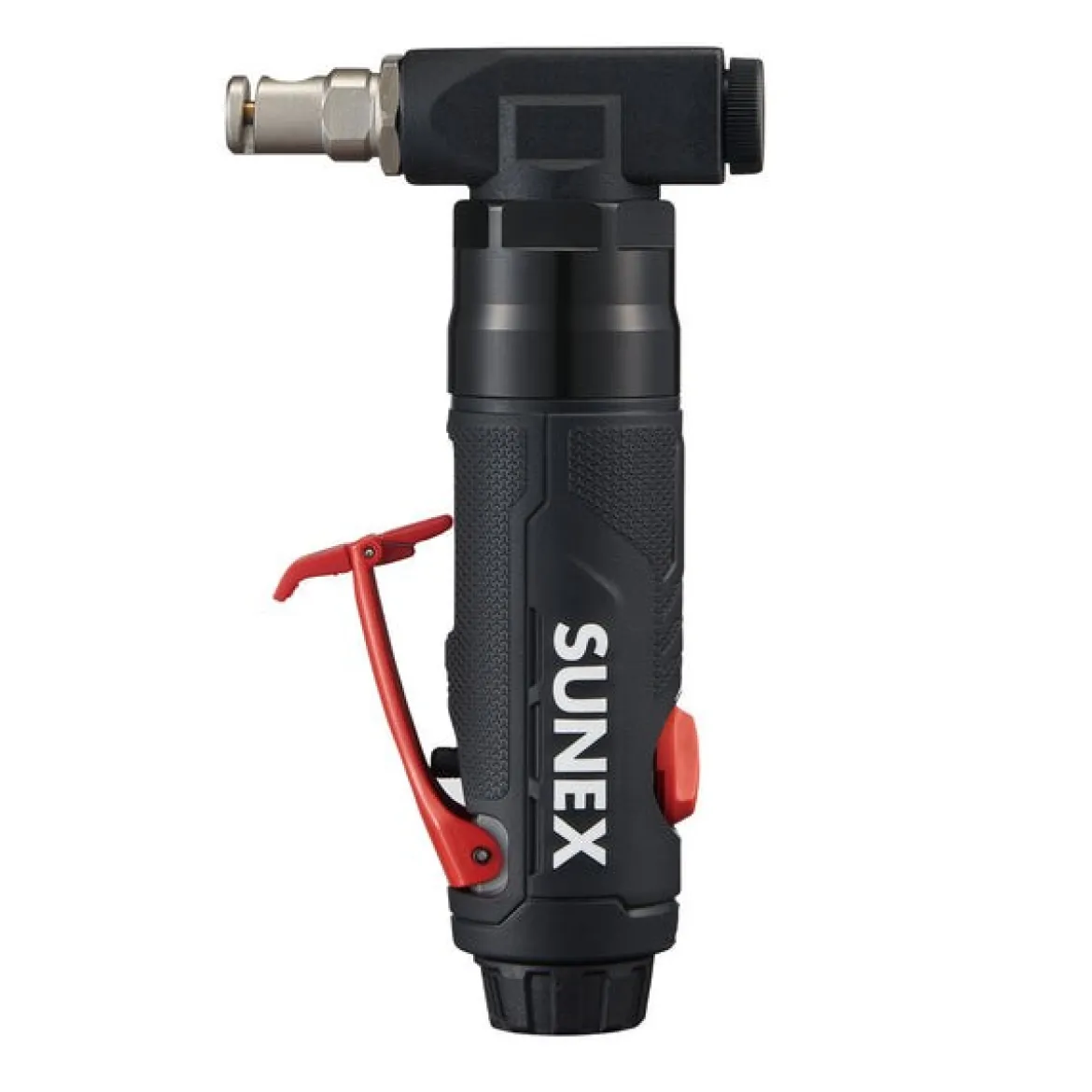

Sunex Tools 0.5HP Air Nibbler (SX6212)

Sunex Tools 0.5HP Air Nibbler (SX6212) is a professional pneumatic tool engineered for precision sheet metal fabrication and automotive bodywork. Unlike traditional metal shears that can curl or bend the edges of the material, this air nibbler utilizes a high-speed reciprocating punch and die system to remove small “chips” of metal, ensuring that the remaining workpiece stays flat and free of distortion. This is critical for high-quality assembly and finishing.

Key Features and Benefits:

• High-Speed Performance: The 0.5HP motor maintains a consistent 2,500 Strokes Per Minute (SPM), resulting in smoother cut edges and faster project completion.
• Oversized Punch: Distributes mechanical stress over a larger area, increasing the lifespan of the cutting head.
• Adjustable Power Regulator: Permits fine-tuning of speed to match various metals, preventing chatter or jagged edges.
• Functional Rear Exhaust: Directs air and metal debris away from the cutting line, maintaining a clear field of vision.

Specifications:

• Motor Power: 0.5 HP
• Cutting Capacity: 18-Gauge Sheet Metal
• Free Speed: 2,500 SPM
• Air Consumption: 3.5 CFM
• Operating Pressure: 90 PSI
• Cutting Radius: 3/16″
• Weight: 2.25 lbs
• Air Inlet: 1/4″ NPT

How to Use:

• Prepare the Air Supply: Connect the tool to a regulated air source set to 90 PSI using a 1/4″ NPT fitting. Ensure the air line is lubricated with pneumatic tool oil.
• Adjust the Speed: Use the built-in power regulator to set the desired stroke speed based on the thickness of your metal.

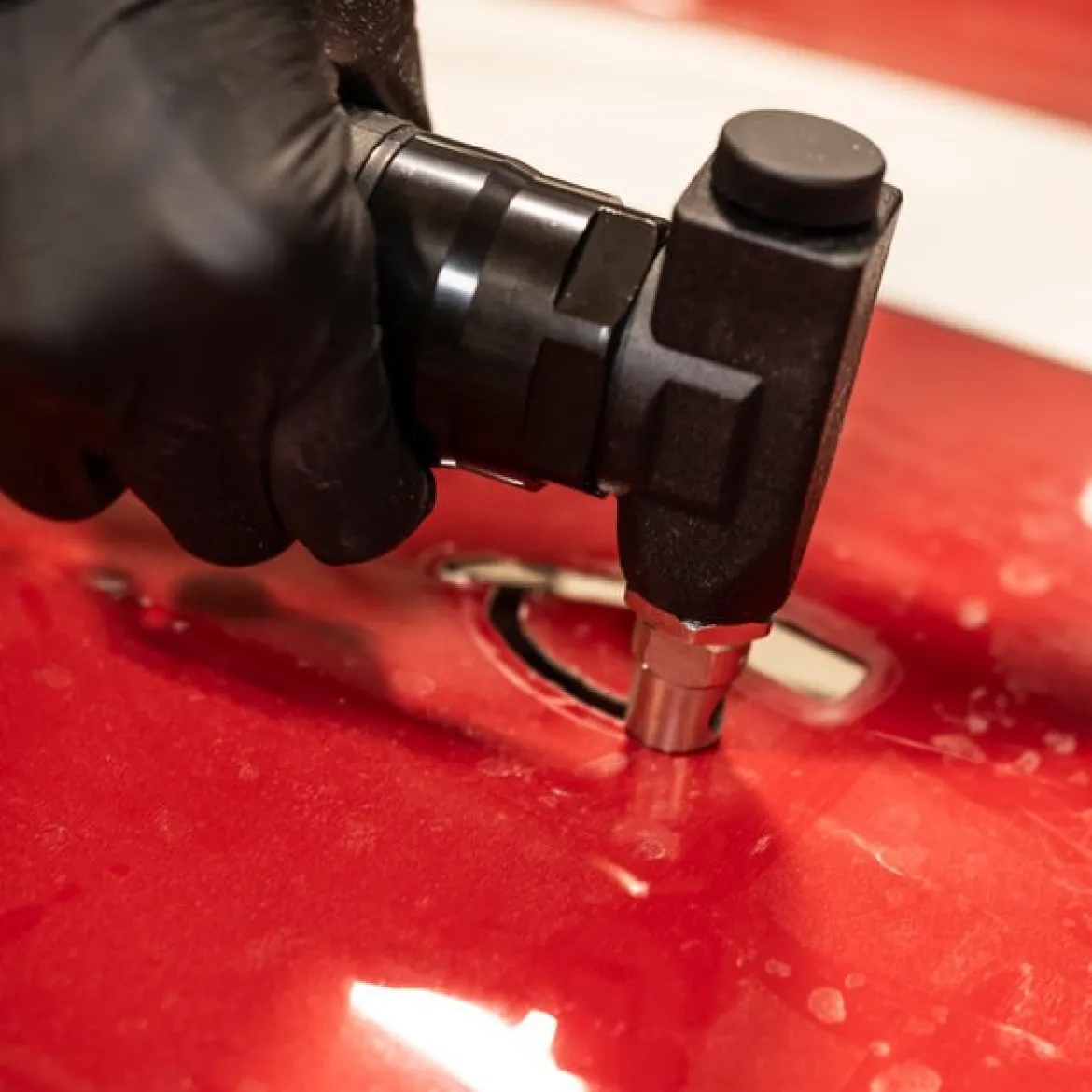

• Position the Tool: Place the nibbler die over the edge of the sheet metal. For center cuts, drill a pilot hole large enough for the punch head.
• Engage the Safety: Depress the safety lock-off trigger to start the motor.

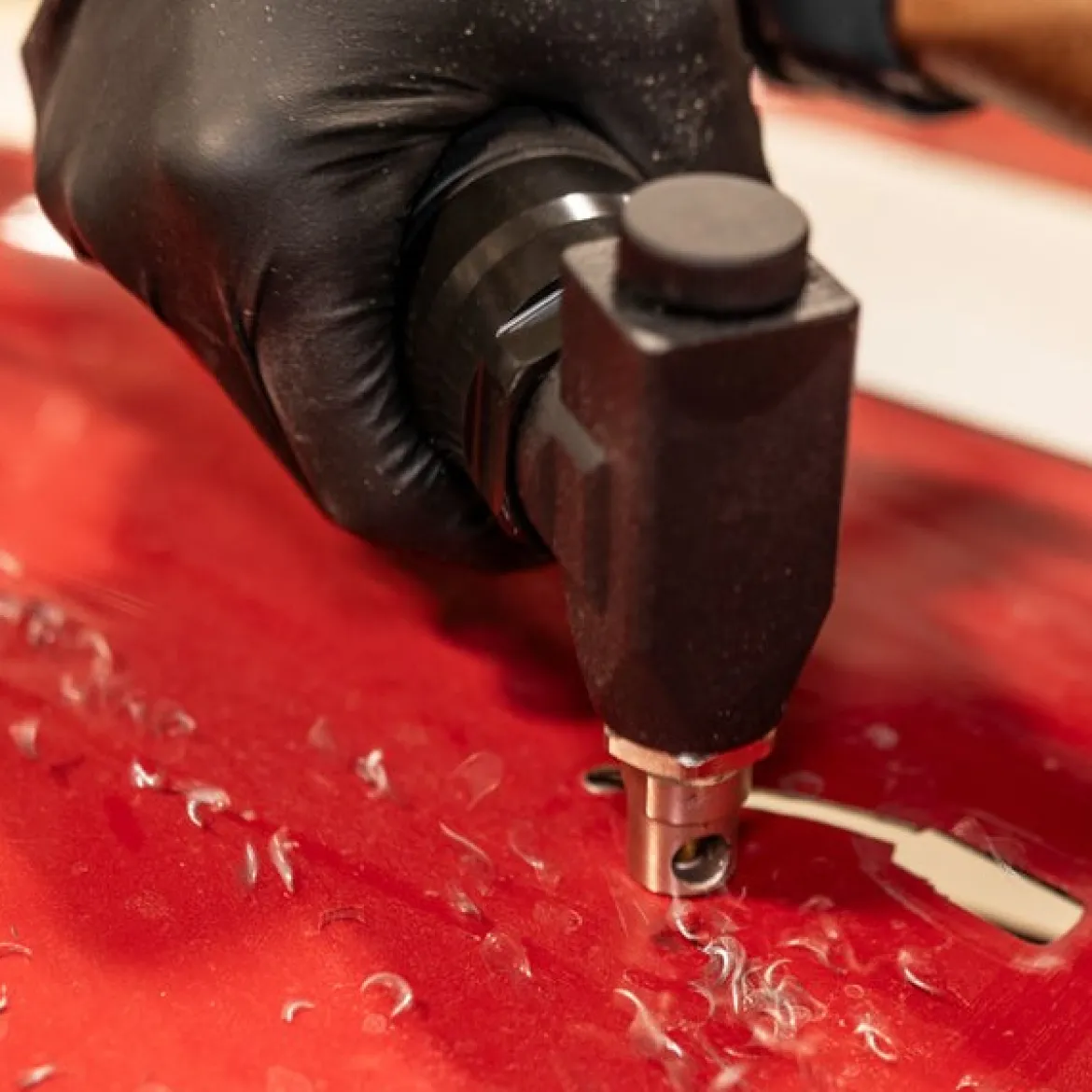

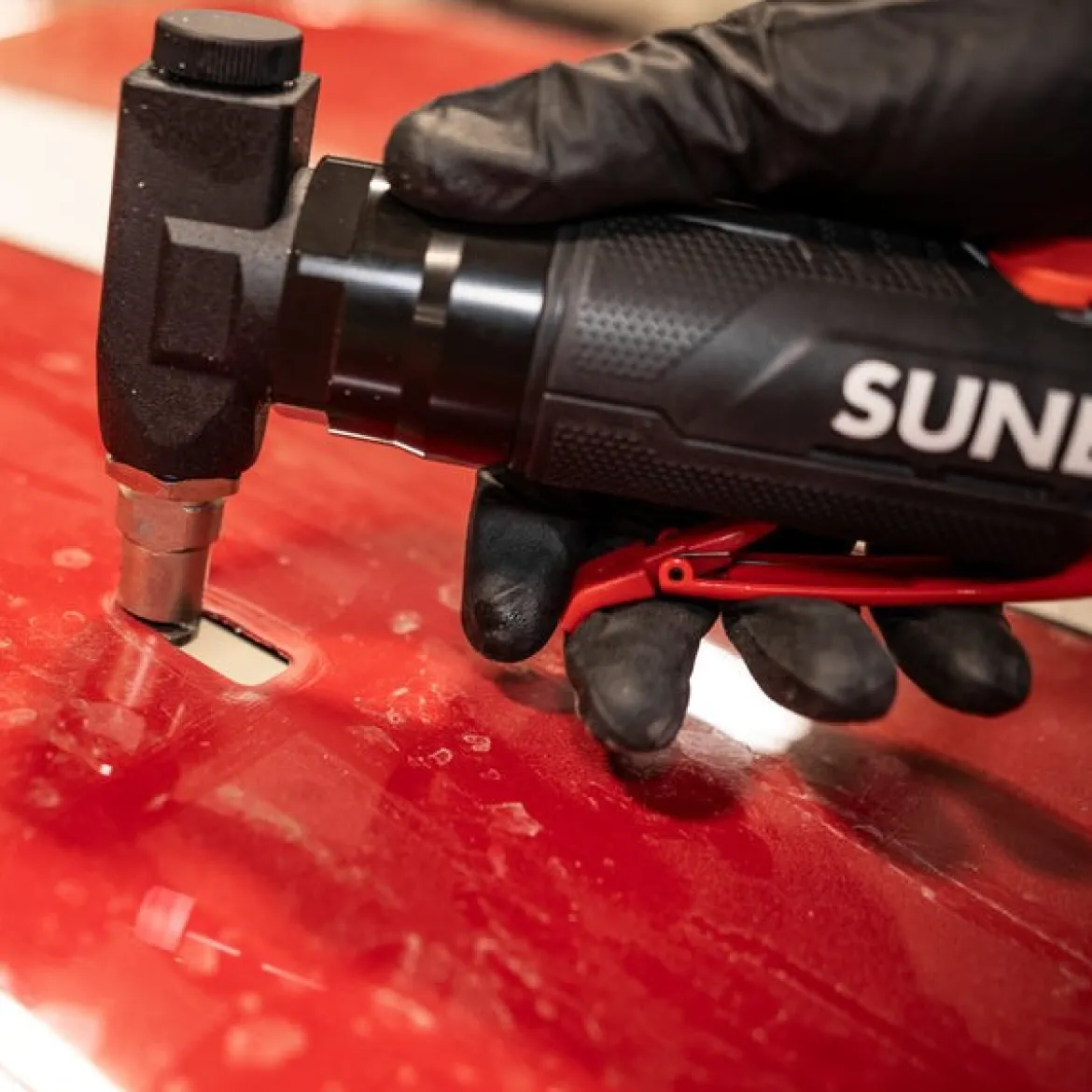

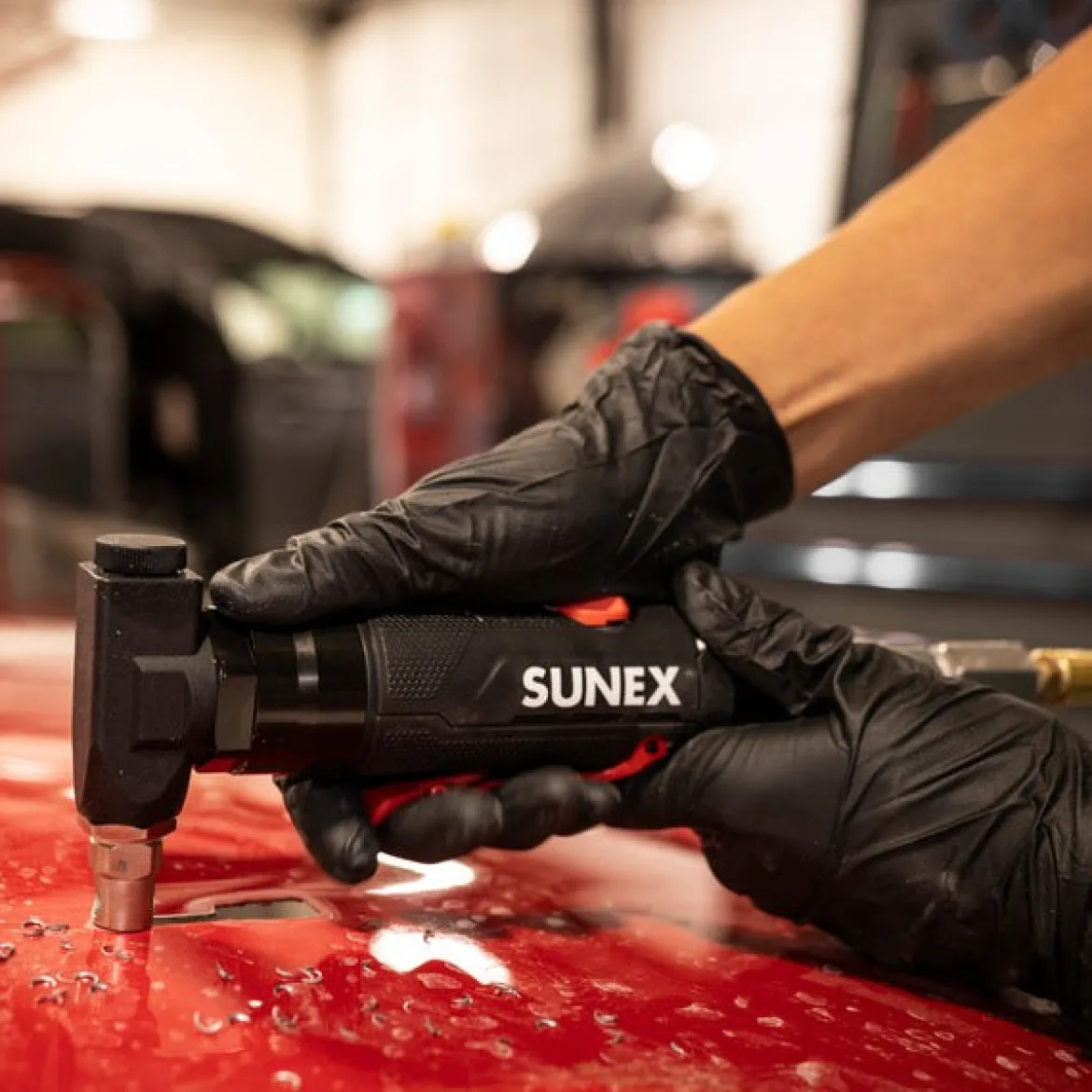

• Guide the Cut: Push the tool forward firmly but gently along your marked line, allowing the 2,500 SPM motor to do the work.
• Navigate Curves: For curved cuts, pivot the tool slowly, using the 3/16″ radius for tight turns without stopping the tool.
• Power Down: Release the trigger and disconnect the air supply once the cut is complete. Clean the metal chips from the die area.

Benefits of Using Sunex Tools 0.5HP Air Nibbler (SX6212):

• Quality Fabrication: Eliminates material warping, ensuring a reliable and clean finish.
• Reduced Physical Strain: At only 2.25 lbs, it is perfect for large-scale projects or overhead work.
• Increased Efficiency: The combination of the 3/16″ radius and oversized punch allows for more detailed work with fewer tool changes.

Features:

• Reciprocating Oversized Punch: Designed to extend maintenance intervals.
• Integrated Safety Lock-Off: Prevents activation during transport or handling.
• Composite Housing Construction: Offers a high power-to-weight ratio for easier handling.
• Ergonomic Overmold Surface: Improves grip and reduces vibration transfer to the hand.
• Directional Rear Exhaust: Keeps the cutting path clear of oil and metal fragments.
• Precision Die Head: Allows for tight 3/16-inch turning radius for detailed fabrication.
• Variable Speed Control: Enables real-time adjustment via a built-in regulator to match application requirements.
