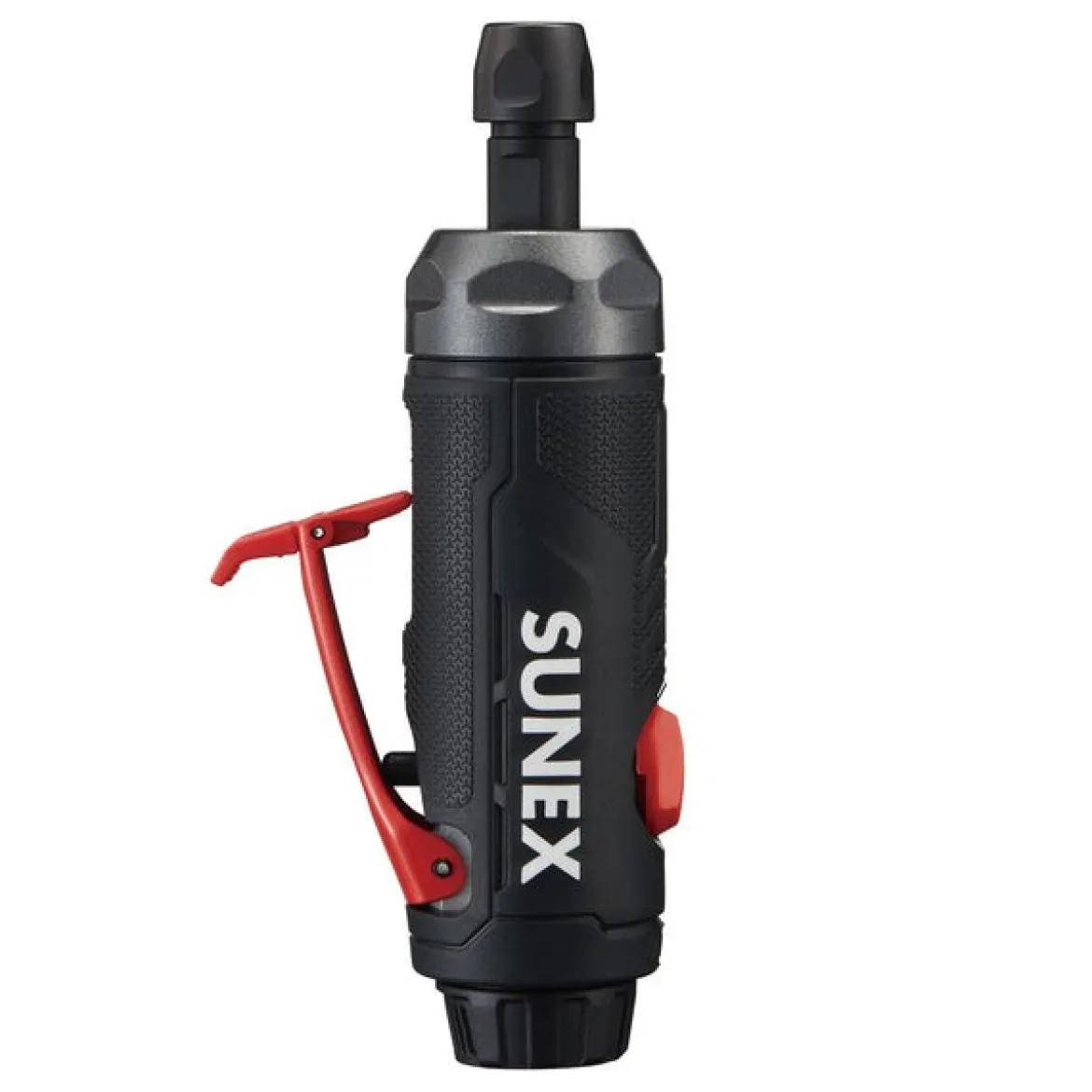

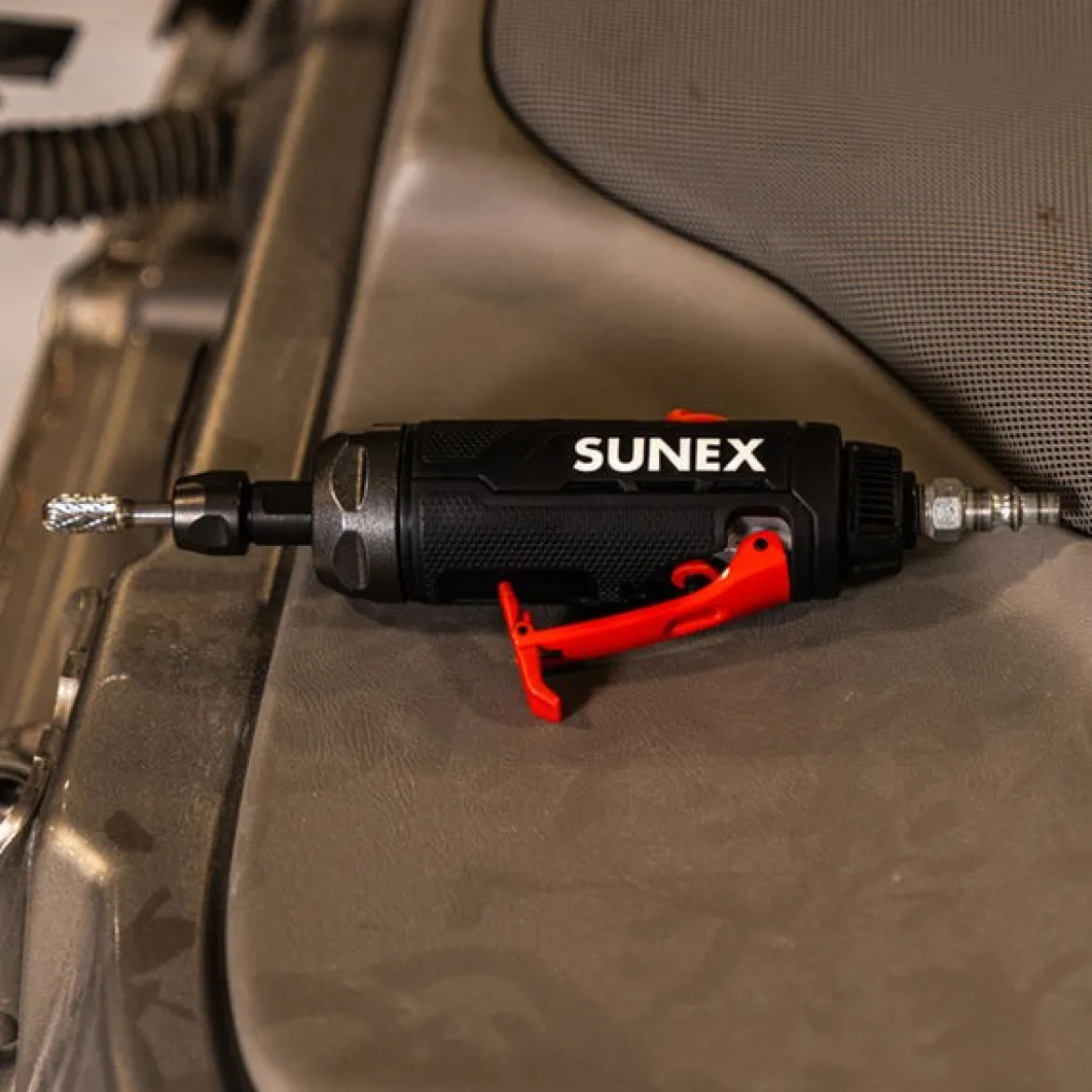

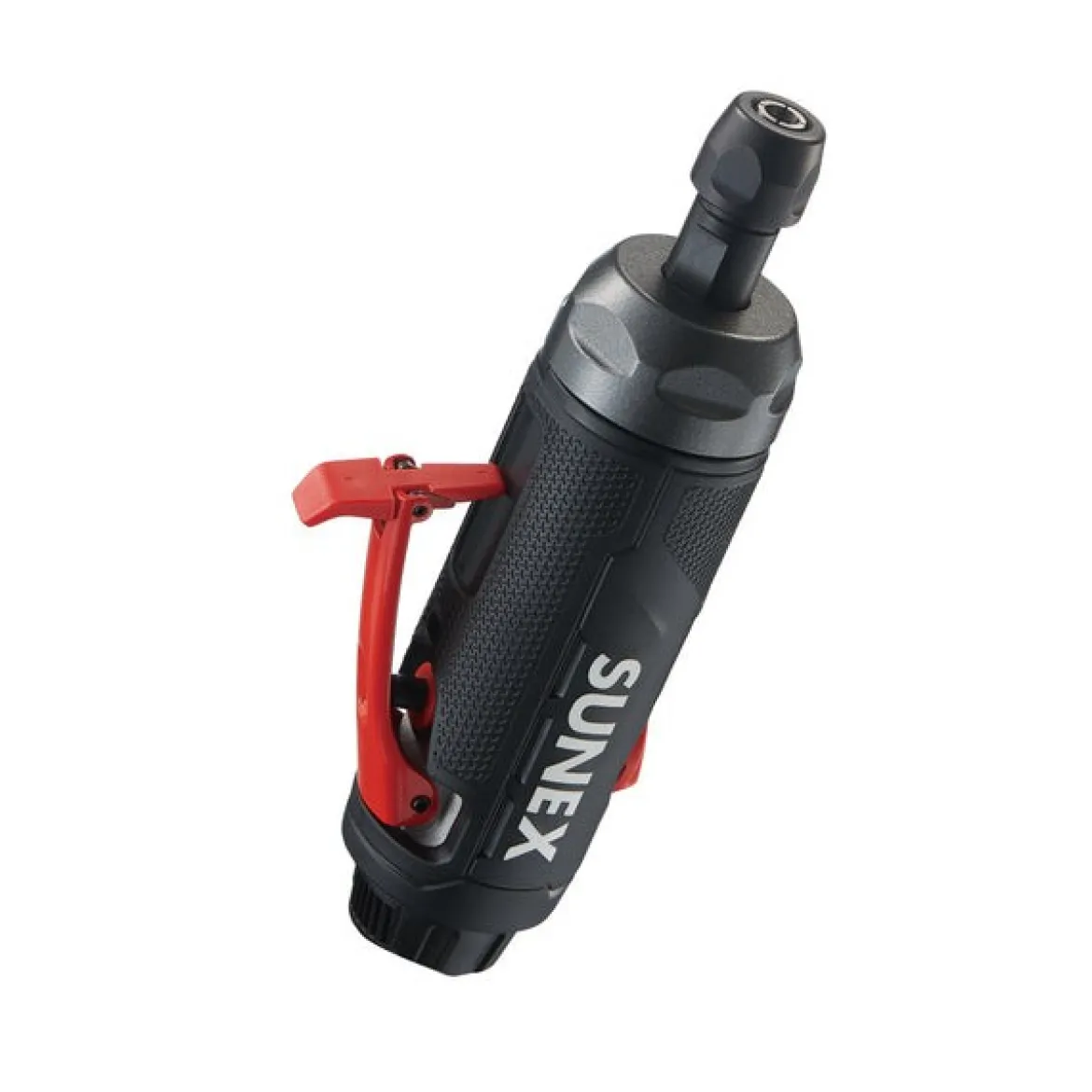

Sunex Tools 0.5HP Straight Die Grinder (SX5207)

Sunex Tools 0.5HP Straight Die Grinder (SX5207) is a professional-grade pneumatic tool engineered for high-speed material removal and precision finishing. Driven by a 0.5HP motor, this grinder provides the necessary force for heavy-duty applications such as porting, weld grinding, and deburring. The tool balances performance with user comfort, utilizing a lightweight composite body that minimizes physical strain during repetitive or long-duration tasks. With a free speed of 22,000 RPM, the SX5207 allows for both aggressive grinding and fine detailing on various metal surfaces.

Key Features and Benefits:

• Strong 0.5HP Motor: Delivers high-speed performance for demanding tasks like porting, weld grinding, deburring, and polishing.
• Precision 3-Piece 1/4″ Collet: Provides secure accessory retention and reliable performance across a wide range of grinding applications.

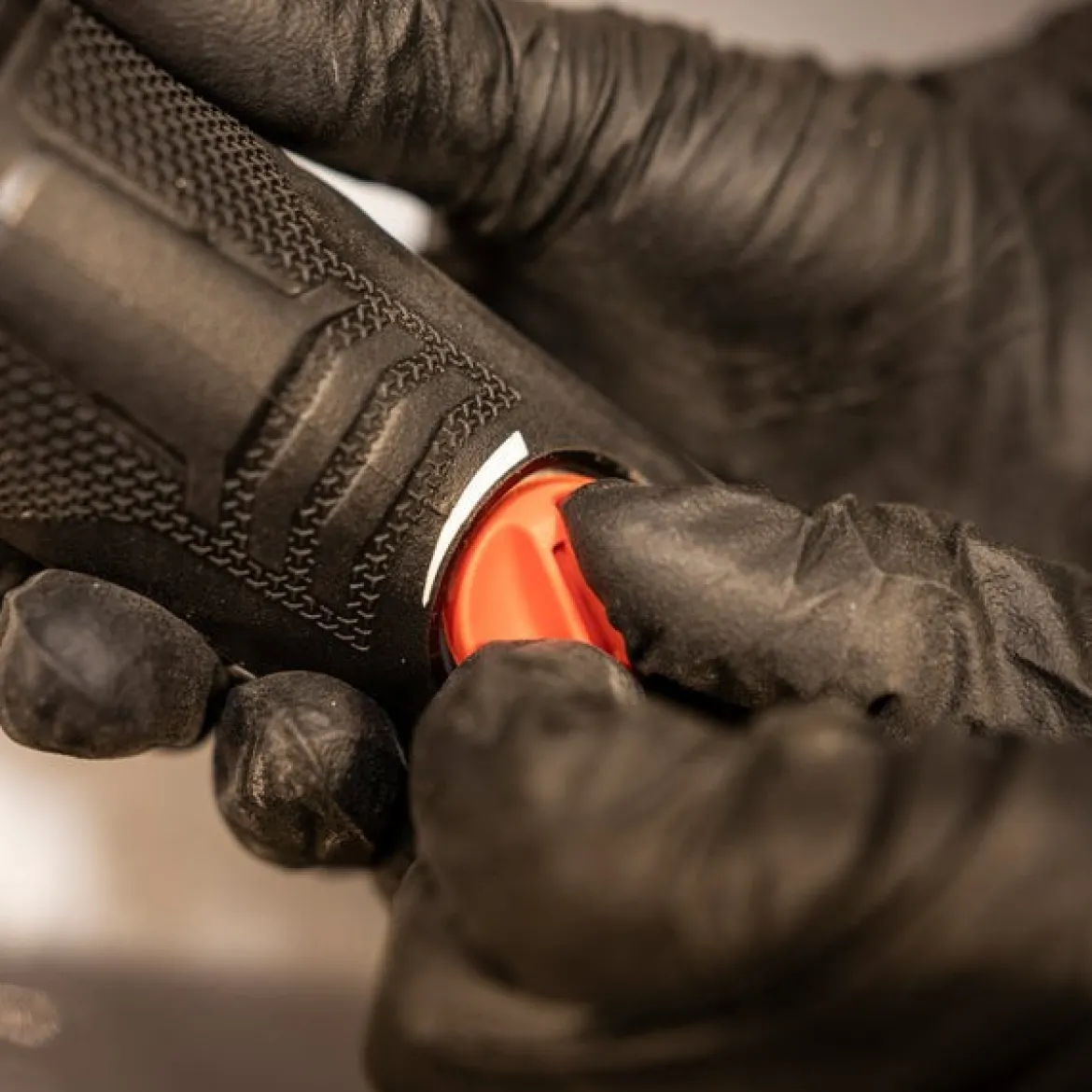

• Adjustable Power Regulator: Enables precise speed control for different materials, maximizing efficiency and safety.
• Lightweight Composite Body: Weighs only 1.3 lbs, built for longevity while reducing operator fatigue during long sessions.
• Low Sound Level: Operates at a sound level of 82.0 dBA for a quieter work environment, reducing noise pollution and improving user comfort.
• Ergonomic Overmold Grip: Provides a comfortable, non-slip hold and reduces vibration for improved handling and control.
• Safety Lock-Off Trigger: Prevents accidental start-up, adding safety in busy or mobile work environments.
• Rear Exhaust System: Directs air and debris away from the work surface and operator, maintaining visibility and a cleaner workspace.
• 22,000 RPM Free Speed: Ensures fast material removal, fine detailing, and efficient performance across a variety of grinding tasks.

Specifications:

• Motor Power: 0.5 HP
• Free Speed: 22,000 RPM
• Collet Size: 1/4″
• Sound Level: 82.0 dBA
• Weight: 1.3 lbs
• Air Consumption: 3.5 CFM
• WhatÕs Included: Sunex SX5207 Straight Die Grinder, 1/4″ Collet, Collet Wrenches

How to Use:

• Air Supply Connection: Connect the die grinder to a regulated air supply capable of delivering 3.5 CFM at 90 PSI. Ensure the air line is clean and lubricated.
• Accessory Installation: Use the provided wrenches to loosen the 3-piece collet. Insert the 1/4″ shank of your chosen grinding or polishing accessory fully into the collet, then tighten firmly.
• Speed Adjustment: Set the adjustable power regulator to the desired level based on the material and the maximum RPM rating of your accessory.
• Activation: Disengage the safety lock-off mechanism on the trigger.
• Operation: Squeeze the trigger to start the motor. Apply the accessory to the workpiece with light, consistent pressure, allowing the 22,000 RPM speed to do the cutting.
• Deactivation: Release the trigger to stop the tool. The safety lock will automatically reset to prevent accidental restarts.

Benefits of Using Sunex Tools 0.5HP Straight Die Grinder (SX5207):

• High Power and Low Weight: The combination of a 0.5HP motor and a 1.3 lb composite body prevents bogging down and reduces arm fatigue, making it ideal for professional use.
• Quieter Operation: With a sound level of 82.0 dBA, this tool protects hearing and allows for better communication in the workplace.
• Improved Accuracy: The 3-piece collet system enhances cut accuracy by keeping accessories perfectly aligned, resulting in a smoother finish and less wear.

Features:

• Integrated Mechanical Safety Lever: Ensures the tool only operates when intended.
• Vibration-Dampening Overmold Surface: Enhances tactile feedback and user control.
• Internal Airflow Management: Vents exhaust through the back of the tool for improved work area cleanliness.
• Precision-Machined Internal Components: Designed for high-cycle industrial use.
• Variable Airflow Dial: Allows on-the-fly adjustments without needing to revisit the compressor.
• Composite Housing Material: Stays neutral in temperature for better hand comfort.
• Three-Segment Collet Design: Maximizes clamping force on accessory shanks.
