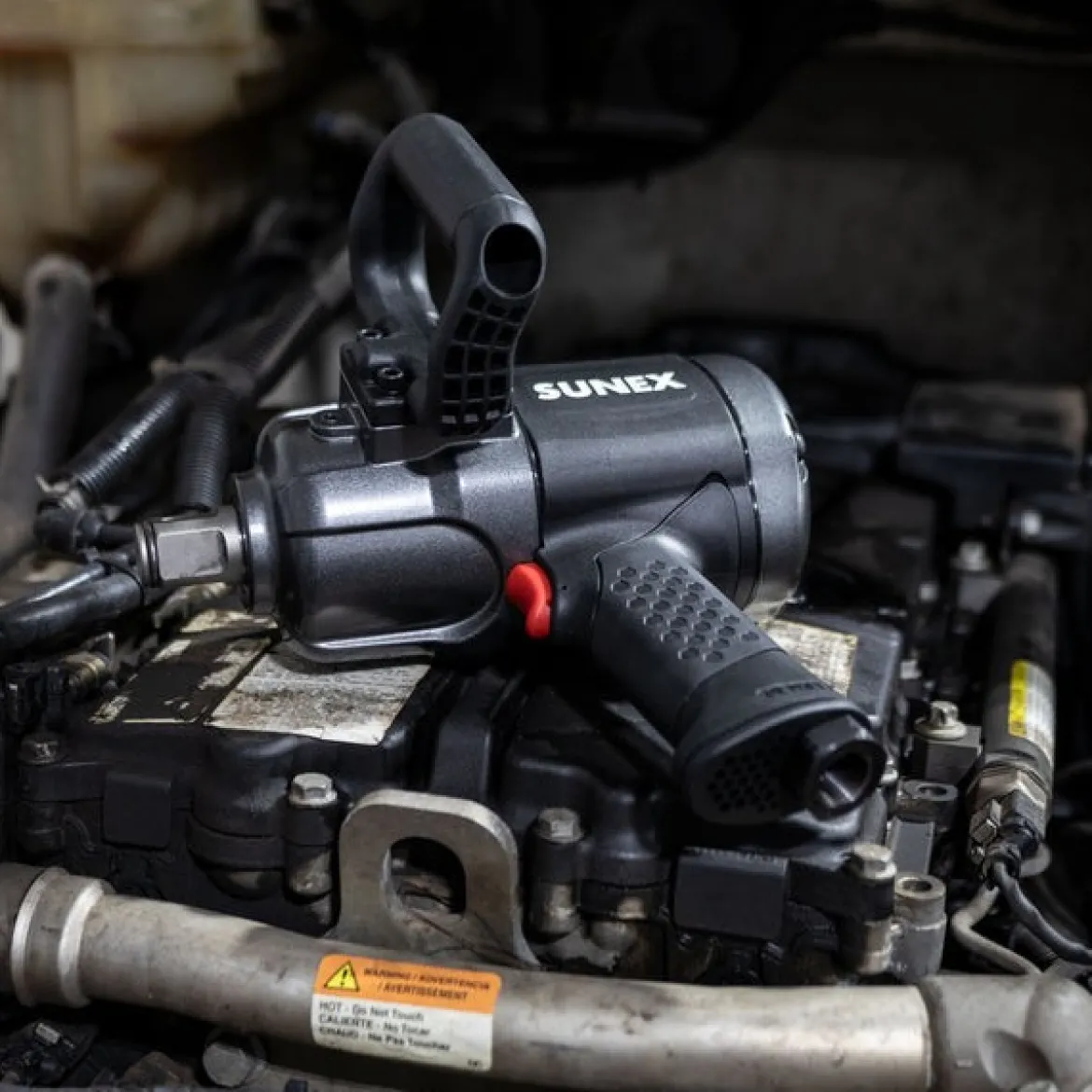

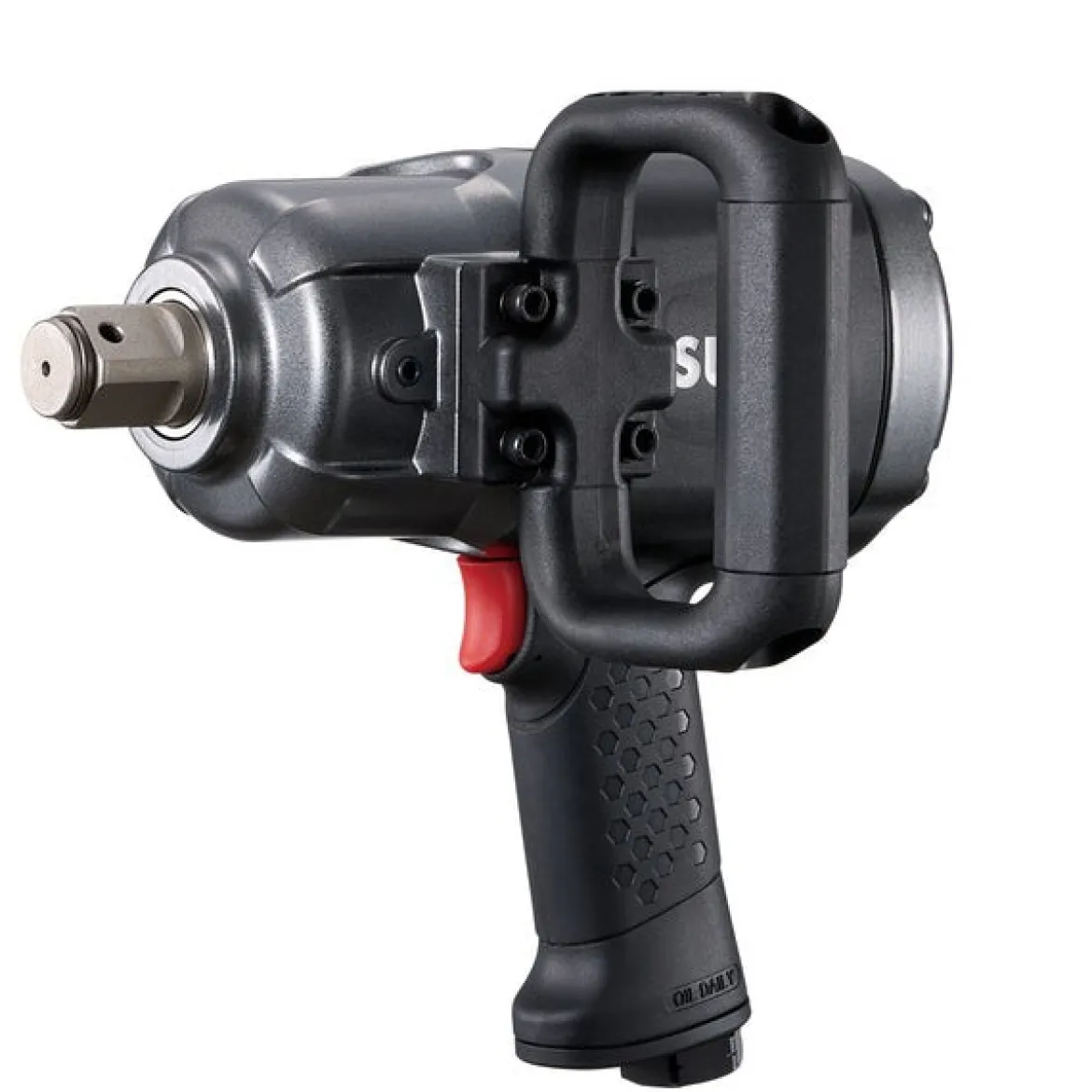

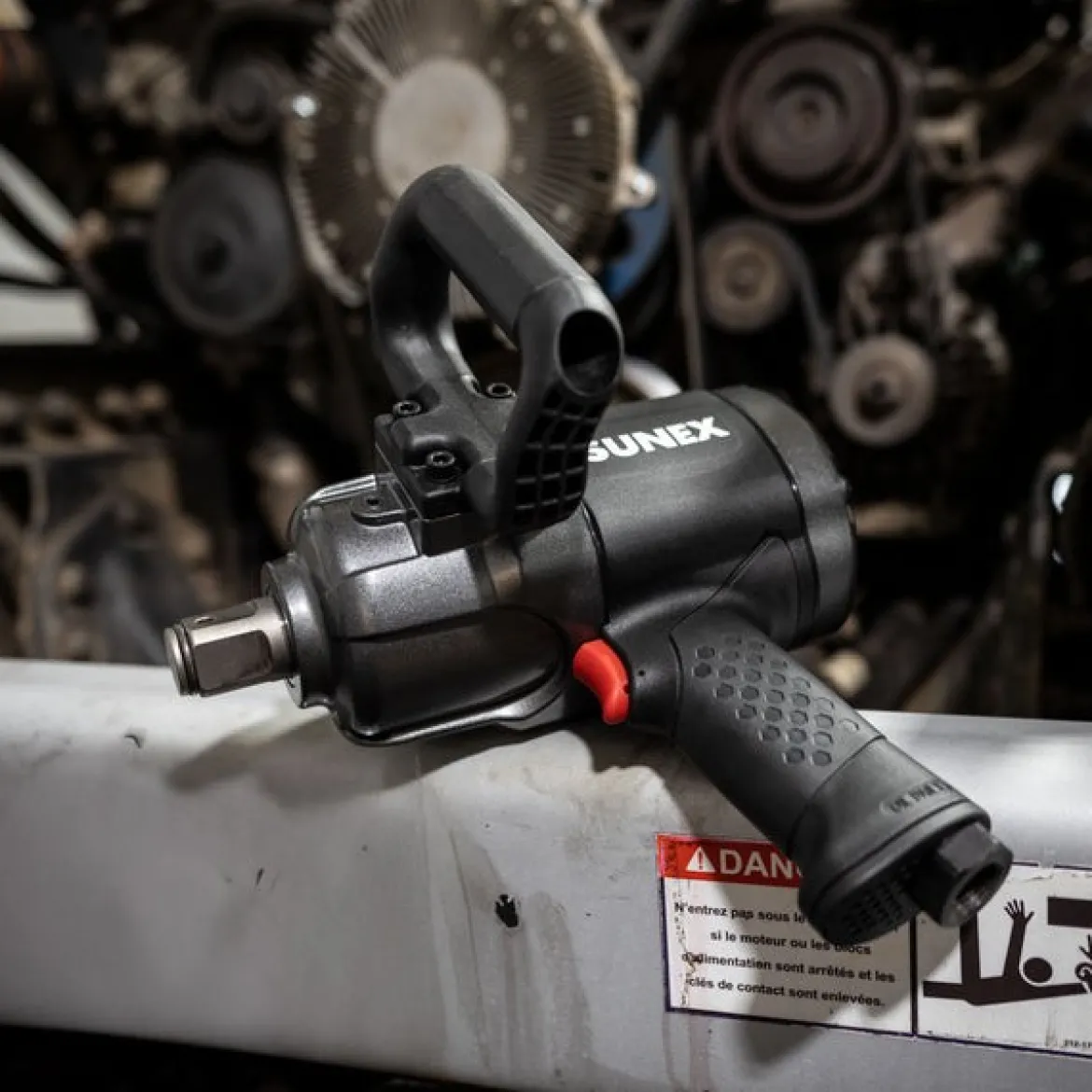

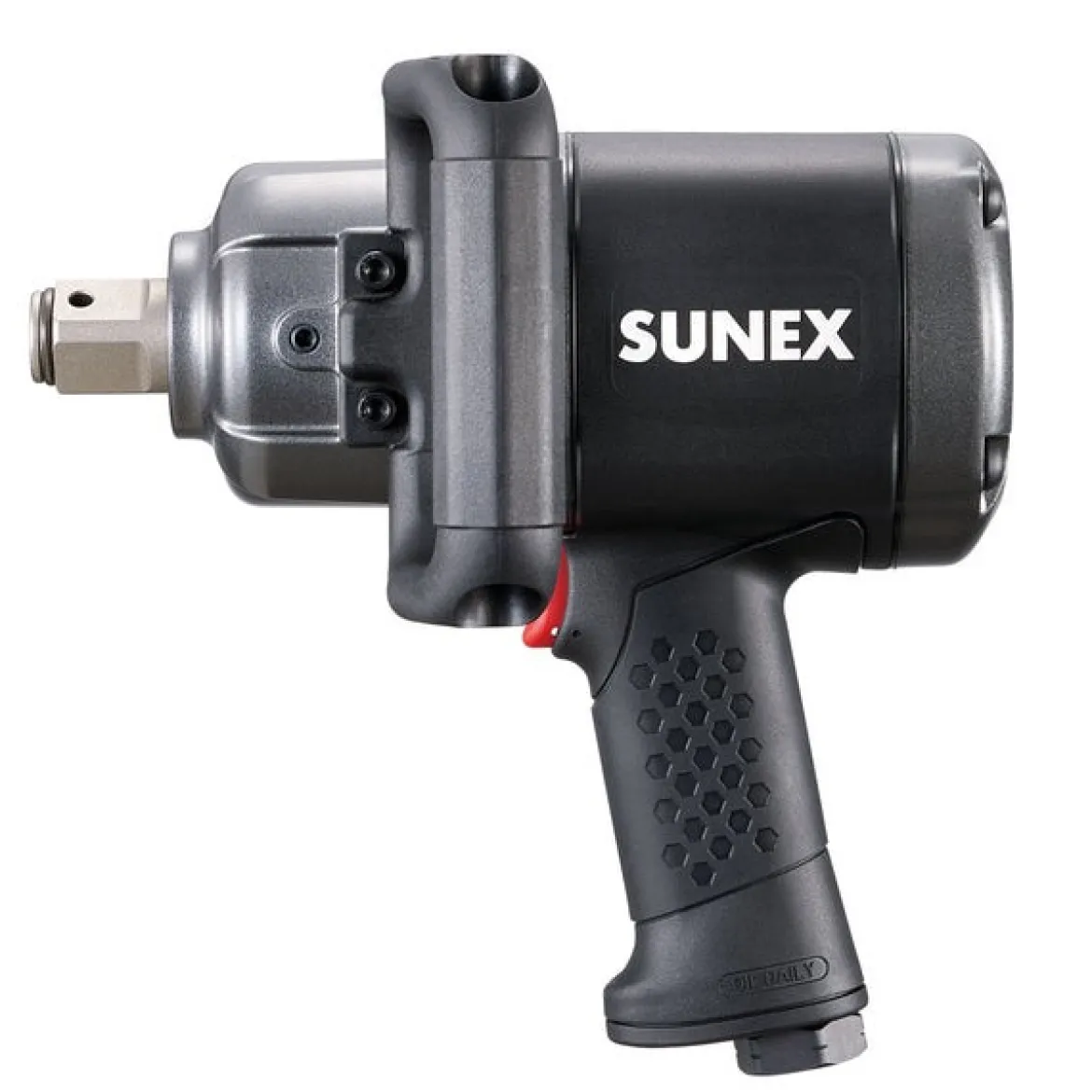

Sunex Tools 1″ Drive Magnesium Composite Impact Wrench (SX0102)

Sunex Tools 1″ Drive Magnesium Composite Impact Wrench (SX0102) is a professional-grade pneumatic tool engineered for high-torque requirements in the automotive, agricultural, and industrial sectors. This tool is specifically designed to address the weight challenges associated with 1″ drive wrenches, utilizing a magnesium alloy housing that results in a total weight of only 12.7 lbs. This construction provides a power-to-weight ratio of 213 ft-lb/lb, allowing for high output without the physical strain typically associated with heavy-duty air tools.

Key Features and Benefits:

• High Torque Output: Provides 2,000 ft-lbs of working torque and 2,700 ft-lbs of breakaway torque, which is sufficient for removing rusted or over-tightened fasteners on heavy machinery.
• Lightweight Magnesium Housing: The use of magnesium alloy reduces the tool’s weight to 12.7 lbs, helping to prevent user fatigue during long shifts and improving the tool’s ability to dissipate heat.
• Advanced Rotor Design: The motor contains 7 spring-loaded rotor blades that ensure the tool starts instantly and maintains a smooth, efficient flow of power during operation.
• Chemical and Impact Resistant Handle: Constructed with 40% glass-filled nylon, a material selected for its ability to resist damage from drops and common shop chemicals or solvents.

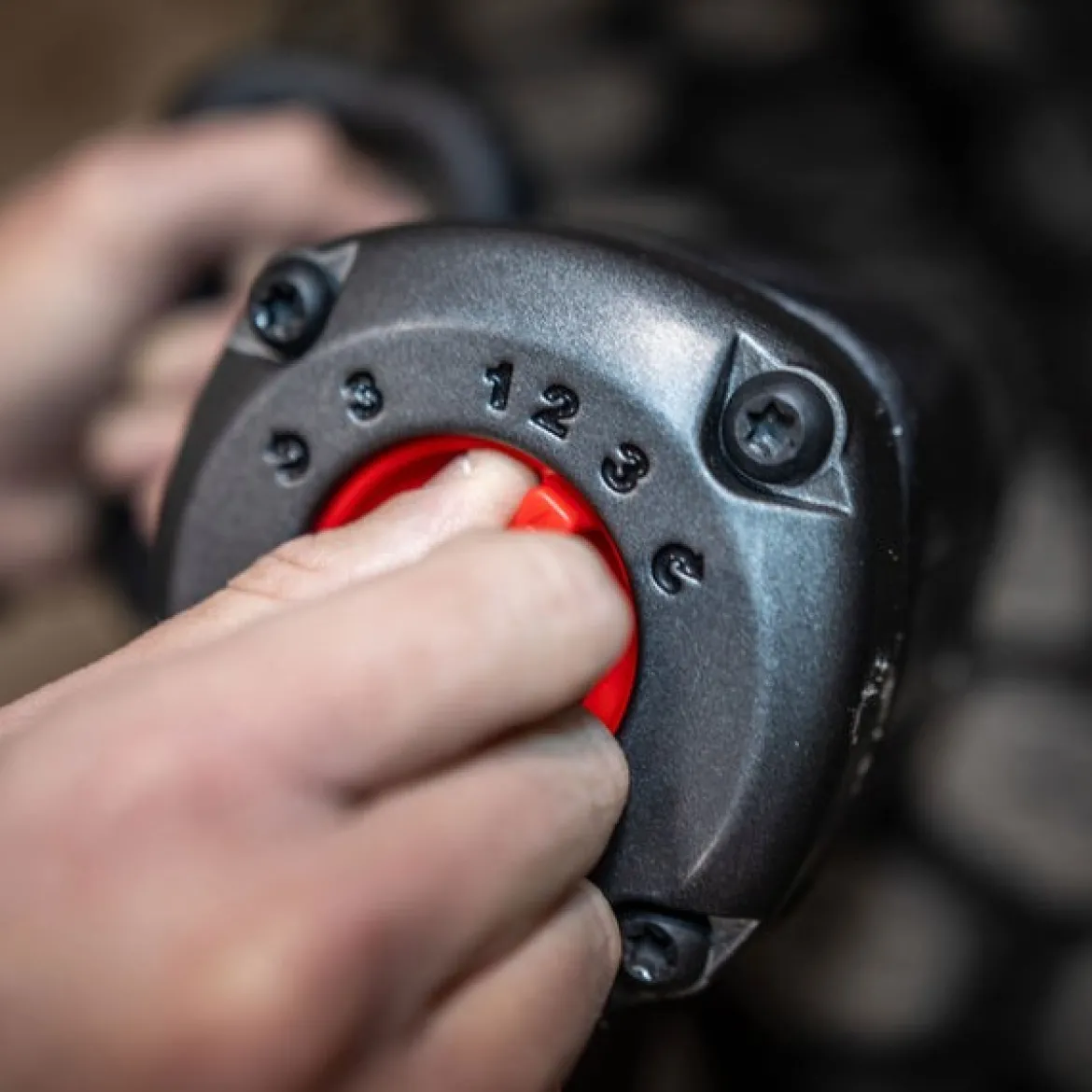

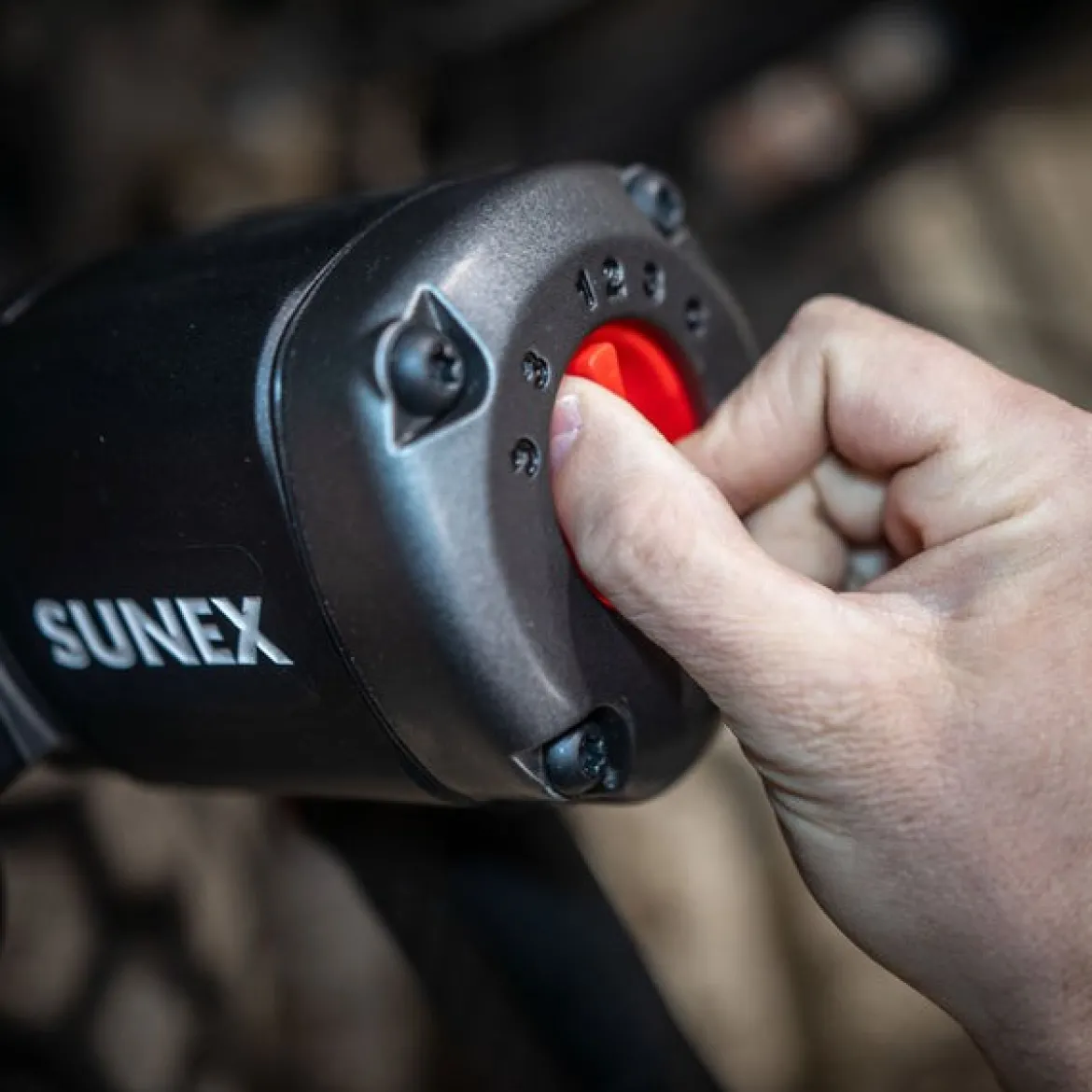

• Simplified Control: A one-hand switch regulator allows the operator to change torque settings and direction without needing to use both hands, increasing efficiency on the job.

Specifications:

• Drive Size: 1″
• Breakaway Torque: 2,700 ft-lbs
• Working Torque: 2,000 ft-lbs
• Free Speed: 6,000 RPM
• Weight: 12.7 lbs
• Sound Level: 103.3 dBA
• Housing Material: Magnesium Alloy
• Handle Material: 40% Glass-filled Nylon
• Power to Weight Ratio: 213 ft-lb/lb
• Included in Box: Sunex SX0102 1″ Drive Impact Wrench, Product Manual

How to Use:

• Air Supply Connection: Ensure your air compressor is set to the required PSI. Attach a 1/2″ NPT air hose to the rotating air inlet of the SX0102.
• Lubrication: Add 2Ð3 drops of air tool oil directly into the air inlet before use to lubricate the 7 spring-loaded rotor blades.
• Socket Attachment: Securely fit a 1″ drive impact-rated socket onto the anvil. Ensure the retaining ring or pin is properly engaged.
• Torque Selection: Use the one-hand switch regulator to select the appropriate torque setting for your specific task (Forward for tightening, Reverse for removal).

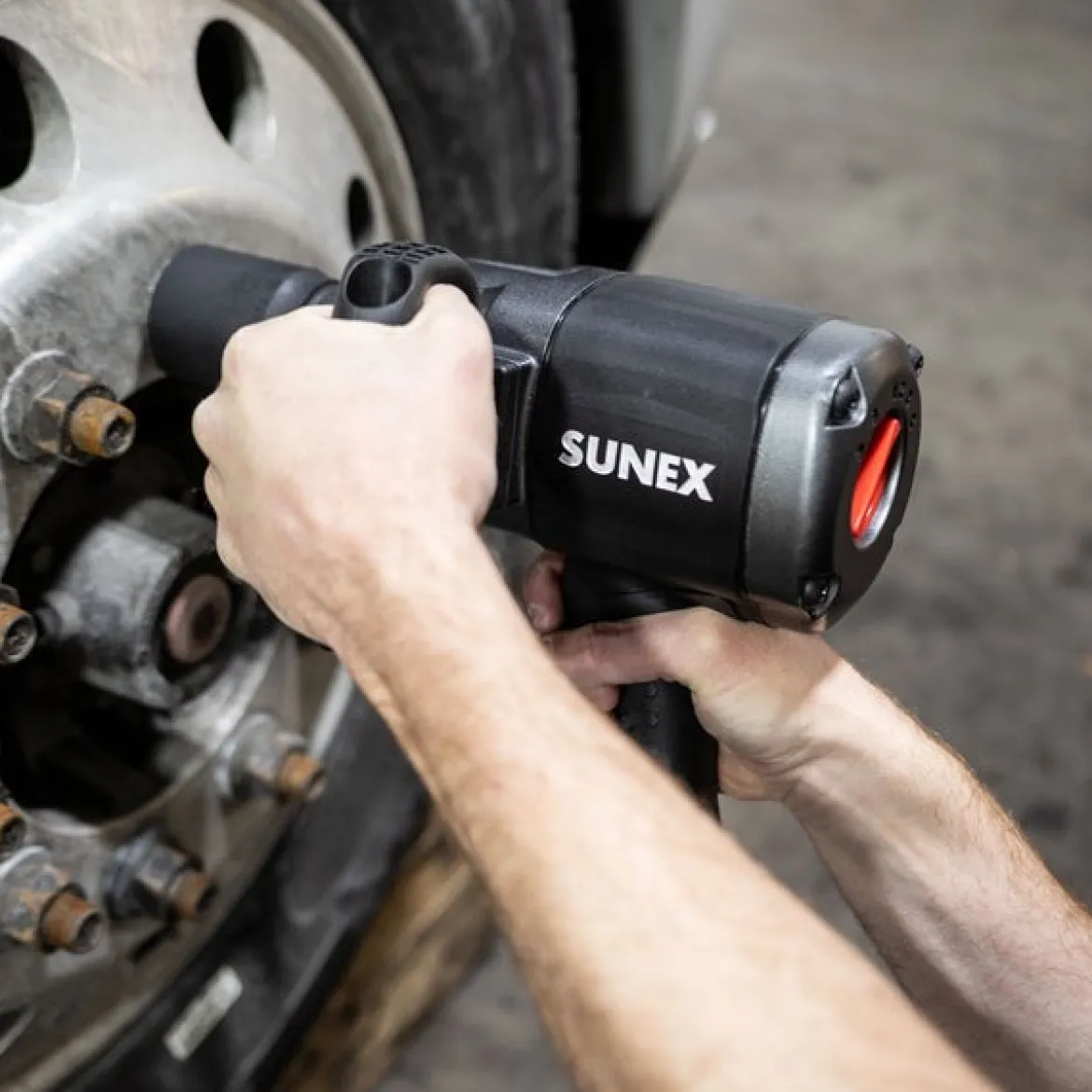

• Operation: Place the socket firmly on the fastener. Grip the ergonomic handle and the side handle firmly, then depress the trigger to begin impacting.
• Storage: After use, disconnect the air line and wipe the magnesium housing clean of any debris or oils before storing.

Benefits of Using Sunex Tools 1″ Drive Magnesium Composite Impact Wrench (SX0102):

• Enhanced Productivity: The SX0102 significantly improves shop productivity by providing the power of a large-scale impact wrench at a fraction of the weight.
• Reduced Fatigue: Magnesium alloy construction ensures the tool is light enough for extended use without causing shoulder and arm fatigue.
• High Power-to-Weight Ratio: Users do not have to sacrifice performance for comfort, making it ideal for extended use.
• Consistent Torque Application: The 7-blade rotor system provides a more consistent torque application, reducing wear on internal components for a longer tool service life.

Features:

• Magnesium Alloy Clutch Housing: Provides a lightweight chassis that naturally resists corrosion and manages internal heat.
• 7-Blade Motor Configuration: Utilizes spring-loaded blades to maximize air pressure efficiency and provide a smoother mechanical cycle.
• 40% Glass-Filled Nylon Grip: Ensures the handle remains structurally sound even when exposed to high-impact drops or harsh industrial cleaners.
• Rotating Air Inlet: Allows the air hose to move freely, preventing tangling and allowing for better access to fasteners in restricted areas.
• One-Hand Regulator: Features an integrated control for torque and direction, allowing for adjustments while the tool is in position.
• Integrated Exhaust System: Designed to manage airflow and maintain a sound level of 103.3 dBA for a more controlled work environment.
